2025/07/07
An inductor is a fundamental passive electronic component that stores energy in a magnetic field when electric current flows through it. Also known as a coil, choke, or reactor, inductors play a crucial role in countless electronic circuits and applications. Understanding inductors is essential for anyone working with electronics, from hobbyists to professional engineers.
The basic principle behind an inductor involves electromagnetic induction, a phenomenon discovered by Michael Faraday in the 1830s. When current flows through a conductor, it creates a magnetic field around it. In an inductor, this effect is amplified by winding the conductor into a coil, concentrating the magnetic field and increasing the component's ability to store magnetic energy.
The fundamental structure of an inductor consists of several key elements:
Wire or Conductor: The primary component is typically copper wire, chosen for its excellent electrical conductivity and relatively low cost. The wire is usually insulated with enamel, plastic, or other materials to prevent short circuits between adjacent turns.
Core Material: Many inductors include a core made from various materials to enhance their magnetic properties. Common core materials include:
Physical Form Factor: Inductors come in numerous shapes and sizes, from tiny surface-mount components smaller than a grain of rice to large power inductors weighing several kilograms.
The manufacturing process significantly affects an inductor's performance characteristics. Wire gauge determines current-carrying capacity, while the number of turns directly influences inductance value. The winding technique, whether machine-wound or hand-wound, affects precision and consistency.
The operation of an inductor relies on Faraday's law of electromagnetic induction, which states that a changing magnetic field induces an electromotive force (EMF) in a conductor. When current flows through an inductor's coil, it creates a magnetic field. Any change in this current causes the magnetic field to change, which in turn induces a voltage that opposes the change in current.
This opposition to current change is called inductance, measured in henries (H). The relationship is described by Lenz's law, which states that the induced EMF always opposes the change that created it. This fundamental principle explains why inductors resist changes in current flow.
The basic equation governing inductor behavior is:
V = L × (dI/dt)
Where:
This equation reveals that the voltage across an inductor is proportional to how quickly the current through it changes. If current is constant, the voltage across an ideal inductor is zero.
Air core inductors use air as their core material, offering several advantages including no core losses, linear behavior across a wide range of currents, and no saturation effects. These characteristics make them ideal for high-frequency applications such as radio frequency (RF) circuits, where core losses would significantly impact performance.
However, air core inductors typically have lower inductance values compared to those with magnetic cores, requiring more turns or larger physical dimensions to achieve the same inductance.
Iron core inductors provide much higher inductance values due to iron's high magnetic permeability. The iron core concentrates the magnetic field, allowing for more compact designs with higher inductance values. These inductors are commonly used in power supplies, transformers, and low-frequency applications.
The main disadvantages include core losses at higher frequencies, potential saturation at high current levels, and non-linear behavior that can introduce distortion in some applications.
Ferrite cores offer an excellent compromise between performance and cost for many applications. Ferrite materials have high magnetic permeability while maintaining relatively low losses at moderate to high frequencies. This makes them popular in switching power supplies, EMI filters, and various consumer electronics.
Different ferrite compositions are optimized for specific frequency ranges, allowing designers to select the most appropriate material for their application.

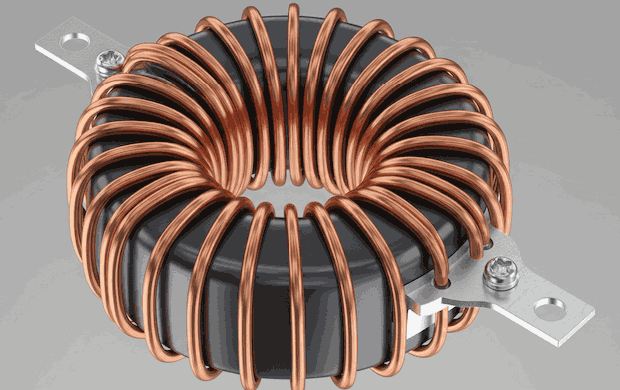

Toroidal inductors feature a doughnut-shaped core with wire wound around the entire circumference. This configuration provides excellent magnetic field containment, reducing electromagnetic interference (EMI) and improving efficiency. The closed magnetic path also results in higher inductance per turn compared to other configurations.
The inductance value, measured in henries, represents the inductor's ability to store magnetic energy. Practical inductors range from nanohenries (nH) for high-frequency applications to several henries for power applications. The inductance depends on several factors:
The quality factor represents the ratio of energy stored to energy dissipated per cycle. Higher Q values indicate more efficient inductors with lower losses. Q factor varies with frequency and is crucial in resonant circuits and filters where efficiency and selectivity are important.
Every inductor has a self-resonant frequency where its inductive reactance equals its parasitic capacitive reactance. Above this frequency, the component behaves more like a capacitor than an inductor. Understanding this limitation is crucial for high-frequency circuit design.
Inductors have maximum current ratings determined by several factors including wire gauge, core saturation, and thermal considerations. Exceeding these ratings can lead to performance degradation, overheating, or component failure.
One of the most common applications for inductors is in power supply circuits, where they work alongside capacitors to filter out unwanted AC components from DC power supplies. In switching power supplies, inductors store energy during one part of the switching cycle and release it during another, enabling efficient voltage conversion.
Inductors serve as effective filters for electromagnetic interference (EMI) and radio frequency interference (RFI). Common mode chokes, which are specialized inductors, help reduce noise that appears equally on multiple conductors, improving overall system performance and regulatory compliance.
In combination with capacitors, inductors form LC oscillator circuits that generate specific frequencies. These circuits are fundamental to radio transmitters, receivers, and various timing applications. The resonant frequency is determined by the inductance and capacitance values according to the formula:
f = 1 / (2π√(LC))
Large inductors are essential in motor control circuits, where they help smooth current flow and reduce torque ripple. In power electronics applications, inductors enable efficient energy transfer and voltage regulation in various converter topologies.
Selecting the appropriate inductor requires careful consideration of the specific application requirements. Key factors include operating frequency range, current levels, voltage ratings, physical size constraints, and environmental conditions.
For high-frequency applications, parasitic effects become increasingly important, requiring careful attention to self-resonant frequency and quality factor. Power applications prioritize current handling capability and core saturation characteristics.
Inductors generate heat through various loss mechanisms including wire resistance (I²R losses), core losses, and eddy current losses. Proper thermal management ensures reliable operation and prevents performance degradation. This may involve selecting appropriate wire gauges, core materials, or implementing additional cooling measures.
Commercial considerations often influence inductor selection, balancing performance requirements with cost constraints and component availability. Standard values and package sizes typically offer better pricing and shorter lead times compared to custom solutions.
Accurate inductance measurement requires specialized equipment such as LCR meters or impedance analyzers. These instruments apply AC signals at specific frequencies and measure the resulting impedance to calculate inductance values.
For basic testing, simple multimeters with inductance measurement capability can provide adequate accuracy for many applications, though they typically operate at a single test frequency.
Quality factor measurement requires more sophisticated equipment capable of measuring both the reactive and resistive components of impedance. This information helps evaluate inductor efficiency and suitability for specific applications.
Ongoing research into new magnetic materials promises improved performance characteristics, including higher permeability, lower losses, and better temperature stability. Nanocrystalline and amorphous materials show particular promise for high-frequency applications.
The continuing trend toward smaller electronic devices drives demand for increasingly compact inductors without sacrificing performance. Advanced manufacturing techniques and materials enable higher inductance density and improved integration with other components.
Future developments may include inductors with integrated sensing capabilities, allowing real-time monitoring of current, temperature, and other parameters. This intelligence could enable adaptive circuit behavior and improved system reliability.
Inductors represent one of the fundamental building blocks of modern electronics, enabling everything from simple filters to complex power conversion systems. Understanding their principles, characteristics, and applications is essential for anyone working with electronic circuits.
As technology continues to advance, inductors will undoubtedly evolve to meet new challenges in efficiency, miniaturization, and performance. Whether you're designing a simple hobby project or a complex industrial system, a solid understanding of inductors will serve as a valuable foundation for successful circuit design.
The key to effective inductor utilization lies in matching component characteristics to application requirements, considering factors such as frequency response, current handling, physical constraints, and cost considerations. With this knowledge, engineers and hobbyists alike can harness the power of electromagnetic induction to create innovative and efficient electronic solutions.
