Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: AIMC-0402
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 AIMC-0402-15NJ-T Abracon | 15 nH | 300 mA | 600mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-22NJ-T Abracon | 22 nH | 300 mA | 850mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-18NJ-T Abracon | 18 nH | 300 mA | 800mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-0402-56NJ-T Abracon | 56 nH | 200 mA | 1.8Ohm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-0402-2N2S-T Abracon | 2.2 nH | 300 mA | 200mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-0402-8N2S-T Abracon | 8.2 nH | 300 mA | 400mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-39NJ-T Abracon | 39 nH | 200 mA | 1.3Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-12NJ-T Abracon | 12 nH | 300 mA | 500mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-3N9S-T Abracon | 3.9 nH | 300 mA | 210mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-47NJ-T Abracon | 47 nH | 200 mA | 1.5Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-R10J-T Abracon | 100 nH | 150 mA | 2.6Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-33NJ-T Abracon | 33 nH | 200 mA | 1Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-10NJ-T Abracon | 10 nH | 300 mA | 420mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-5N6C-T Abracon | 5.6 nH | 300 mA | 230mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-8N2C-T Abracon | 8.2 nH | 300 mA | 350mOhm | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-1N5C-T Abracon | 1.5 nH | 400 mA | 100mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-4N7C-T Abracon | 4.7 nH | 300 mA | 210mOhm | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-1N0C-T Abracon | 1 nH | 400 mA | 80mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-1N8C-T Abracon | 1.8 nH | 400 mA | 120mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-2N2C-T Abracon | 2.2 nH | 400 mA | 120mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-3N9C-T Abracon | 3.9 nH | 400 mA | 210mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-1N0S-T Abracon | 1 nH | 400 mA | 100mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |

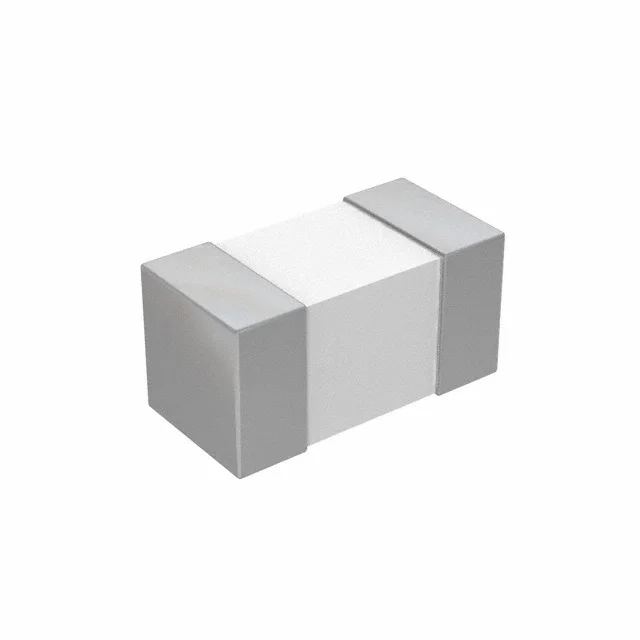

 AIMC-0402-1N5S-T Abracon | 1.5 nH | 300 mA | 100mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-4N7S-T Abracon | 4.7 nH | 300 mA | 210mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 AIMC-0402-27NJ-T Abracon | 27 nH | 300 mA | 1Ohm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) |
