Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: AIMC-Q0402
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 AIMC-Q0402-15NG-T Abracon | 15 nH | 400 mA | 550mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-2N7B-T Abracon | 2.7 nH | 800 mA | 160mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-27NG-T Abracon | 27 nH | 300 mA | 800mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-8N2G-T Abracon | 8.2 nH | 500 mA | 280mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-6N8G-T Abracon | 6.8 nH | 600 mA | 250mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-10NG-T Abracon | 10 nH | 500 mA | 300mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-18NG-T Abracon | 18 nH | 300 mA | 650mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-5N6B-T Abracon | 5.6 nH | 600 mA | 230mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-3N3B-T Abracon | 3.3 nH | 800 mA | 160mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-1N8B-T Abracon | 1.8 nH | 900 mA | 120mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-1N5B-T Abracon | 1.5 nH | 1 A | 100mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-4N7B-T Abracon | 4.7 nH | 700 mA | 20mOhm Max | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0402 (1005 Metric) | |
 AIMC-Q0402-2N2B-T Abracon | 2.2 nH | 900 mA | 130mOhm Max | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0402 (1005 Metric) | |
 AIMC-Q0402-1N3C-T Abracon | 1.3 nH | 1 A | 90mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-1N6B-T Abracon | 1.6 nH | 1 A | 100mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-6N8H-T Abracon | 6.8 nH | 600 mA | 250mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-56NJ-T Abracon | 56 nH | 200 mA | 1.1Ohm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-2N4C-T Abracon | 2.4 nH | 800 mA | 130mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-2N2C-T Abracon | 2.2 nH | 900 mA | 130mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-1N2S-T Abracon | 1.2 nH | 1 A | 90mOhm Max | 0402 (1005 Metric) | Surface Mount | |

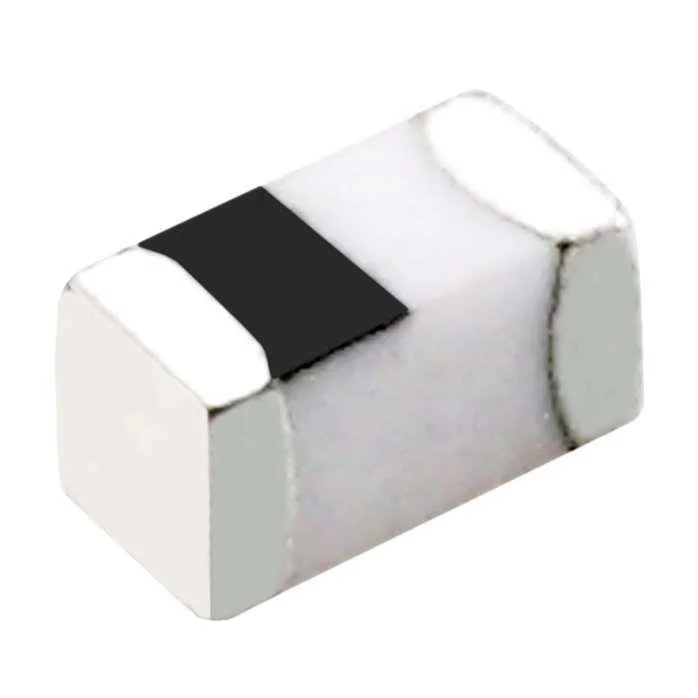

 AIMC-Q0402-39NJ-T Abracon | 39 nH | 200 mA | 1Ohm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-27NJ-T Abracon | 27 nH | 300 mA | 800mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-3N9S-T Abracon | 3.9 nH | 700 mA | 200mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-5N6C-T Abracon | 5.6 nH | 600 mA | 230mOhm Max | 0402 (1005 Metric) | Surface Mount | |
 AIMC-Q0402-3N0S-T Abracon | 3 nH | 800 mA | 160mOhm Max | 0402 (1005 Metric) | Surface Mount |
