Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: AISC-1008HQ
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 AISC-1008HQ-33NJ-T Abracon | 33 nH | 1.3 A | 90mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |

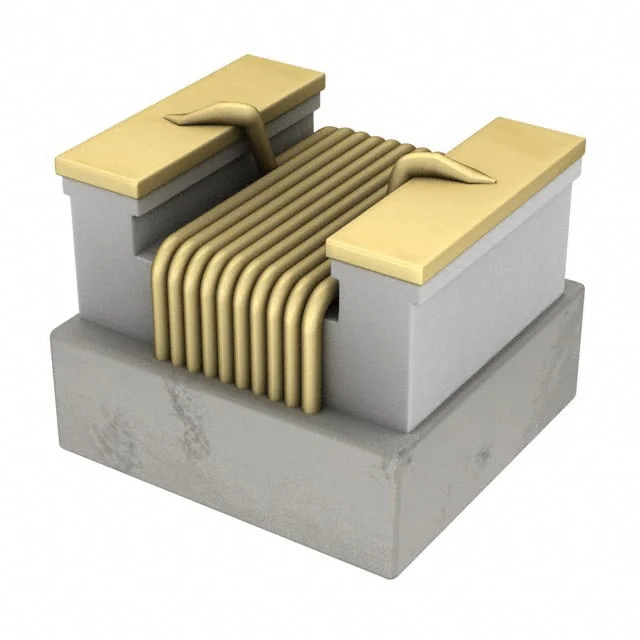

 AISC-1008HQ-R10J-T Abracon | 100 nH | 1 A | 160mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
 AISC-1008HQ-12NJ-T Abracon | 12 nH | 1.5 A | 60mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | Nonstandard | |
 AISC-1008HQ-10NJ-T Abracon | 10 nH | 1.3 A | 80mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-68NG-T Abracon | 68 nH | 1 A | 130mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-R10G-T Abracon | 100 nH | 1 A | 160mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-82NG-T Abracon | 82 nH | 1 A | 160mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-82NK-T Abracon | 82 nH | 1 A | 160mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-68NK Abracon | 68 nH | 1 A | 130mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-R10K-T Abracon | 100 nH | 1 A | 160mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-56NK-T Abracon | 56 nH | 1.2 A | 120mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-7N8K-T Abracon | 7.8 nH | 1.6 A | 50mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-39NK-T Abracon | 39 nH | 1.3 A | 90mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-33NG-T Abracon | 33 nH | 1.3 A | 90mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-10NK-T Abracon | 10 nH | 1.3 A | 80mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-12NG-T Abracon | 12 nH | 1.5 A | 60mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-39NG-T Abracon | 39 nH | 1.3 A | 90mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-47NK-T Abracon | 47 nH | 1.2 A | 120mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-12NK-T Abracon | 12 nH | 1.5 A | 60mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-22NK-T Abracon | 22 nH | 1.4 A | 70mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-47NG-T Abracon | 47 nH | 1.2 A | 120mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-56NG-T Abracon | 56 nH | 1.2 A | 120mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-18NG-T Abracon | 18 nH | 1.4 A | 80mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-22NG-T Abracon | 22 nH | 1.4 A | 70mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) | |
AISC-1008HQ-33NK-T Abracon | 33 nH | 1.3 A | 90mOhm Max | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 1008 (2520 Metric) |
