Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: ASPI-2410
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 ASPI-2410-2R2M-T2 Abracon | 2.2 µH | 1.4 A | 137mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-1R5M-T2 Abracon | 1.5 µH | 1.55 A | 108mOhm Max | - | Surface Mount | |
 ASPI-2410-1R0M-T2 Abracon | 1 µH | 1.8 A | 80mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-R68M-T2 Abracon | 680 nH | 2.1 A | 61mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
ASPI-2410-R33M-T2 Abracon | 330 nH | 2.4 A | 43mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
ASPI-2410-R47M-T2 Abracon | 470 nH | 2.4 A | 44mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
ASPI-2410-330M-T2 Abracon | 33 µH | 400 mA | 1.548Ohm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
ASPI-2410-R24M-T2 Abracon | 240 nH | 2.75 A | 34mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-R68N-T2 Abracon | 680 nH | 2.1 A | 61mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-1R0N-T2 Abracon | 1 µH | 1.8 A | 80mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-3R3M-T2 Abracon | 3.3 µH | 1.1 A | 228mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-6R8M-T2 Abracon | 6.8 µH | 760 mA | 451mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-100M-T2 Abracon | 10 µH | 670 mA | 584mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |

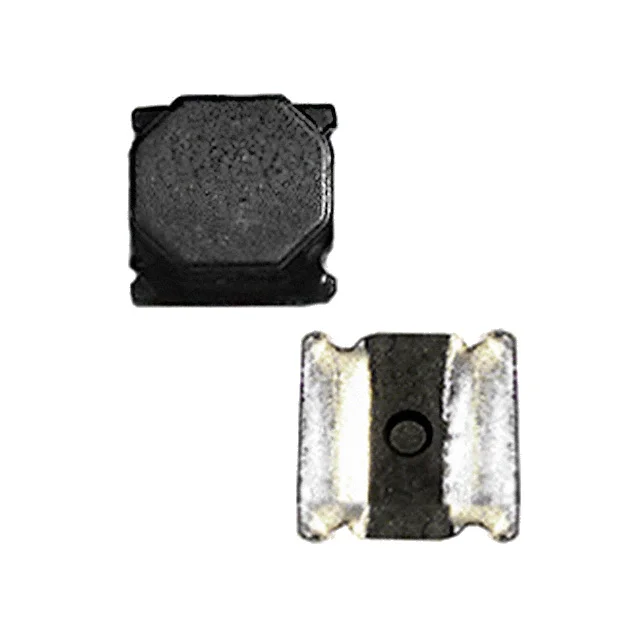

 ASPI-2410-150M-T2 Abracon | 15 µH | 500 mA | 954mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-220M-T2 Abracon | 22 µH | 400 mA | 1.548Ohm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard | |
 ASPI-2410-4R7M-T2 Abracon | 4.7 µH | 910 mA | 323mOhm Max | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Nonstandard |
