Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.

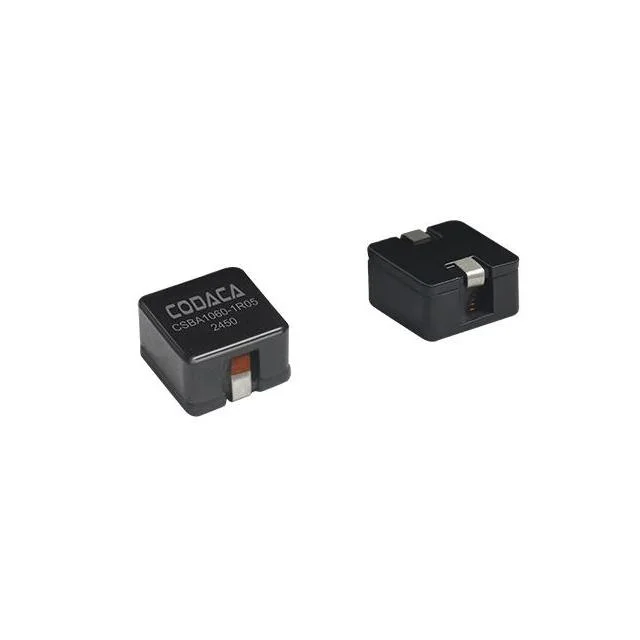

Serie: CSBA1060
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 CSBA1060-2R9M CODACA | 2.9 µH | 14 A | 15.1mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-9R5M CODACA | 9.5 µH | 7 A | 18.7mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-120M CODACA | 12.5 µH | 6 A | 24mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-4R7M CODACA | 4.7 µH | 11 A | 8.15mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-1R6M CODACA | 1.6 µH | 19 A | 2.85mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-1R05M CODACA | 1.05 µH | 22 A | 1.9mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-5R6M CODACA | 5.6 µH | 9.8 A | 10.6mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-2R2M CODACA | 2.2 µH | 16 A | 4.2mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-R37M CODACA | 0.37 µH | 30 A | 0.77mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-180M CODACA | 18 µH | 5 A | 36.3mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-3R8M CODACA | 3.8 µH | 12 A | 6.7mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD | |
 CSBA1060-6R8M CODACA | 6.8 µH | 9 A | 12.5mOhm Max | 0.441 L x 0.402 W (11.20mm x 10.20mm) | 2-SMD |
