系列：ASPI-7318
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 ASPI-7318-2R2M-T Abracon | 2.2 µH | 8 A | 20mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
 ASPI-7318-R33M-T Abracon | 330 nH | 20 A | 3.9mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
 ASPI-7318-8R2M-T Abracon | 8.2 µH | 4 A | 68mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
 ASPI-7318-1R5M-T Abracon | 1.5 µH | 9 A | 15mOhm Max | - | Surface Mount | |
 ASPI-7318-4R7M-T Abracon | 4.7 µH | 5 A | 40mOhm Max | - | Surface Mount | |
 ASPI-7318-100M-T Abracon | 10 µH | 3 A | 105mOhm Max | - | Surface Mount | |
 ASPI-7318-3R3M-T Abracon | 3.3 µH | 6 A | 30mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |

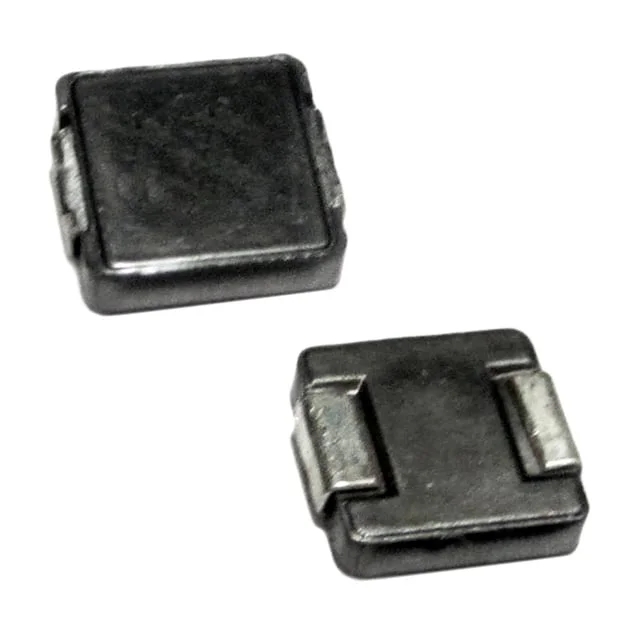

 ASPI-7318-R10N-T Abracon | 100 nH | 30 A | 1.7mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
 ASPI-7318-1R0M-T Abracon | 1 µH | 11 A | 10mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
 ASPI-7318-2R5M-T Abracon | 2.5 µH | 8 A | 22mOhm Max | - | Surface Mount | |
 ASPI-7318-R68M-T Abracon | 680 nH | 15.5 A | 5.5mOhm Max | - | Surface Mount | |
 ASPI-7318-R82M-T Abracon | 820 nH | 13 A | 8mOhm Max | - | Surface Mount | |
 ASPI-7318-R10M-T Abracon | 100 nH | 30 A | 1.7mOhm Max | - | Surface Mount | |
 ASPI-7318-R47M-T Abracon | 470 nH | 17.5 A | 4.2mOhm Max | - | Surface Mount | |
 ASPI-7318-6R8M-T Abracon | 6.8 µH | 4.5 A | 60mOhm Max | - | Surface Mount |
