电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
系列：CTSLF0745TF
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 CTSLF0745TF-470M Central Technologies | 47 µH | 920 mA | 125mOhm | 0.276" L x 0.276" W (7.00mm x 7.00mm) | Nonstandard | |
 CTSLF0745TF-150M Central Technologies | 15 µH | 1.53 A | 52mOhm | 0.276 L x 0.276 W (7.00mm x 7.00mm) | Nonstandard | |
 CTSLF0745TF-681M Central Technologies | 680 µH | 270 mA | 2.08Ohm | 0.276 L x 0.276 W (7.00mm x 7.00mm) | Nonstandard | |
 CTSLF0745TF-101M Central Technologies | 100 µH | 650 mA | 250mOhm | 0.276 L x 0.276 W (7.00mm x 7.00mm) | Nonstandard | |

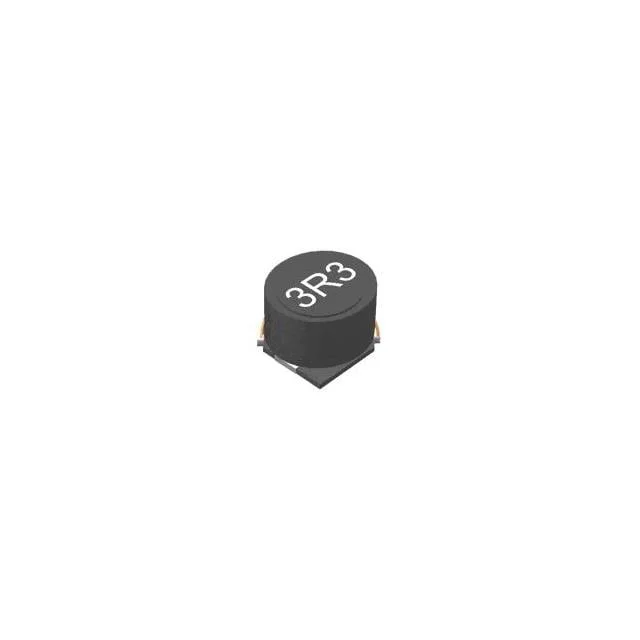

 CTSLF0745TF-680M Central Technologies | 68 µH | 770 mA | 200mOhm | 0.276 L x 0.276 W (7.00mm x 7.00mm) | Nonstandard | |
 CTSLF0745TF-3R3M Central Technologies | 3.3 µH | 2.3 A | 20mOhm | 0.276 L x 0.276 W (7.00mm x 7.00mm) | Nonstandard | |
 CTSLF0745TF-331M Central Technologies | 330 µH | 370 mA | 1.1Ohm | 0.276 L x 0.276 W (7.00mm x 7.00mm) | Nonstandard |
