系列：DC780R
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 DC780R-122L Delevan | 1.2 µH | 11.4 A | 3mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-182L Delevan | 1.8 µH | 11.4 A | 3mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-392L Delevan | 3.9 µH | 11.4 A | 5mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |

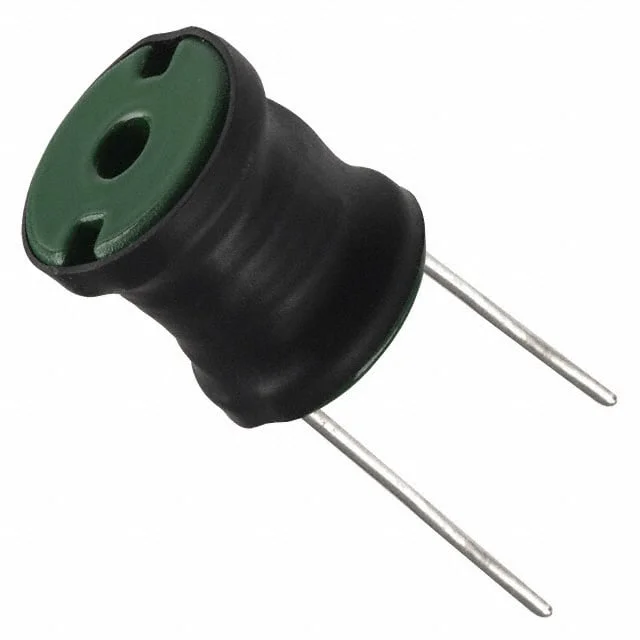

 DC780R-472L Delevan | 4.7 µH | 11.4 A | 5mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-562L Delevan | 5.6 µH | 11.4 A | 6mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-682L Delevan | 6.8 µH | 11.4 A | 7mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-152L Delevan | 1.5 µH | 11.4 A | 3mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-222L Delevan | 2.2 µH | 11.4 A | 4mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-272L Delevan | 2.7 µH | 11.4 A | 5mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-123K Delevan | 12 µH | 11.4 A | 9mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-223K Delevan | 22 µH | 7.2 A | 19mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-563K Delevan | 56 µH | 5.5 A | 39mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-564K Delevan | 560 µH | 1.6 A | 388mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-124K Delevan | 120 µH | 4 A | 90mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-125K Delevan | 1.2 mH | 800 mA | 1.14Ohm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-155K Delevan | 1.5 mH | 800 mA | 1.26Ohm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-185K Delevan | 1.8 mH | 800 mA | 1.39Ohm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-273K Delevan | 27 µH | 5.5 A | 26mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-274K Delevan | 270 µH | 2 A | 213mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-393K Delevan | 39 µH | 5.5 A | 30mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-394K Delevan | 390 µH | 1.6 A | 320mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-105K Delevan | 1 mH | 1 A | 818mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-153K Delevan | 15 µH | 9 A | 13mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-183K Delevan | 18 µH | 7.2 A | 18mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder | |
 DC780R-473K Delevan | 47 µH | 5.5 A | 35mOhm Max | 0.772" Dia (19.60mm) | Radial, Vertical Cylinder |
