How Do Inductors Work? Understanding the Core Principles

Ever Stared at a Circuit Board and Wondered About Those Coil Things?

You know what? I get this question a lot from folks who are just getting into electronics. They'll point at those little coiled components on a circuit board and ask, "What the heck do those spring-looking things actually DO?" Well, my friend, you're looking at inductors - and they're way more fascinating than they appear!

Today, we're going to dive deep into how these little electromagnetic wizards work. By the time you finish reading this, you'll not only understand inductors but probably start seeing them everywhere (trust me, once you know what to look for, you can't unsee them).

The Magic Behind the Coil: Basic Working Principle

Let me start with a story that'll make this crystal clear. Imagine you're riding a bicycle down a hill. You're cruising along nicely when suddenly you need to stop. What happens? You don't just instantly freeze - your momentum carries you forward, and you gradually slow down.

That's exactly how inductors work with electrical current! They have what we call "electrical momentum" or more technically, electromagnetic inertia.

The Electromagnetic Field Dance

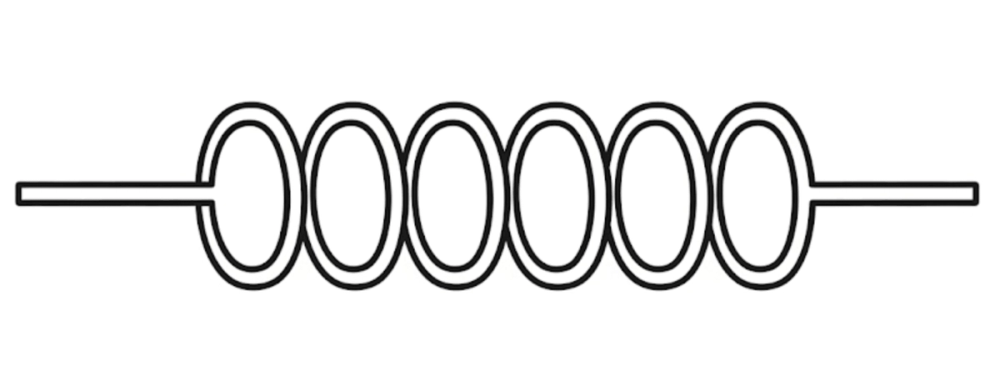

Here's where it gets really cool. When electric current flows through that coiled wire (the inductor), something magical happens - it creates an invisible magnetic field around the coil. Think of it like the inductor is throwing an invisible party, and the magnetic field is the music that fills the room.

But here's the kicker: this magnetic field has a memory. It "remembers" the current that created it and doesn't want things to change. Scientists call this Lenz's Law, but I like to think of it as the "stubborn teenager principle" - it resists any change you try to make!

The Step-by-Step Process: What Actually Happens Inside

Let me break down exactly what's happening when current flows through an inductor:

Step 1: Current Starts Flowing

When you first apply voltage to an inductor, current doesn't just rush through like water through a broken dam. Instead, it starts slowly, like honey dripping from a spoon. Why? Because the inductor is building up its magnetic field, and that takes energy.

Step 2: Magnetic Field Builds Up

As current increases, the magnetic field around the coil gets stronger. Picture invisible magnetic field lines wrapping around the coil like cotton candy around a stick. Each turn of the coil adds to this magnetic field strength.

Step 3: The "Memory Effect" Kicks In

Once that magnetic field is established, it becomes protective of the current that created it. Try to change the current suddenly? The magnetic field fights back by inducing a voltage that opposes the change. It's like the inductor is saying, "Hey, I like things the way they are!"

Step 4: Energy Storage and Release

Here's where inductors become really useful. All that magnetic field energy can be stored and then released when needed. It's like having a electrical battery, but instead of storing energy chemically, it stores it magnetically.

The Mathematical Side (Don't Worry, I'll Keep It Simple!)

Now, I know math can be scary, but the basic equation for inductors is actually pretty straightforward:

V = L × (dI/dt)

Let me translate that from engineer-speak to human:

• V = the voltage across the inductor
• L = the inductance value (how "stubborn" the inductor is)
• dI/dt = how fast the current is changing

What this equation tells us is that the faster you try to change the current, the more the inductor will fight back with an opposing voltage. It's like trying to push a heavy shopping cart - push gently, and it moves easily. Try to shove it suddenly, and it pushes back hard!

Real-World Example: Your Car's Ignition System

Want to see inductors in action? Pop the hood of your car and look at the ignition coil. This is basically a big inductor doing some serious work.

Here's what happens when you turn the key:

1. Current builds up in the primary coil (the inductor)
2. The magnetic field grows stronger and stronger
3. Suddenly, the current is cut off
4. The magnetic field collapses rapidly
5. This creates a massive voltage spike (we're talking thousands of volts!)
6. That high voltage jumps across the spark plug gap
7. BOOM! Your engine fires up

Without inductors, your car would just sit there looking pretty but not going anywhere.

The Different Personalities of Inductors

Not all inductors are created equal. They come in different "personalities" depending on what's inside them:

Air Core Inductors: The Minimalists

These guys are just wire coiled up with air in the middle. They're like the minimalist artists of the inductor world - simple, clean, and great for high-frequency work. No fancy core material to complicate things.

Iron Core Inductors: The Powerhouses

Add an iron core, and suddenly your inductor becomes a bodybuilder. The iron amplifies the magnetic field, giving you much higher inductance in the same size package. Perfect for power applications where you need serious magnetic muscle.

Ferrite Core Inductors: The Balanced Athletes

Ferrite cores are like the well-rounded athletes - good at many things without being extreme in any direction. They boost inductance like iron but work well at higher frequencies too.

Why Inductors "Hate" Change: The Physics Behind the Stubbornness

Let's dig deeper into why inductors are so resistant to change. It all comes down to a fundamental law of physics that says energy can't be created or destroyed, only converted from one form to another.

When current flows through an inductor, electrical energy gets converted into magnetic field energy. This energy is "stored" in the space around the coil. Now, if you suddenly try to change the current, you're essentially trying to change that stored energy instantly - and physics says "nope, not happening!"

The inductor responds by generating a voltage that opposes your change. It's not being difficult on purpose; it's just following the laws of physics!

Practical Applications: Where You'll Find Inductors Working Hard

Power Supplies: The Smooth Operators

In switching power supplies, inductors act like electrical shock absorbers. They smooth out the choppy, on-off voltage from the switching circuit and deliver nice, steady power to your devices.

Radio Circuits: The Frequency Selectors

Ever wonder how your radio picks up just one station out of all the signals flying through the air? Inductors (working with capacitors) create tuned circuits that can select specific frequencies while rejecting others.

Motor Drives: The Current Controllers

In motor control circuits, inductors help manage the current flow to electric motors, ensuring smooth operation and protecting against current spikes that could damage the motor.

Common Misconceptions About Inductors

Myth 1: "Inductors Block AC Current"

Not exactly! Inductors oppose changes in current. At very low frequencies (like DC), they barely resist current flow. At high frequencies, they resist more. It's all about the rate of change, not the type of current.

Myth 2: "Bigger Inductors Are Always Better"

Size matters, but it's not everything. A bigger inductor might have higher inductance, but it might also have higher resistance, take up more space, and cost more. It's all about finding the right balance for your application.

Myth 3: "Inductors Are Just Simple Coils"

While the basic concept is simple, real-world inductors are carefully engineered components. The wire gauge, core material, winding technique, and even the shape all affect performance.

Troubleshooting Inductor Problems: What Can Go Wrong?

Saturation: When Inductors Give Up

Push too much current through an inductor, and the core material can become "saturated." When this happens, the inductor basically stops being an inductor and turns into a resistor. It's like overloading a sponge - at some point, it just can't absorb any more water.

Parasitic Effects: The Hidden Gremlins

Real inductors aren't perfect. They have some resistance (which wastes power) and some capacitance (which can cause weird behavior at high frequencies). Good inductor design minimizes these parasitic effects.

Temperature Drift: When Heat Changes Everything

Temperature can affect inductor performance. Some core materials change their magnetic properties with temperature, which changes the inductance value. This is why precision circuits often need temperature-compensated designs.

The Future of Inductor Technology

The inductor world isn't standing still! Engineers are constantly developing:

• Smaller, more efficient designs for mobile devices
• New core materials that work better at high frequencies
• Integrated inductors built right into circuit boards
• Smart inductors with built-in sensing capabilities

Wrapping It All Up: The Big Picture

So there you have it - the complete story of how inductors work! Remember these key points:

1. Inductors resist changes in current due to their magnetic field "memory"
2. They store energy magnetically, not electrically like capacitors
3. The core material determines their personality - air core for high frequency, iron core for power applications
4. They're everywhere - from your car's ignition to your phone's power supply
5. Understanding the physics helps you choose the right inductor for your project

The next time someone asks you how inductors work, you can confidently explain that they're electromagnetic components that use magnetic fields to oppose changes in current flow. And if they want the simple version, just tell them inductors are the "stubborn teenagers" of the electronics world - they hate change and will fight against it!

What's Next on Your Inductor Journey?

Now that you understand how inductors work, you might want to explore:

• How to calculate inductance values for your projects
• The relationship between inductors and capacitors in LC circuits
• Practical inductor selection guides for different applications
• How to measure inductance with common test equipment

Got questions about inductor operation? Drop them in the comments - I love discussing the nitty-gritty details of how these fascinating components work!

Safety reminder: Always follow proper safety procedures when working with electronic circuits. High-voltage applications (like ignition systems) can be dangerous and should only be handled by qualified professionals.
