2000-R5-V-RC
Bourns Inc.
- Induktivität
- 500 nH
- Strom
- 24.7 A
- DCR
- 1.2mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: 2000
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
2000
2000-1R5-V-RC
Bourns Inc.
- Induktivität
- 1.5 µH
- Strom
- 18.7 A
- DCR
- 2mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-2R7-H-RC
Bourns Inc.
- Induktivität
- 2.7 µH
- Strom
- 14.7 A
- DCR
- 3mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-R8-V-RC
Bourns Inc.
- Induktivität
- 800 nH
- Strom
- 22.1 A
- DCR
- 1.4mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-2R0-V-RC
Bourns Inc.
- Induktivität
- 2 µH
- Strom
- 15.6 A
- DCR
- 2.7mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-2R7-V-RC
Bourns Inc.
- Induktivität
- 2.7 µH
- Strom
- 14.7 A
- DCR
- 3mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-270-V-RC
Bourns Inc.
- Induktivität
- 27 µH
- Strom
- 4.1 A
- DCR
- 39mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-150-H-RC
Bourns Inc.
- Induktivität
- 15 µH
- Strom
- 4.7 A
- DCR
- 29mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-4R7-V-RC
Bourns Inc.
- Induktivität
- 4.7 µH
- Strom
- 10.1 A
- DCR
- 6.4mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-220-V-RC
Bourns Inc.
- Induktivität
- 22 µH
- Strom
- 4.3 A
- DCR
- 35mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-150-V-RC
Bourns Inc.
- Induktivität
- 15 µH
- Strom
- 4.7 A
- DCR
- 29mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-330-H-RC
Bourns Inc.
- Induktivität
- 33 µH
- Strom
- 3.5 A
- DCR
- 54mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-3R9-V-RC
Bourns Inc.
- Induktivität
- 3.9 µH
- Strom
- 10.5 A
- DCR
- 5.9mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-180-H-RC
Bourns Inc.
- Induktivität
- 18 µH
- Strom
- 4.5 A
- DCR
- 32mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-180-V-RC
Bourns Inc.
- Induktivität
- 18 µH
- Strom
- 4.5 A
- DCR
- 32mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-1R2-H-RC
Bourns Inc.
- Induktivität
- 1.2 µH
- Strom
- 20.2 A
- DCR
- 1.7mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-3R3-H-RC
Bourns Inc.
- Induktivität
- 3.3 µH
- Strom
- 11.1 A
- DCR
- 5.3mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-5R6-H-RC
Bourns Inc.
- Induktivität
- 5.6 µH
- Strom
- 9.7 A
- DCR
- 6.9mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-6R8-H-RC
Bourns Inc.
- Induktivität
- 6.8 µH
- Strom
- 7.2 A
- DCR
- 13mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-6R8-V-RC
Bourns Inc.
- Induktivität
- 6.8 µH
- Strom
- 7.2 A
- DCR
- 13mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-270-H-RC
Bourns Inc.
- Induktivität
- 27 µH
- Strom
- 4.1 A
- DCR
- 39mOhm Max
- Größe
- 0.680" Dia (17.27mm)
2000-100-V-RC
Bourns Inc.
- Induktivität
- 10 µH
- Strom
- 6.6 A
- DCR
- 15mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-3R3-V-RC
Bourns Inc.
- Induktivität
- 3.3 µH
- Strom
- 11.1 A
- DCR
- 5.3mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)

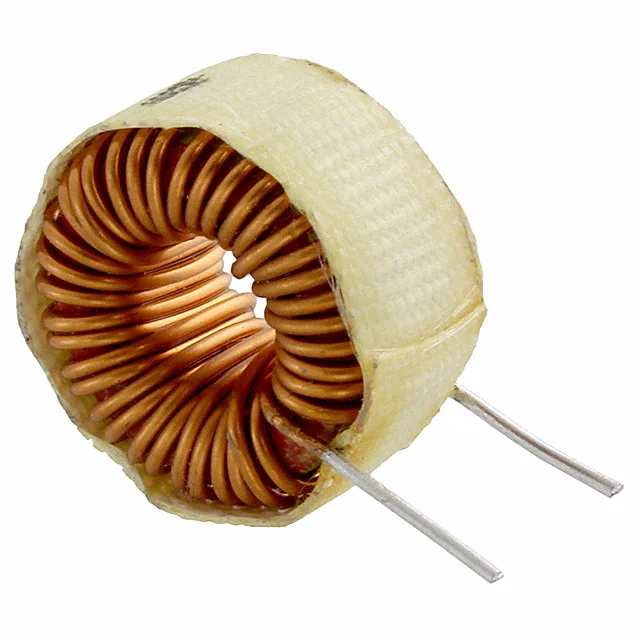

2000-5R6-V-RC
Bourns Inc.
- Induktivität
- 5.6 µH
- Strom
- 9.7 A
- DCR
- 6.9mOhm Max
- Größe
- 0.680" Dia x 0.410" W (17.27mm x 10.41mm)
2000-4R7-H-RC
Bourns Inc.
- Induktivität
- 4.7 µH
- Strom
- 10.1 A
- DCR
- 6.4mOhm Max
- Größe
- 0.680" Dia (17.27mm)
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
2000-R5-V-RC Bourns Inc. | 500 nH | 24.7 A | 1.2mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-1R5-V-RC Bourns Inc. | 1.5 µH | 18.7 A | 2mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-2R7-H-RC Bourns Inc. | 2.7 µH | 14.7 A | 3mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-R8-V-RC Bourns Inc. | 800 nH | 22.1 A | 1.4mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-2R0-V-RC Bourns Inc. | 2 µH | 15.6 A | 2.7mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-2R7-V-RC Bourns Inc. | 2.7 µH | 14.7 A | 3mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-270-V-RC Bourns Inc. | 27 µH | 4.1 A | 39mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-150-H-RC Bourns Inc. | 15 µH | 4.7 A | 29mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-4R7-V-RC Bourns Inc. | 4.7 µH | 10.1 A | 6.4mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-220-V-RC Bourns Inc. | 22 µH | 4.3 A | 35mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-150-V-RC Bourns Inc. | 15 µH | 4.7 A | 29mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-330-H-RC Bourns Inc. | 33 µH | 3.5 A | 54mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-3R9-V-RC Bourns Inc. | 3.9 µH | 10.5 A | 5.9mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-180-H-RC Bourns Inc. | 18 µH | 4.5 A | 32mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-180-V-RC Bourns Inc. | 18 µH | 4.5 A | 32mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-1R2-H-RC Bourns Inc. | 1.2 µH | 20.2 A | 1.7mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-3R3-H-RC Bourns Inc. | 3.3 µH | 11.1 A | 5.3mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-5R6-H-RC Bourns Inc. | 5.6 µH | 9.7 A | 6.9mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-6R8-H-RC Bourns Inc. | 6.8 µH | 7.2 A | 13mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-6R8-V-RC Bourns Inc. | 6.8 µH | 7.2 A | 13mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-270-H-RC Bourns Inc. | 27 µH | 4.1 A | 39mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) | |
2000-100-V-RC Bourns Inc. | 10 µH | 6.6 A | 15mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-3R3-V-RC Bourns Inc. | 3.3 µH | 11.1 A | 5.3mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-5R6-V-RC Bourns Inc. | 5.6 µH | 9.7 A | 6.9mOhm Max | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | Radial, Vertical (Open) | |
2000-4R7-H-RC Bourns Inc. | 4.7 µH | 10.1 A | 6.4mOhm Max | 0.680" Dia (17.27mm) | Radial, Horizontal (Open) |
