AMRU000606301R5MA1
Pulse Electronics
- Induktivität
- 1.5 µH
- Strom
- 9 A
- DCR
- 14mOhm Max
- Größe
- 0.287" L x 0.268" W (7.30mm x 6.80mm)
Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: AMRx
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
AMRx
AMRU000606303R3MA1
Pulse Electronics
- Induktivität
- 3.3 µH
- Strom
- 6.5 A
- DCR
- 28mOhm Max
- Größe
- 0.287" L x 0.268" W (7.30mm x 6.80mm)
AMRU00060630R47MA1
Pulse Electronics
- Induktivität
- 470 nH
- Strom
- 16.5 A
- DCR
- 4.3mOhm Max
- Größe
- 0.287" L x 0.268" W (7.30mm x 6.80mm)
AMRU00131365220MA1
Pulse Electronics
- Induktivität
- 22 µH
- Strom
- 6 A
- DCR
- 40mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU001313651R0MA1
Pulse Electronics
- Induktivität
- 1 µH
- Strom
- 28 A
- DCR
- 2.1mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU001313652R2MA1
Pulse Electronics
- Induktivität
- 2.2 µH
- Strom
- 18 A
- DCR
- 4.4mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)

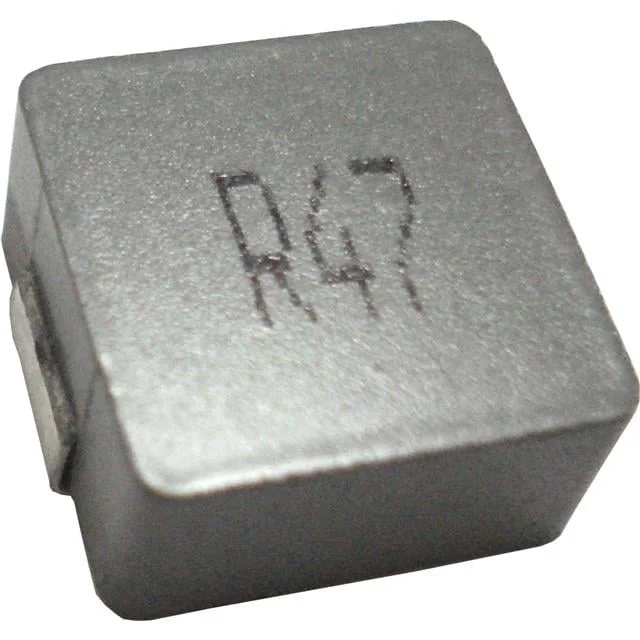

AMRU001313654R7MA1
Pulse Electronics
- Induktivität
- 4.7 µH
- Strom
- 14 A
- DCR
- 7.7mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU001313653R3MA1
Pulse Electronics
- Induktivität
- 3.3 µH
- Strom
- 16 A
- DCR
- 6.8mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU001313651R5MA1
Pulse Electronics
- Induktivität
- 1.5 µH
- Strom
- 23 A
- DCR
- 3mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU00131365100MA1
Pulse Electronics
- Induktivität
- 10 µH
- Strom
- 10 A
- DCR
- 18mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU00131365330MA1
Pulse Electronics
- Induktivität
- 33 µH
- Strom
- 5 A
- DCR
- 55mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU00131365470MA1
Pulse Electronics
- Induktivität
- 47 µH
- Strom
- 4 A
- DCR
- 100mOhm Max
- Größe
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
AMRU001010402R2MA1
Pulse Electronics
- Induktivität
- 2.2 µH
- Strom
- 14 A
- DCR
- 6.8mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU00101040100MA1
Pulse Electronics
- Induktivität
- 10 µH
- Strom
- 6.5 A
- DCR
- 30mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU001010403R3MA1
Pulse Electronics
- Induktivität
- 3.3 µH
- Strom
- 11 A
- DCR
- 11mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU001010406R8MA1
Pulse Electronics
- Induktivität
- 6.8 µH
- Strom
- 8 A
- DCR
- 24mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU00101040470MA1
Pulse Electronics
- Induktivität
- 47 µH
- Strom
- 3 A
- DCR
- 165mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU00101040330MA1
Pulse Electronics
- Induktivität
- 33 µH
- Strom
- 3.5 A
- DCR
- 100mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU001010401R0MA1
Pulse Electronics
- Induktivität
- 1 µH
- Strom
- 18 A
- DCR
- 3.3mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU00101040150MA1
Pulse Electronics
- Induktivität
- 15 µH
- Strom
- 6 A
- DCR
- 45mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU001010404R7MA1
Pulse Electronics
- Induktivität
- 4.7 µH
- Strom
- 9 A
- DCR
- 16mOhm Max
- Größe
- 0.457" L x 0.402" W (11.60mm x 10.20mm)
AMRU000404121R0MA1
Pulse Electronics
- Induktivität
- 1 µH
- Strom
- 4 A
- DCR
- 43mOhm Max
- Größe
- 0.185" L x 0.165" W (4.70mm x 4.20mm)
AMRU00040412R22MA1
Pulse Electronics
- Induktivität
- 220 nH
- Strom
- 8.5 A
- DCR
- 12mOhm Max
- Größe
- 0.185" L x 0.165" W (4.70mm x 4.20mm)
AMRU000404201R5MB1
Pulse Electronics
- Induktivität
- 1.5 µH
- Strom
- 4 A
- DCR
- 46mOhm Max
- Größe
- 0.185" L x 0.165" W (4.70mm x 4.20mm)
AMRU000404201R0MB1
Pulse Electronics
- Induktivität
- 1 µH
- Strom
- 4.5 A
- DCR
- 27mOhm Max
- Größe
- 0.185" L x 0.165" W (4.70mm x 4.20mm)
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
AMRU000606301R5MA1 Pulse Electronics | 1.5 µH | 9 A | 14mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
AMRU000606303R3MA1 Pulse Electronics | 3.3 µH | 6.5 A | 28mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
AMRU00060630R47MA1 Pulse Electronics | 470 nH | 16.5 A | 4.3mOhm Max | 0.287" L x 0.268" W (7.30mm x 6.80mm) | Nonstandard | |
AMRU00131365220MA1 Pulse Electronics | 22 µH | 6 A | 40mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU001313651R0MA1 Pulse Electronics | 1 µH | 28 A | 2.1mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU001313652R2MA1 Pulse Electronics | 2.2 µH | 18 A | 4.4mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU001313654R7MA1 Pulse Electronics | 4.7 µH | 14 A | 7.7mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU001313653R3MA1 Pulse Electronics | 3.3 µH | 16 A | 6.8mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU001313651R5MA1 Pulse Electronics | 1.5 µH | 23 A | 3mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU00131365100MA1 Pulse Electronics | 10 µH | 10 A | 18mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU00131365330MA1 Pulse Electronics | 33 µH | 5 A | 55mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU00131365470MA1 Pulse Electronics | 47 µH | 4 A | 100mOhm Max | 0.543" L x 0.504" W (13.80mm x 12.80mm) | Nonstandard | |
AMRU001010402R2MA1 Pulse Electronics | 2.2 µH | 14 A | 6.8mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU00101040100MA1 Pulse Electronics | 10 µH | 6.5 A | 30mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU001010403R3MA1 Pulse Electronics | 3.3 µH | 11 A | 11mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU001010406R8MA1 Pulse Electronics | 6.8 µH | 8 A | 24mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU00101040470MA1 Pulse Electronics | 47 µH | 3 A | 165mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU00101040330MA1 Pulse Electronics | 33 µH | 3.5 A | 100mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU001010401R0MA1 Pulse Electronics | 1 µH | 18 A | 3.3mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU00101040150MA1 Pulse Electronics | 15 µH | 6 A | 45mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU001010404R7MA1 Pulse Electronics | 4.7 µH | 9 A | 16mOhm Max | 0.457" L x 0.402" W (11.60mm x 10.20mm) | Nonstandard | |
AMRU000404121R0MA1 Pulse Electronics | 1 µH | 4 A | 43mOhm Max | 0.185" L x 0.165" W (4.70mm x 4.20mm) | Nonstandard | |
AMRU00040412R22MA1 Pulse Electronics | 220 nH | 8.5 A | 12mOhm Max | 0.185" L x 0.165" W (4.70mm x 4.20mm) | Nonstandard | |
AMRU000404201R5MB1 Pulse Electronics | 1.5 µH | 4 A | 46mOhm Max | 0.185" L x 0.165" W (4.70mm x 4.20mm) | Nonstandard | |
AMRU000404201R0MB1 Pulse Electronics | 1 µH | 4.5 A | 27mOhm Max | 0.185" L x 0.165" W (4.70mm x 4.20mm) | Nonstandard |
