L0201R33AHSTR\500
KYOCERA AVX
- Induktivität
- 0.33 nH
- Strom
- 550 mA
- DCR
- 100mOhm Max
- Größe
- 0.024 L x 0.012 W (0.60mm x 0.30mm)
Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: Accu-L®
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Accu-L®
L0201R82AHSTR\500
KYOCERA AVX
- Induktivität
- 0.82 nH
- Strom
- 400 mA
- DCR
- 200mOhm Max
- Größe
- 0.024 L x 0.012 W (0.60mm x 0.30mm)
L02012R2BHSTR\500
KYOCERA AVX
- Induktivität
- 2.2 nH
- Strom
- 200 mA
- DCR
- 600mOhm Max
- Größe
- 0.024 L x 0.013 W (0.60mm x 0.33mm)
L06031R2CGSTR
KYOCERA AVX
- Induktivität
- 1.2 nH
- Strom
- 1 A
- DCR
- 40mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06031R8CGSTR
KYOCERA AVX
- Induktivität
- 1.8 nH
- Strom
- 1 A
- DCR
- 70mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06031R5CGSTR
KYOCERA AVX
- Induktivität
- 1.5 nH
- Strom
- 1 A
- DCR
- 60mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06033R9CGSTR
KYOCERA AVX
- Induktivität
- 3.9 nH
- Strom
- 500 mA
- DCR
- 120mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06034R7CGSTR
KYOCERA AVX
- Induktivität
- 4.7 nH
- Strom
- 500 mA
- DCR
- 150mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06032R7CGSTR
KYOCERA AVX
- Induktivität
- 2.7 nH
- Strom
- 750 mA
- DCR
- 80mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06032R2CGSTR
KYOCERA AVX
- Induktivität
- 2.2 nH
- Strom
- 1 A
- DCR
- 80mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06033R3CGSTR
KYOCERA AVX
- Induktivität
- 3.3 nH
- Strom
- 750 mA
- DCR
- 80mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L0603100GGSTR
KYOCERA AVX
- Induktivität
- 10 nH
- Strom
- 300 mA
- DCR
- 450mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L08054R7CESTR
KYOCERA AVX
- Induktivität
- 4.7 nH
- Strom
- 750 mA
- DCR
- 100mOhm Max
- Größe
- 0.083 L x 0.059 W (2.11mm x 1.50mm)
L0201R56AHSTR\500
KYOCERA AVX
- Induktivität
- 0.56 nH
- Strom
- 500 mA
- DCR
- 100mOhm Max
- Größe
- 0.024 L x 0.012 W (0.60mm x 0.30mm)
L0201R39AHSTR\500
KYOCERA AVX
- Induktivität
- 0.39 nH
- Strom
- 550 mA
- DCR
- 100mOhm Max
- Größe
- 0.024 L x 0.012 W (0.60mm x 0.30mm)
L0201R47AHSTR\500
KYOCERA AVX
- Induktivität
- 0.47 nH
- Strom
- 550 mA
- DCR
- 100mOhm Max
- Größe
- 0.024 L x 0.012 W (0.60mm x 0.30mm)
L02011R8BHSTR\500
KYOCERA AVX
- Induktivität
- 1.8 nH
- Strom
- 250 mA
- DCR
- 500mOhm Max
- Größe
- 0.024 L x 0.013 W (0.60mm x 0.33mm)
L02011R8BHSTR
KYOCERA AVX
- Induktivität
- 1.8 nH
- Strom
- 250 mA
- DCR
- 500mOhm
- Größe
- 0.024 L x 0.013 W (0.60mm x 0.33mm)
L02011R5BHSTR\500
KYOCERA AVX
- Induktivität
- 1.5 nH
- Strom
- 250 mA
- DCR
- 500mOhm Max
- Größe
- 0.024 L x 0.013 W (0.60mm x 0.33mm)
L02011R0AHSTR\500
KYOCERA AVX
- Induktivität
- 1 nH
- Strom
- 400 mA
- DCR
- 200mOhm Max
- Größe
- 0.024 L x 0.013 W (0.60mm x 0.33mm)
L02012R7BHSTR\500
KYOCERA AVX
- Induktivität
- 2.7 nH
- Strom
- 180 mA
- DCR
- 700mOhm Max
- Größe
- 0.024 L x 0.013 W (0.60mm x 0.33mm)
L06035R6CGSTR
KYOCERA AVX
- Induktivität
- 5.6 nH
- Strom
- 300 mA
- DCR
- 250mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)

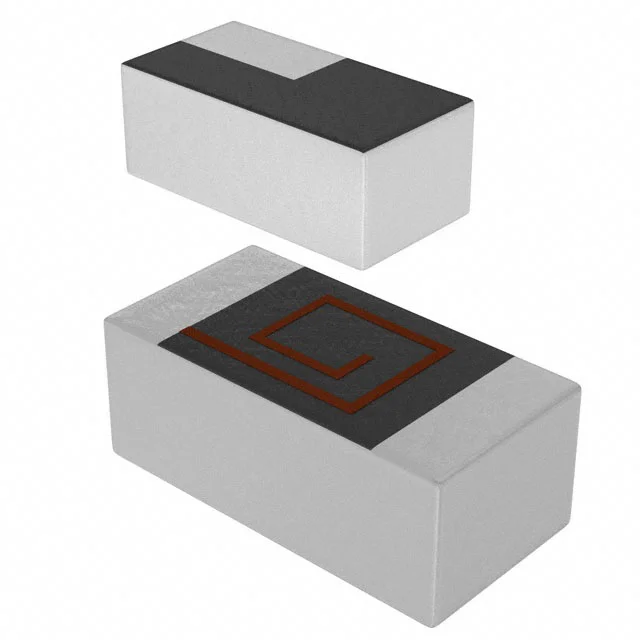

L06036R8CGSTR
KYOCERA AVX
- Induktivität
- 6.8 nH
- Strom
- 300 mA
- DCR
- 300mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L06031R2BGWTR
KYOCERA AVX
- Induktivität
- 1.2 nH
- Strom
- 1 A
- DCR
- 40mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
L0603150GGSTR
KYOCERA AVX
- Induktivität
- 15 nH
- Strom
- 300 mA
- DCR
- 600mOhm Max
- Größe
- 0.063 L x 0.032 W (1.60mm x 0.81mm)
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
L0201R33AHSTR\500 KYOCERA AVX | 0.33 nH | 550 mA | 100mOhm Max | 0.024 L x 0.012 W (0.60mm x 0.30mm) | 0201 (0603 Metric) | |
L0201R82AHSTR\500 KYOCERA AVX | 0.82 nH | 400 mA | 200mOhm Max | 0.024 L x 0.012 W (0.60mm x 0.30mm) | 0201 (0603 Metric) | |
L02012R2BHSTR\500 KYOCERA AVX | 2.2 nH | 200 mA | 600mOhm Max | 0.024 L x 0.013 W (0.60mm x 0.33mm) | 0201 (0603 Metric) | |
L06031R2CGSTR KYOCERA AVX | 1.2 nH | 1 A | 40mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06031R8CGSTR KYOCERA AVX | 1.8 nH | 1 A | 70mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06031R5CGSTR KYOCERA AVX | 1.5 nH | 1 A | 60mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06033R9CGSTR KYOCERA AVX | 3.9 nH | 500 mA | 120mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06034R7CGSTR KYOCERA AVX | 4.7 nH | 500 mA | 150mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06032R7CGSTR KYOCERA AVX | 2.7 nH | 750 mA | 80mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06032R2CGSTR KYOCERA AVX | 2.2 nH | 1 A | 80mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06033R3CGSTR KYOCERA AVX | 3.3 nH | 750 mA | 80mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L0603100GGSTR KYOCERA AVX | 10 nH | 300 mA | 450mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L08054R7CESTR KYOCERA AVX | 4.7 nH | 750 mA | 100mOhm Max | 0.083 L x 0.059 W (2.11mm x 1.50mm) | 0805 (2012 Metric) | |
L0201R56AHSTR\500 KYOCERA AVX | 0.56 nH | 500 mA | 100mOhm Max | 0.024 L x 0.012 W (0.60mm x 0.30mm) | 0201 (0603 Metric) | |
L0201R39AHSTR\500 KYOCERA AVX | 0.39 nH | 550 mA | 100mOhm Max | 0.024 L x 0.012 W (0.60mm x 0.30mm) | 0201 (0603 Metric) | |
L0201R47AHSTR\500 KYOCERA AVX | 0.47 nH | 550 mA | 100mOhm Max | 0.024 L x 0.012 W (0.60mm x 0.30mm) | 0201 (0603 Metric) | |
L02011R8BHSTR\500 KYOCERA AVX | 1.8 nH | 250 mA | 500mOhm Max | 0.024 L x 0.013 W (0.60mm x 0.33mm) | 0201 (0603 Metric) | |
L02011R8BHSTR KYOCERA AVX | 1.8 nH | 250 mA | 500mOhm | 0.024 L x 0.013 W (0.60mm x 0.33mm) | 0201 (0603 Metric) | |
L02011R5BHSTR\500 KYOCERA AVX | 1.5 nH | 250 mA | 500mOhm Max | 0.024 L x 0.013 W (0.60mm x 0.33mm) | 0201 (0603 Metric) | |
L02011R0AHSTR\500 KYOCERA AVX | 1 nH | 400 mA | 200mOhm Max | 0.024 L x 0.013 W (0.60mm x 0.33mm) | 0201 (0603 Metric) | |
L02012R7BHSTR\500 KYOCERA AVX | 2.7 nH | 180 mA | 700mOhm Max | 0.024 L x 0.013 W (0.60mm x 0.33mm) | 0201 (0603 Metric) | |
L06035R6CGSTR KYOCERA AVX | 5.6 nH | 300 mA | 250mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06036R8CGSTR KYOCERA AVX | 6.8 nH | 300 mA | 300mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L06031R2BGWTR KYOCERA AVX | 1.2 nH | 1 A | 40mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) | |
L0603150GGSTR KYOCERA AVX | 15 nH | 300 mA | 600mOhm Max | 0.063 L x 0.032 W (1.60mm x 0.81mm) | 0603 (1608 Metric) |
