Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.

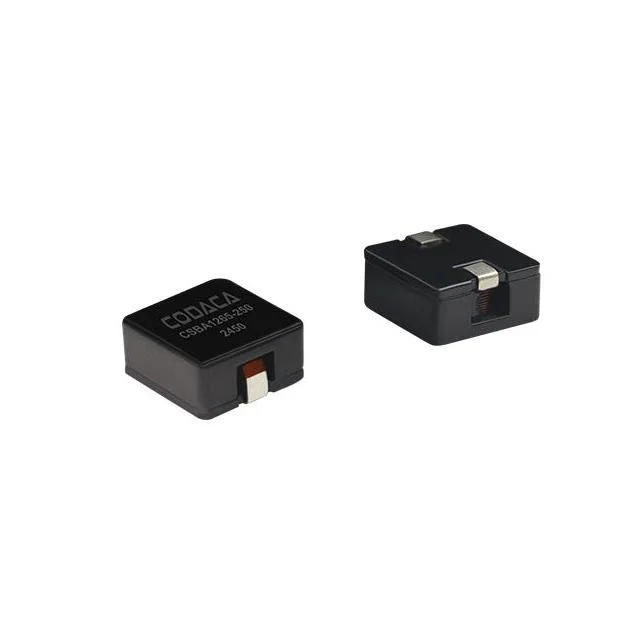

Serie: CSBA1265
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 CSBA1265-150M CODACA | 15 µH | 8 A | 20.8mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-3R0M CODACA | 3 µH | 19 A | 4mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-5R2M CODACA | 5.2 µH | 14.5 A | 6.6mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-7R8M CODACA | 7.8 µH | 11.5 A | 10.5mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-2R2M CODACA | 2.2 µH | 22 A | 2.82mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-110M CODACA | 11 µH | 9.5 A | 14.7mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-220M CODACA | 22 µH | 6.8 A | 26.5mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-R90M CODACA | 0.9 µH | 32 A | 1.25mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-R47M CODACA | 0.47 µH | 40 A | 0.75mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-330M CODACA | 33 µH | 5.2 A | 49.6mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-130M CODACA | 13 µH | 8.6 A | 19.1mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-1R5M CODACA | 1.5 µH | 27 A | 1.9mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-4R0M CODACA | 4 µH | 16.2 A | 5.06mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-R20M CODACA | 0.2 µH | 50 A | 0.37mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-270M CODACA | 27 µH | 5.5 A | 45mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD | |
 CSBA1265-9R5M CODACA | 9.5 µH | 10.4 A | 12.4mOhm Max | 0.551 L x 0.504 W (14.00mm x 12.80mm) | 2-SMD |
