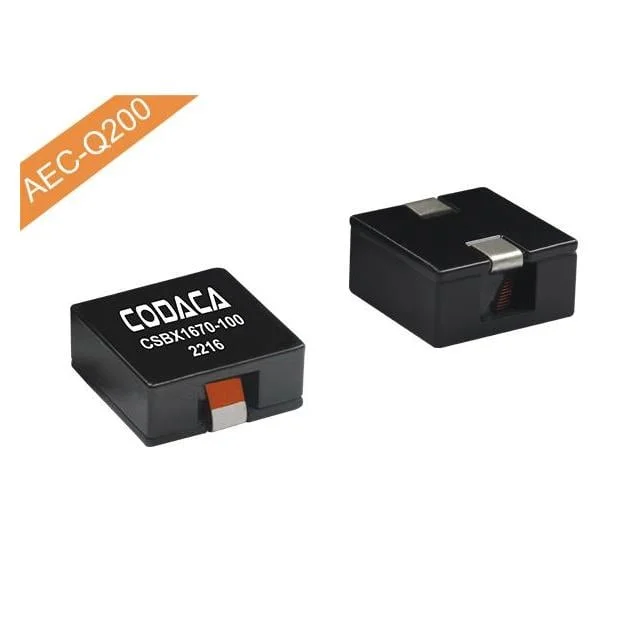

Serie: CSBX1670
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 CSBX1670-1R5M CODACA | 1.5 µH | 30 A | 1.55mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-5R6M CODACA | 5.6 µH | 18 A | 5.2mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-4R7M CODACA | 4.7 µH | 20 A | 4mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-3R3M CODACA | 3.3 µH | 23 A | 3.1mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-1R0M CODACA | 1 µH | 33 A | 1.05mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-6R5M CODACA | 6.5 µH | 16 A | 6.3mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-150M CODACA | 15 µH | 11 A | 14.2mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-2R2M CODACA | 2.2 µH | 25 A | 2.2mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-220M CODACA | 22 µH | 8.5 A | 23.5mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-8R2M CODACA | 8.2 µH | 15 A | 8.25mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD | |
 CSBX1670-100M CODACA | 10 µH | 13 A | 10mOhm Max | 0.661 L x 0.630 W (16.80mm x 16.00mm) | 2-SMD |
