HTPT66R-391K
Delevan
- Induktivität
- 390 nH
- Strom
- 18.3 A
- DCR
- 2mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: HTPT66R
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
HTPT66R
HTPT66R-122K
Delevan
- Induktivität
- 1.2 µH
- Strom
- 15.3 A
- DCR
- 2.9mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
HTPT66R-152K
Delevan
- Induktivität
- 1.5 µH
- Strom
- 13.7 A
- DCR
- 3.6mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
HTPT66R-472K
Delevan
- Induktivität
- 4.7 µH
- Strom
- 8.8 A
- DCR
- 8.6mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
HTPT66R-103K
Delevan
- Induktivität
- 10 µH
- Strom
- 5.9 A
- DCR
- 19mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
HTPT66R-153K
Delevan
- Induktivität
- 15 µH
- Strom
- 4.6 A
- DCR
- 30mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)

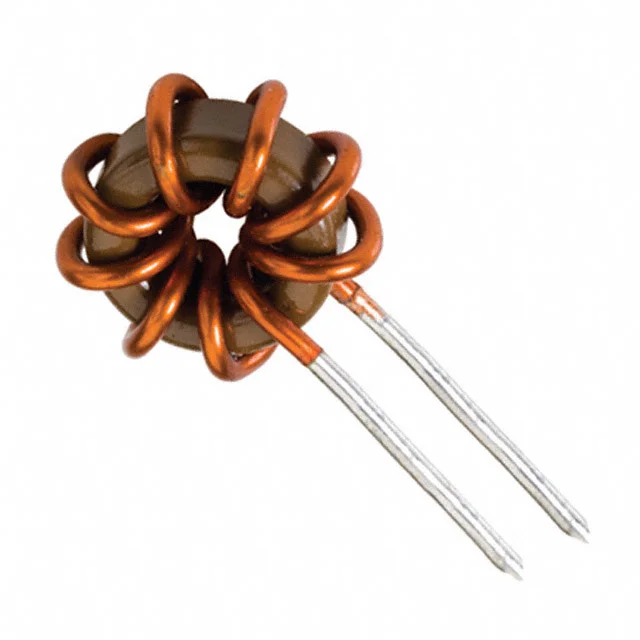

HTPT66R-223K
Delevan
- Induktivität
- 22 µH
- Strom
- 4 A
- DCR
- 36mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
HTPT66R-393K
Delevan
- Induktivität
- 39 µH
- Strom
- 2.8 A
- DCR
- 73mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
HTPT66R-683K
Delevan
- Induktivität
- 68 µH
- Strom
- 2.1 A
- DCR
- 122mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
HTPT66R-104K
Delevan
- Induktivität
- 100 µH
- Strom
- 1.9 A
- DCR
- 145mOhm Max
- Größe
- 0.660" Dia x 0.360" W (16.76mm x 9.14mm)
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
HTPT66R-391K Delevan | 390 nH | 18.3 A | 2mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-122K Delevan | 1.2 µH | 15.3 A | 2.9mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-152K Delevan | 1.5 µH | 13.7 A | 3.6mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-472K Delevan | 4.7 µH | 8.8 A | 8.6mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-103K Delevan | 10 µH | 5.9 A | 19mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-153K Delevan | 15 µH | 4.6 A | 30mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-223K Delevan | 22 µH | 4 A | 36mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-393K Delevan | 39 µH | 2.8 A | 73mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-683K Delevan | 68 µH | 2.1 A | 122mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) | |
HTPT66R-104K Delevan | 100 µH | 1.9 A | 145mOhm Max | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | Radial, Vertical (Open) |
