MCL1608V1-1R8-R
Eaton - Electronics Division
- Induktivität
- 1.8 µH
- Strom
- 120 mA
- DCR
- 400mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: MCL1608V1
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
MCL1608V1
MCL1608V1-R12-R
Eaton - Electronics Division
- Induktivität
- 120 nH
- Strom
- 150 mA
- DCR
- 200mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R68-R
Eaton - Electronics Division
- Induktivität
- 680 nH
- Strom
- 100 mA
- DCR
- 550mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-1R5-R
Eaton - Electronics Division
- Induktivität
- 1.5 µH
- Strom
- 120 mA
- DCR
- 350mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-2R7-R
Eaton - Electronics Division
- Induktivität
- 2.7 µH
- Strom
- 100 mA
- DCR
- 600mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R39-R
Eaton - Electronics Division
- Induktivität
- 390 nH
- Strom
- 100 mA
- DCR
- 350mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R47-R
Eaton - Electronics Division
- Induktivität
- 470 nH
- Strom
- 100 mA
- DCR
- 450mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R56-R
Eaton - Electronics Division
- Induktivität
- 560 nH
- Strom
- 100 mA
- DCR
- 450mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R18-R
Eaton - Electronics Division
- Induktivität
- 180 nH
- Strom
- 150 mA
- DCR
- 200mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-3R9-R
Eaton - Electronics Division
- Induktivität
- 3.9 µH
- Strom
- 80 mA
- DCR
- 700mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-3R3-R
Eaton - Electronics Division
- Induktivität
- 3.3 µH
- Strom
- 100 mA
- DCR
- 650mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-120-R
Eaton - Electronics Division
- Induktivität
- 12 µH
- Strom
- 60 mA
- DCR
- 1.25Ohm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-6R8-R
Eaton - Electronics Division
- Induktivität
- 6.8 µH
- Strom
- 60 mA
- DCR
- 900mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-8R2-R
Eaton - Electronics Division
- Induktivität
- 8.2 µH
- Strom
- 60 mA
- DCR
- 1.05Ohm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-5R6-R
Eaton - Electronics Division
- Induktivität
- 5.6 µH
- Strom
- 60 mA
- DCR
- 900mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-4R7-R
Eaton - Electronics Division
- Induktivität
- 4.7 µH
- Strom
- 80 mA
- DCR
- 750mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R15-R
Eaton - Electronics Division
- Induktivität
- 150 nH
- Strom
- 150 mA
- DCR
- 200mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R33-R
Eaton - Electronics Division
- Induktivität
- 330 nH
- Strom
- 100 mA
- DCR
- 300mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-100-R
Eaton - Electronics Division
- Induktivität
- 10 µH
- Strom
- 60 mA
- DCR
- 1.15Ohm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-1R2-R
Eaton - Electronics Division
- Induktivität
- 1.2 µH
- Strom
- 150 mA
- DCR
- 300mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-1R0-R
Eaton - Electronics Division
- Induktivität
- 1 µH
- Strom
- 150 mA
- DCR
- 300mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)

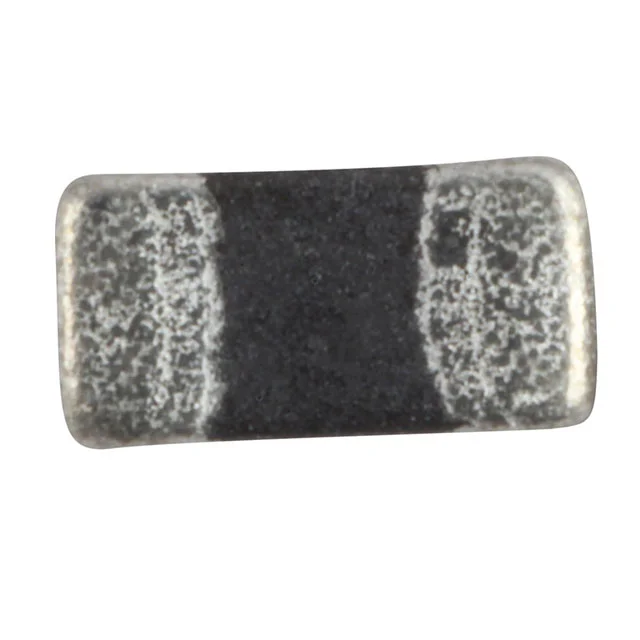

MCL1608V1-R056-R
Eaton - Electronics Division
- Induktivität
- 56 nH
- Strom
- 150 mA
- DCR
- 120mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R082-R
Eaton - Electronics Division
- Induktivität
- 82 nH
- Strom
- 150 mA
- DCR
- 120mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R068-R
Eaton - Electronics Division
- Induktivität
- 68 nH
- Strom
- 150 mA
- DCR
- 120mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
MCL1608V1-R27-R
Eaton - Electronics Division
- Induktivität
- 270 nH
- Strom
- 100 mA
- DCR
- 300mOhm Max
- Größe
- 0.063" L x 0.031" W (1.60mm x 0.80mm)
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
MCL1608V1-1R8-R Eaton - Electronics Division | 1.8 µH | 120 mA | 400mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R12-R Eaton - Electronics Division | 120 nH | 150 mA | 200mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R68-R Eaton - Electronics Division | 680 nH | 100 mA | 550mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-1R5-R Eaton - Electronics Division | 1.5 µH | 120 mA | 350mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-2R7-R Eaton - Electronics Division | 2.7 µH | 100 mA | 600mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R39-R Eaton - Electronics Division | 390 nH | 100 mA | 350mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R47-R Eaton - Electronics Division | 470 nH | 100 mA | 450mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R56-R Eaton - Electronics Division | 560 nH | 100 mA | 450mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R18-R Eaton - Electronics Division | 180 nH | 150 mA | 200mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-3R9-R Eaton - Electronics Division | 3.9 µH | 80 mA | 700mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-3R3-R Eaton - Electronics Division | 3.3 µH | 100 mA | 650mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-120-R Eaton - Electronics Division | 12 µH | 60 mA | 1.25Ohm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-6R8-R Eaton - Electronics Division | 6.8 µH | 60 mA | 900mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-8R2-R Eaton - Electronics Division | 8.2 µH | 60 mA | 1.05Ohm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-5R6-R Eaton - Electronics Division | 5.6 µH | 60 mA | 900mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-4R7-R Eaton - Electronics Division | 4.7 µH | 80 mA | 750mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R15-R Eaton - Electronics Division | 150 nH | 150 mA | 200mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R33-R Eaton - Electronics Division | 330 nH | 100 mA | 300mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-100-R Eaton - Electronics Division | 10 µH | 60 mA | 1.15Ohm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-1R2-R Eaton - Electronics Division | 1.2 µH | 150 mA | 300mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-1R0-R Eaton - Electronics Division | 1 µH | 150 mA | 300mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R056-R Eaton - Electronics Division | 56 nH | 150 mA | 120mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R082-R Eaton - Electronics Division | 82 nH | 150 mA | 120mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R068-R Eaton - Electronics Division | 68 nH | 150 mA | 120mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
MCL1608V1-R27-R Eaton - Electronics Division | 270 nH | 100 mA | 300mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) |
