Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Serie: S1210R
Serientabellen öffnen und verfügbare Spezifikationen vergleichen.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 S1210R-473K Delevan | 47 µH | 171 mA | 5.5Ohm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-682J Delevan | 6.8 µH | 328 mA | 1.5Ohm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-182K Delevan | 1.8 µH | 498 mA | 650mOhm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-122K Delevan | 1.2 µH | 574 mA | 490mOhm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-821K Delevan | 820 nH | 565 mA | 600mOhm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-471K Delevan | 470 nH | 653 mA | 450mOhm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-331K Delevan | 330 nH | 740 mA | 350mOhm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-393K Delevan | 39 µH | 179 mA | 5Ohm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-333K Delevan | 33 µH | 189 mA | 4.5Ohm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-102K Delevan | 1 µH | 635 mA | 400mOhm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
 S1210R-121F Delevan | 120 nH | 1.062 A | 170mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-101F Delevan | 100 nH | 1.131 A | 150mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-102F Delevan | 1 µH | 635 mA | 400mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-103F Delevan | 10 µH | 291 mA | 1.9Ohm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |

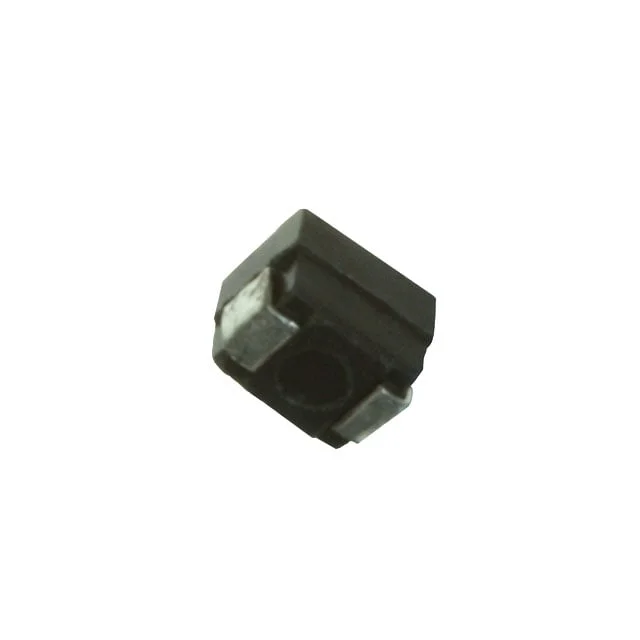

 S1210R-104F Delevan | 100 µH | 127 mA | 10Ohm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-122F Delevan | 1.2 µH | 574 mA | 490mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-123F Delevan | 12 µH | 277 mA | 2.1Ohm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-151F Delevan | 150 nH | 979 mA | 200mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-152F Delevan | 1.5 µH | 532 mA | 570mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-153F Delevan | 15 µH | 254 mA | 2.5Ohm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-181F Delevan | 180 nH | 934 mA | 220mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-182F Delevan | 1.8 µH | 498 mA | 650mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-183F Delevan | 18 µH | 240 mA | 2.8Ohm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-221F Delevan | 220 nH | 876 mA | 250mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) | |
 S1210R-222F Delevan | 2.2 µH | 470 mA | 730mOhm Max | 0.138" L x 0.105" W (3.51mm x 2.66mm) | 1210 (3225 Metric) |
