Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 7847111020 Würth Elektronik | 2 µH | 7 A | 6.5mOhm | 0.232" Dia x 0.539" L (5.90mm x 13.70mm) | Radial, Horizontal Cylinder (Open) | |

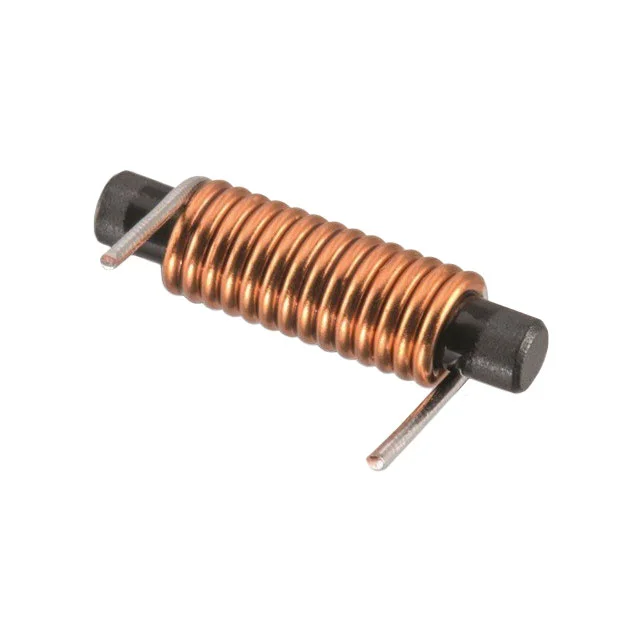

 7847111100 Würth Elektronik | 10 µH | 3 A | 33mOhm | 0.205" Dia x 0.728" L (5.20mm x 18.50mm) | Radial, Horizontal Cylinder (Open) | |
 7847121020 Würth Elektronik | 2 µH | 10 A | 3.8mOhm | 0.299" Dia x 0.606" L (7.60mm x 15.40mm) | Radial, Horizontal Cylinder (Open) | |
 7847121060 Würth Elektronik | 6 µH | 6.4 A | 11.7mOhm | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) | Radial, Horizontal Cylinder (Open) | |

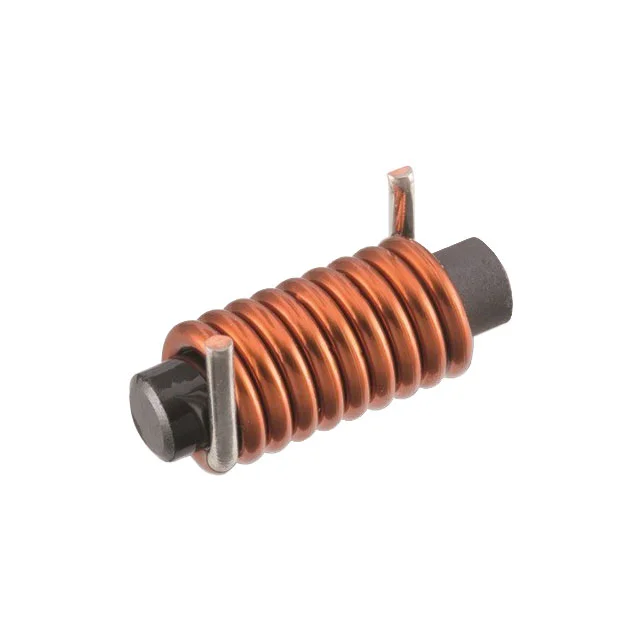

 7847131020 Würth Elektronik | 2 µH | 15 A | 1.7mOhm | 0.394" Dia x 1.012" L (10.00mm x 25.70mm) | Radial, Horizontal Cylinder (Open) | |
 7847131100 Würth Elektronik | 10 µH | 10 A | 8.8mOhm | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) | Radial, Horizontal Cylinder (Open) | |
 7847131060 Würth Elektronik | 6 µH | 10 A | 6.5mOhm | 0.339" Dia x 1.012" L (8.60mm x 25.70mm) | Radial, Horizontal Cylinder (Open) | |
 7847121100 Würth Elektronik | 10 µH | 5.5 A | 15.1mOhm | 0.272" Dia x 0.886" L (6.90mm x 22.50mm) | Radial, Horizontal Cylinder (Open) | |
 7847120060 Würth Elektronik | 6 µH | 3.4 A | 22mOhm | 0.165" Dia x 0.606" L (4.20mm x 15.40mm) | Radial, Horizontal Cylinder (Open) | |
 7847110020 Würth Elektronik | 2 µH | 4 A | 11mOhm | 0.126" Dia x 0.484" L (3.20mm x 12.30mm) | Radial, Horizontal Cylinder (Open) | |

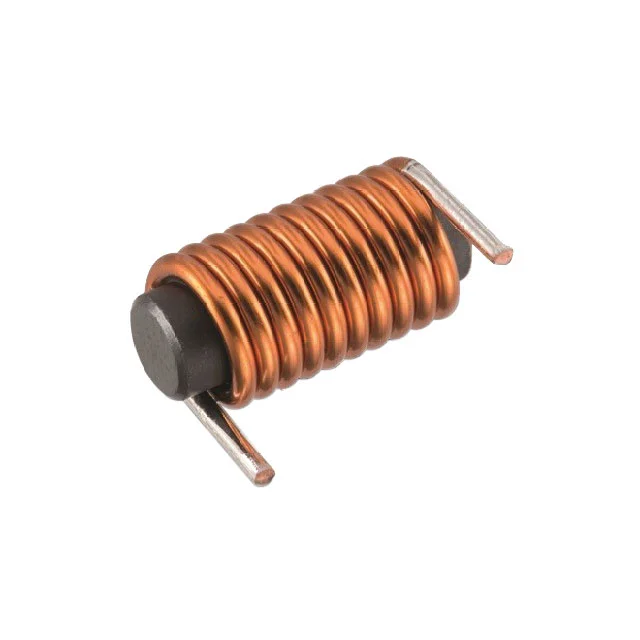

 7847132060 Würth Elektronik | 6 µH | 15 A | 3.5mOhm | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | Radial, Horizontal Cylinder (Open) | |

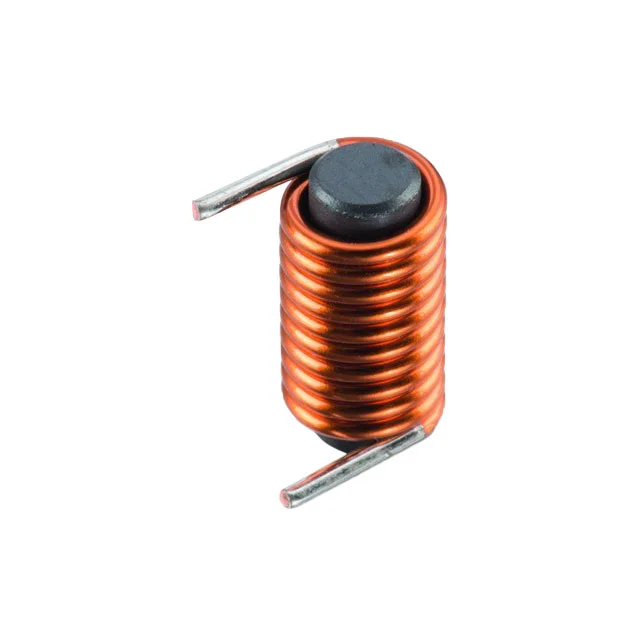

 7847132100 Würth Elektronik | 10 µH | 15 A | 5.7mOhm | 0.630" Dia x 1.213" L (16.00mm x 30.80mm) | Radial, Horizontal Cylinder (Open) |
