Induktivitäts-Datenblätter
Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
Produkteigenschaften
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 7447471100 Würth Elektronik | 10 µH | 5.1 A | 22mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471220 Würth Elektronik | 22 µH | 3.7 A | 48mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471470 Würth Elektronik | 47 µH | 3 A | 88mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |

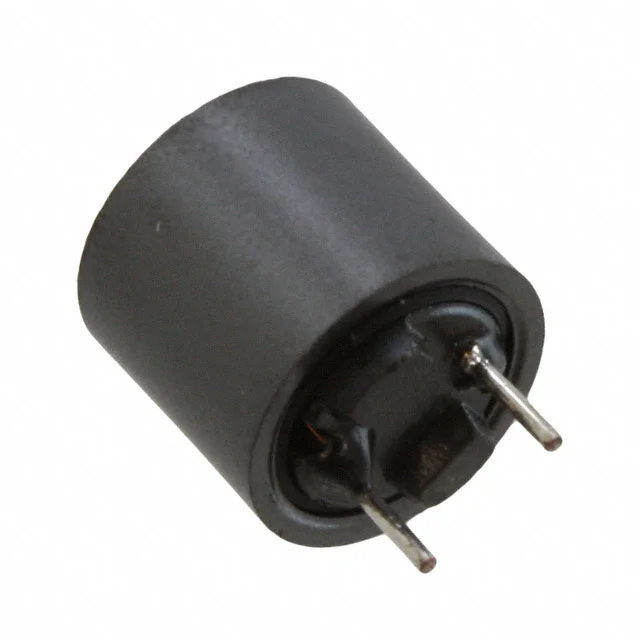

 7447471471 Würth Elektronik | 470 µH | 850 mA | 700mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471101 Würth Elektronik | 100 µH | 1.6 A | 190mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |

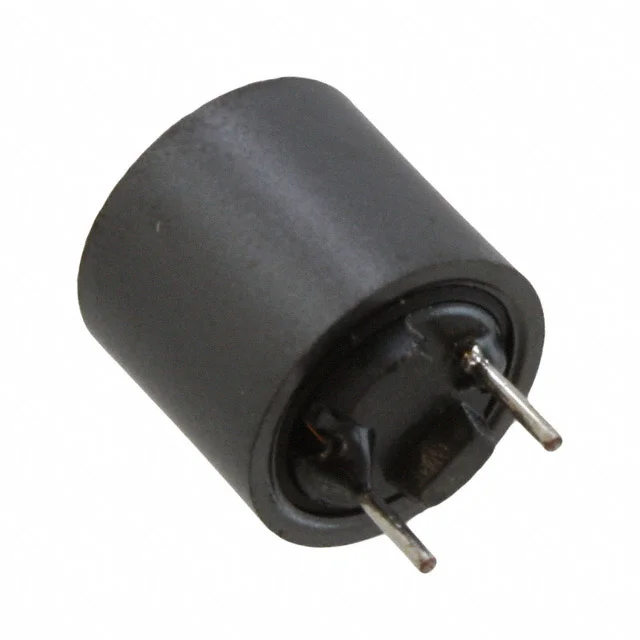

 7447471102 Würth Elektronik | 1 mH | 600 mA | 1.5Ohm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471331 Würth Elektronik | 330 µH | 1 A | 480mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 744731822 Würth Elektronik | 8.2 mH | 100 mA | 16Ohm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 744731222 Würth Elektronik | 2.2 mH | 200 mA | 4.6Ohm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 744731680 Würth Elektronik | 68 µH | 1.5 A | 200mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 744731102 Würth Elektronik | 1 mH | 350 mA | 2.3Ohm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 744731562 Würth Elektronik | 5.6 mH | 130 mA | 15.7Ohm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 744731331 Würth Elektronik | 330 µH | 650 mA | 830mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 744731471 Würth Elektronik | 470 µH | 600 mA | 1.3Ohm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 7447471330 Würth Elektronik | 33 µH | 3.6 A | 61mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471033 Würth Elektronik | 3.3 µH | 7.5 A | 10.6mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471027 Würth Elektronik | 2.7 µH | 8.2 A | 11mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 744731332 Würth Elektronik | 3.3 mH | 180 mA | 8Ohm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 7447471332 Würth Elektronik | 3.3 mH | 380 mA | 6.8Ohm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471047 Würth Elektronik | 4.7 µH | 6.9 A | 12.2mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471013 Würth Elektronik | 1.3 µH | 8.5 A | 7mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471682 Würth Elektronik | 6.8 mH | 240 mA | 10Ohm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471472 Würth Elektronik | 4.7 mH | 250 mA | 7.7Ohm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |

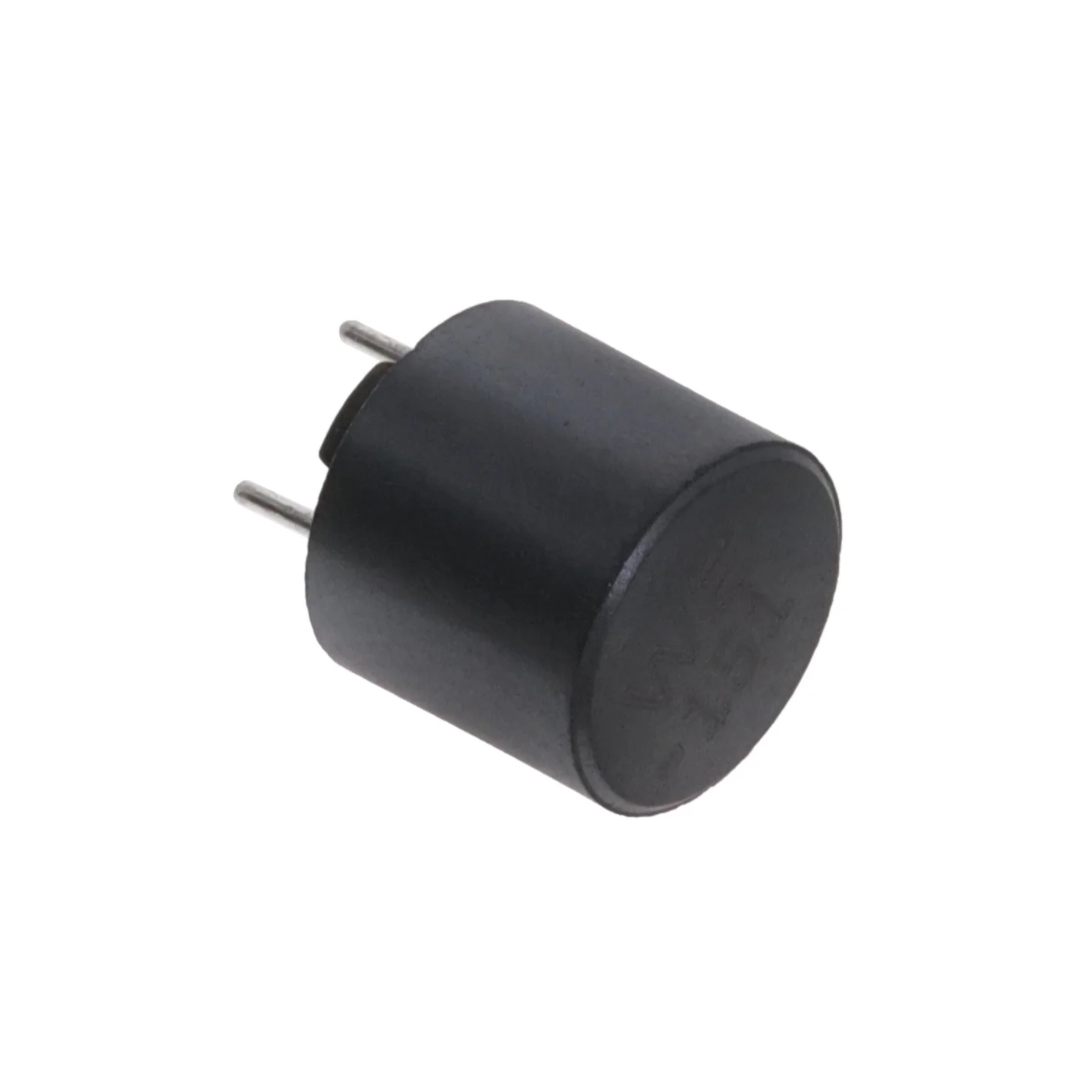

 7447471151 Würth Elektronik | 150 µH | 1.2 A | 340mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder | |
 7447471221 Würth Elektronik | 220 µH | 1.3 A | 320mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder |
