インダクタデータシート
主要メーカーのインダクタのPDFデータシートを閲覧およびダウンロード。
製品属性
| 製品 | インダクタンス | 定格電流 | 直流抵抗 | サイズ | パッケージ | アクション |
|---|---|---|---|---|---|---|
 MGTC0603CR12_ST Microgate Technology | 120 nH | 300 mA | 650mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR10_ST Microgate Technology | 100 nH | 400 mA | 580mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C36N_ST Microgate Technology | 36 nH | 600 mA | 250mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C8N2_ST Microgate Technology | 8.2 nH | 700 mA | 95mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C43N_ST Microgate Technology | 43 nH | 600 mA | 280mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C2N2_ST Microgate Technology | 2.2 nH | 100 mA | 250mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C51N_ST Microgate Technology | 51 nH | 600 mA | 270mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR11_ST Microgate Technology | 110 nH | 300 mA | 610mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C4N7_ST Microgate Technology | 4.7 nH | 700 mA | 116mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR39_ST Microgate Technology | 390 nH | 100 mA | 4.35Ohm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR27_ST Microgate Technology | 270 nH | 170 mA | 2.16Ohm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |

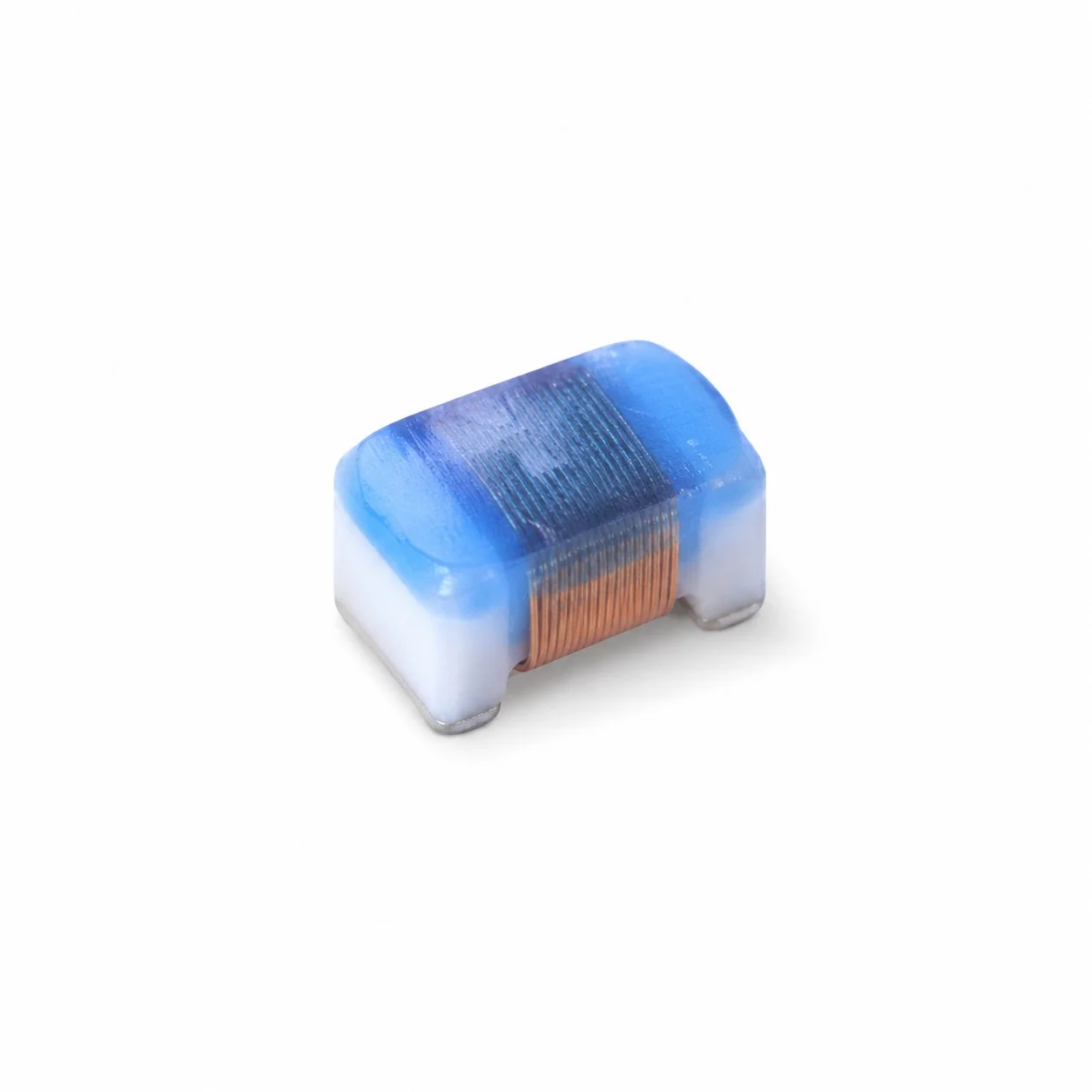

 MGTC0603C82N_ST Microgate Technology | 82 nH | 520 mA | 450mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C7N5_ST Microgate Technology | 7.5 nH | 700 mA | 106mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR21_ST Microgate Technology | 210 nH | 200 mA | 2.06Ohm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C68N_ST Microgate Technology | 68 nH | 600 mA | 340mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR13_ST Microgate Technology | 130 nH | 240 mA | 750mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C30N_ST Microgate Technology | 30 nH | 600 mA | 220mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C23N_ST Microgate Technology | 23 nH | 700 mA | 190mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR18_ST Microgate Technology | 180 nH | 240 mA | 1.25Ohm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C10N_ST Microgate Technology | 10 nH | 700 mA | 130mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C39N_ST Microgate Technology | 39 nH | 600 mA | 250mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR25_ST Microgate Technology | 250 nH | 120 mA | 3.55Ohm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR20_ST Microgate Technology | 200 nH | 200 mA | 1.98Ohm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603CR15_ST Microgate Technology | 150 nH | 280 mA | 920mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) | |
 MGTC0603C5N1_ST Microgate Technology | 5.1 nH | 700 mA | 140mOhm Max | 0.067 L x 0.043 W (1.70mm x 1.10mm) | 0603 (1608 Metric) |
