インダクタデータシート
主要メーカーのインダクタのPDFデータシートを閲覧およびダウンロード。
製品属性
| 製品 | インダクタンス | 定格電流 | 直流抵抗 | サイズ | パッケージ | アクション |
|---|---|---|---|---|---|---|
 MGTC0603P91N_ST Microgate Technology | 91 nH | 520 mA | 540mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P23N_ST Microgate Technology | 23 nH | 1.3 A | 86mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P33N_ST Microgate Technology | 33 nH | 1.1 A | 110mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P5N6_ST Microgate Technology | 5.6 nH | 1.9 A | 40mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603PR10_ST Microgate Technology | 100 nH | 490 mA | 630mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603PR30_ST Microgate Technology | 300 nH | 220 mA | 3.12Ohm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P56N_ST Microgate Technology | 56 nH | 770 mA | 260mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P15N_ST Microgate Technology | 15 nH | 1.4 A | 75mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P19N_ST Microgate Technology | 19 nH | 1.4 A | 75mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P27N_ST Microgate Technology | 27 nH | 1.2 A | 98mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P22N_ST Microgate Technology | 22 nH | 1.3 A | 86mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603PR11_ST Microgate Technology | 110 nH | 450 mA | 700mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P2N2_ST Microgate Technology | 2.2 nH | 3.2 A | 18mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P4N9_ST Microgate Technology | 4.9 nH | 1.2 A | 81mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603PR33_ST Microgate Technology | 330 nH | 190 mA | 3.84Ohm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P31N_ST Microgate Technology | 31 nH | 1.1 A | 110mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P94N_ST Microgate Technology | 94 nH | 490 mA | 630mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603PR36_ST Microgate Technology | 360 nH | 190 mA | 3.98Ohm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P28N_ST Microgate Technology | 28 nH | 1.2 A | 98mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P9N5_ST Microgate Technology | 9.5 nH | 1.6 A | 52mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P18N_ST Microgate Technology | 18 nH | 1.4 A | 75mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603PR27_ST Microgate Technology | 270 nH | 260 mA | 2.42Ohm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |

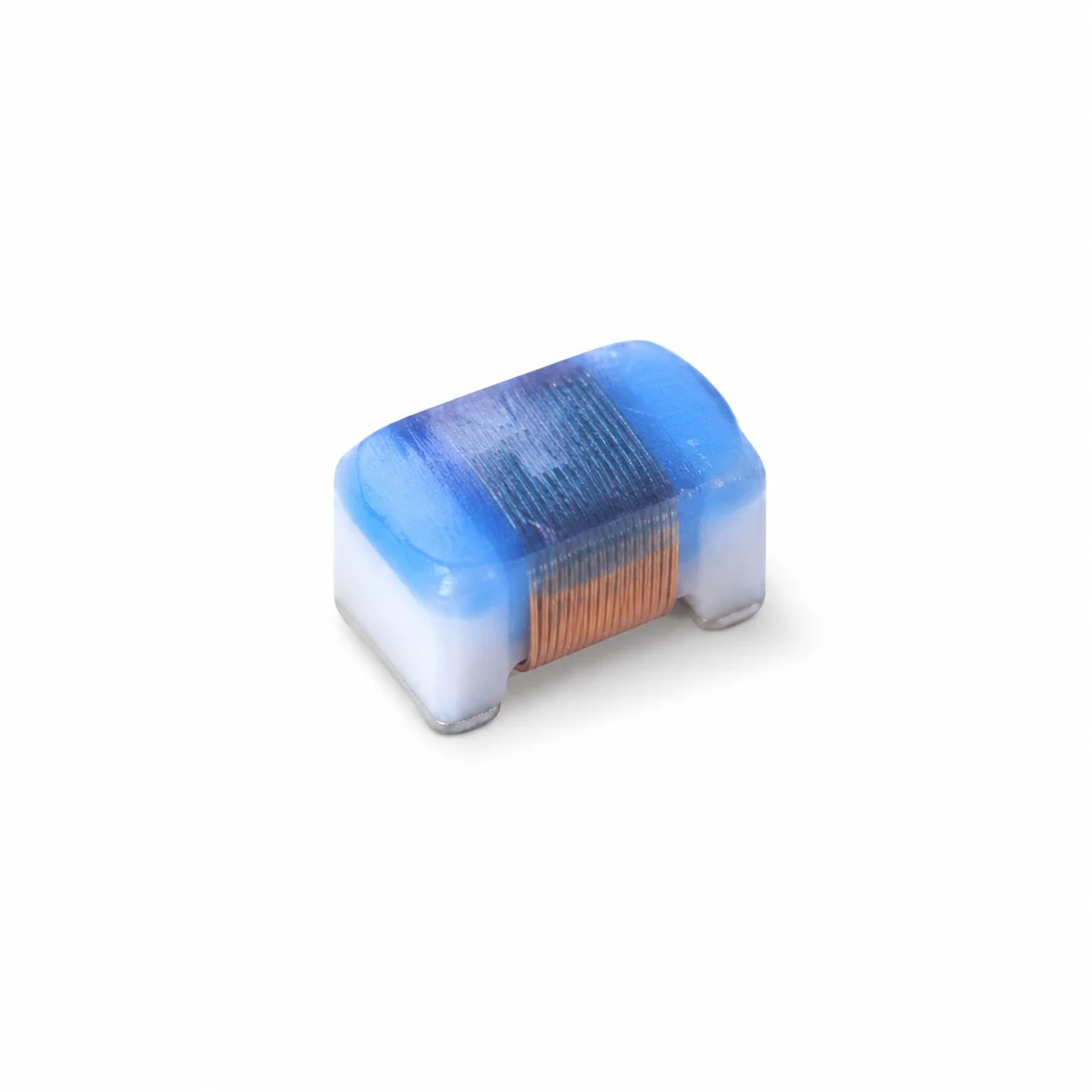

 MGTC0603P8N2_ST Microgate Technology | 8.2 nH | 1.6 A | 52mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P2N4_ST Microgate Technology | 2.4 nH | 2.4 A | 26mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 MGTC0603P30N_ST Microgate Technology | 30 nH | 1.1 A | 120mOhm Max | 0.063 L x 0.031 W (1.60mm x 0.80mm) | 0603 (1608 Metric) |
