인덕터 데이터시트

주요 제조업체의 인덕터 PDF 데이터시트를 찾아보고 다운로드하세요.

시리즈: 5500R

시리즈 표에서 등록된 사양을 비교하세요.

제품 속성

전체 Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

5500R-392K

Delevan

3.9 µH• 11.91 ANonstandard

5500R-472K

Delevan

4.7 µH• 11.14 ANonstandard

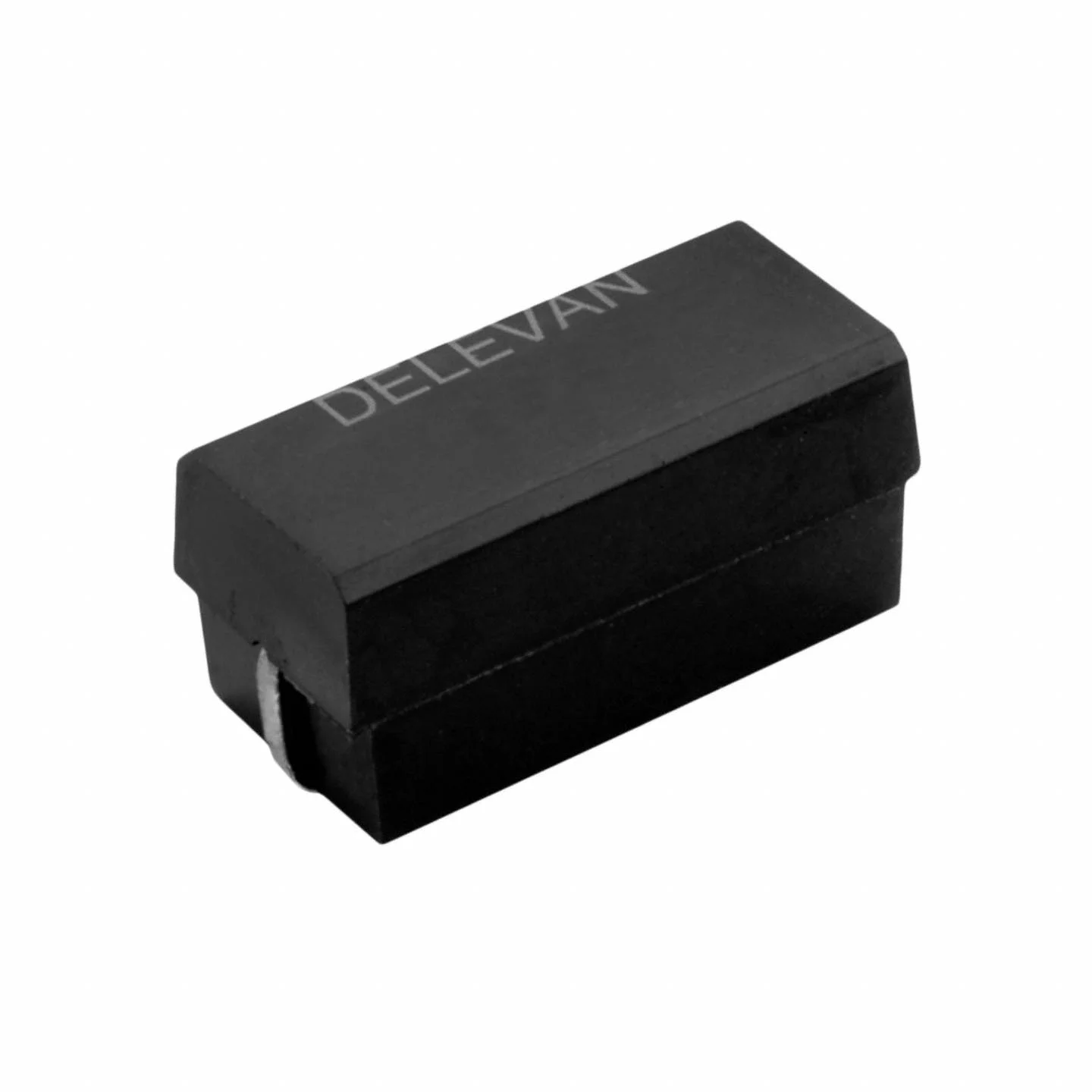

5500R-562K

Delevan

5.6 µH• 9.5 ANonstandard

5500R-682K

Delevan

6.8 µH• 9.1 ANonstandard

5500R-822K

Delevan

8.2 µH• 8.74 ANonstandard

5500R-103K

Delevan

10 µH• 7.88 ANonstandard

5500R-123K

Delevan

12 µH• 7.43 ANonstandard

5500R-153K

Delevan

15 µH• 7.05 ANonstandard

5500R-183K

Delevan

18 µH• 6.72 ANonstandard

5500R-223K

Delevan

22 µH• 6.43 ANonstandard

5500R-333K

Delevan

33 µH• 5.96 ANonstandard

5500R-393K

Delevan

39 µH• 5.66 ANonstandard

5500R-473K

Delevan

47 µH• 5.41 ANonstandard

5500R-563K

Delevan

56 µH• 4.81 ANonstandard

5500R-683K

Delevan

68 µH• 4.08 ANonstandard

5500R-823K

Delevan

82 µH• 3.88 ANonstandard

5500R-104K

Delevan

100 µH• 3.44 ANonstandard

5500R-124K

Delevan

120 µH• 2.96 ANonstandard

5500R-154K

Delevan

150 µH• 2.78 ANonstandard

5500R-184K

Delevan

180 µH• 2.57 ANonstandard

5500R-224K

Delevan

220 µH• 2.48 ANonstandard

5500R-274K

Delevan

270 µH• 2.1 ANonstandard

5500R-334K

Delevan

330 µH• 1.97 ANonstandard

5500R-394K

Delevan

390 µH• 1.86 ANonstandard

5500R-474K

Delevan

470 µH• 1.59 ANonstandard

제품	인덕턴스	전류	DCR	크기	패키지	작업
5500R-392K Delevan	3.9 µH	11.91 A	7mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-472K Delevan	4.7 µH	11.14 A	8mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-562K Delevan	5.6 µH	9.5 A	11mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-682K Delevan	6.8 µH	9.1 A	12mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-822K Delevan	8.2 µH	8.74 A	13mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-103K Delevan	10 µH	7.88 A	16mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-123K Delevan	12 µH	7.43 A	18mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-153K Delevan	15 µH	7.05 A	20mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-183K Delevan	18 µH	6.72 A	22mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-223K Delevan	22 µH	6.43 A	24mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-333K Delevan	33 µH	5.96 A	28mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-393K Delevan	39 µH	5.66 A	31mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-473K Delevan	47 µH	5.41 A	34mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-563K Delevan	56 µH	4.81 A	43mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-683K Delevan	68 µH	4.08 A	60mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-823K Delevan	82 µH	3.88 A	66mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-104K Delevan	100 µH	3.44 A	84mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-124K Delevan	120 µH	2.96 A	113mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-154K Delevan	150 µH	2.78 A	129mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-184K Delevan	180 µH	2.57 A	150mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-224K Delevan	220 µH	2.48 A	162mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-274K Delevan	270 µH	2.1 A	226mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-334K Delevan	330 µH	1.97 A	257mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-394K Delevan	390 µH	1.86 A	288mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
5500R-474K Delevan	470 µH	1.59 A	393mOhm Max	1.050" L x 0.495" W (26.67mm x 12.57mm)	Nonstandard	보기 PDF
