Duyệt và tải PDF tài liệu kỹ thuật cuộn cảm từ các nhà sản xuất hàng đầu.
| Sản Phẩm | Độ tự cảm | Định Mức Dòng Điện | Điện Trở (DCR) | Kích Thước | Gói | Hành Động |
|---|---|---|---|---|---|---|
| 22 µH | 730 mA | 660mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 100 µH | 470 mA | 2.4Ohm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 100 µH | 470 mA | 2.04Ohm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 15 µH | 1.28 A | 312mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 15 µH | 1.06 A | 372mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 10 µH | 1.16 A | 252mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 22 µH | 870 mA | 540mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 47 µH | 630 mA | 1.2Ohm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 2.2 µH | 2.72 A | 72mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 1.5 µH | 2.96 A | 60mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 1 µH | 3.44 A | 48mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 1.5 µH | 2.88 A | 60mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 22 µH | 1.04 A | 432mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 33 µH | 580 mA | 888mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 3.3 µH | 1.79 A | 101mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 68 µH | 570 mA | 1.72Ohm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 3.3 µH | 2.4 A | 96mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||
| 3.3 µH | 2.4 A | 96mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) | ||

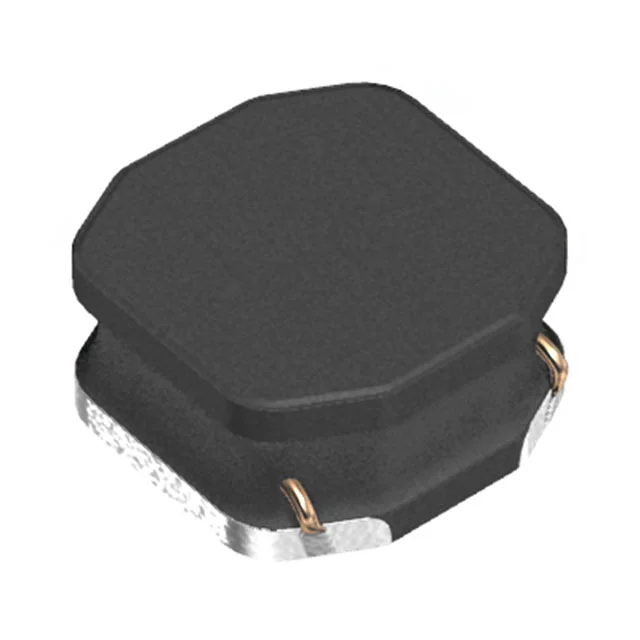

| 100 µH | 300 mA | 2.544Ohm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 2.2 µH | 2.14 A | 60mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||

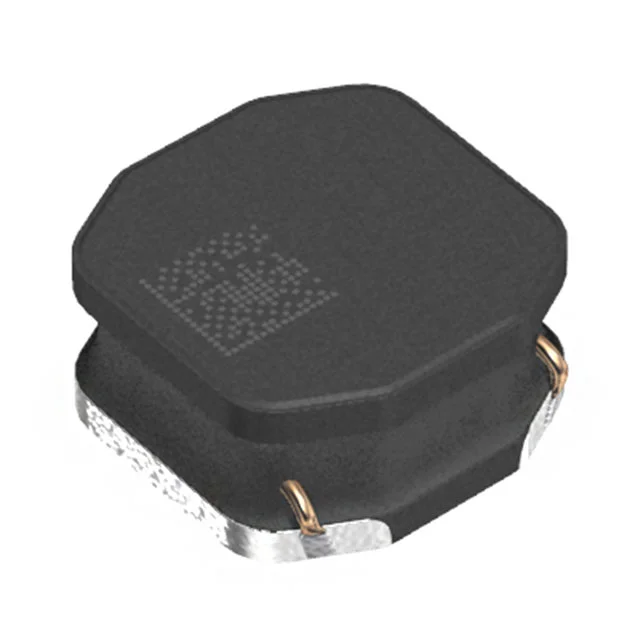

| 4.7 µH | 1.7 A | 120mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 10 µH | 900 mA | 286mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 47 µH | 480 mA | 1.392Ohm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 6.8 µH | 1.08 A | 192mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | Nonstandard | ||
| 33 µH | 760 mA | 804mOhm Max | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 1616 (4040 Metric) |
