电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|

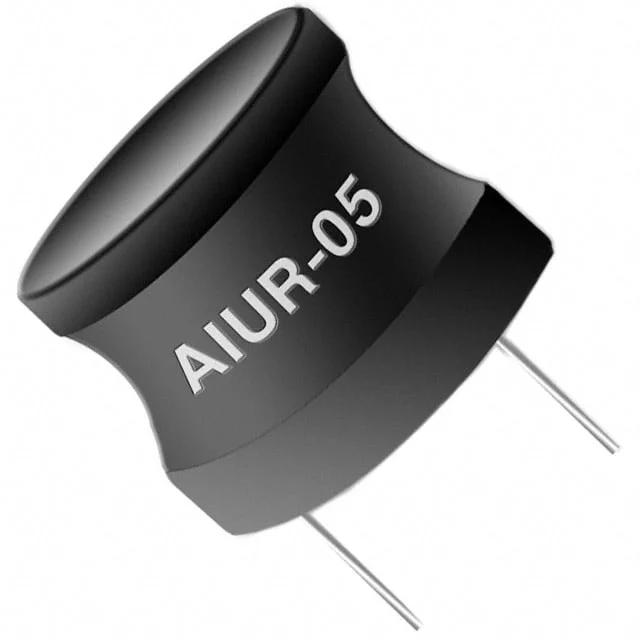

 AIUR-05-221K Abracon | 220 µH | 380 mA | 530mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |

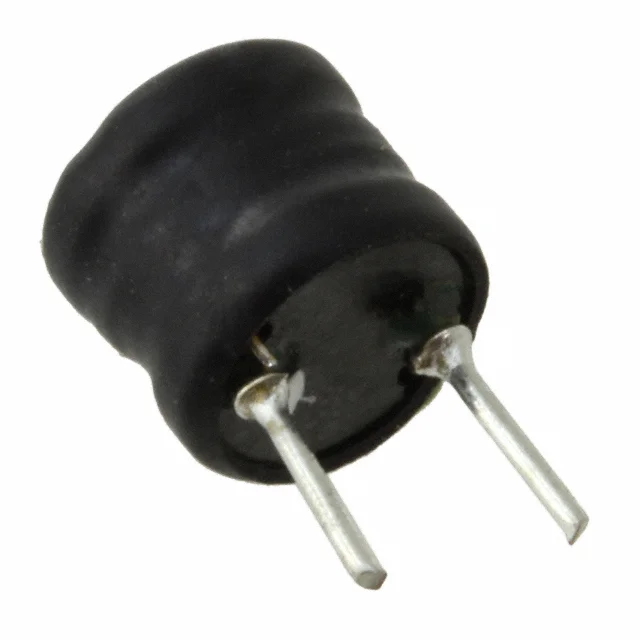

 AIUR-05-3R3M Abracon | 3.3 µH | 2.8 A | 13mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-471K Abracon | 470 µH | 280 mA | 1Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-100K Abracon | 10 µH | 2.1 A | 31mOhm Max | - | Through Hole | |
 AIUR-05-4R7M Abracon | 4.7 µH | 2.7 A | 17mOhm Max | - | Through Hole | |
 AIUR-05-6R8M Abracon | 6.8 µH | 2.3 A | 22mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-150K Abracon | 15 µH | 1.4 A | 42mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-220K Abracon | 22 µH | 1.2 A | 70mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-330K Abracon | 33 µH | 1 A | 92mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-470K Abracon | 47 µH | 900 mA | 130mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-680K Abracon | 68 µH | 630 mA | 160mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-101K Abracon | 100 µH | 590 mA | 230mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-151K Abracon | 150 µH | 460 mA | 400mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-331K Abracon | 330 µH | 300 mA | 780mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-681K Abracon | 680 µH | 220 mA | 1.5Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-102K Abracon | 1 mH | 180 mA | 2.2Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 AIUR-05-152K Abracon | 1.5 mH | 150 mA | 3.5Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
AIUR-05-2R2M Abracon | 2.2 µH | 5 A | 12mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
AIUR-05-6R8K Abracon | 6.8 µH | 2.3 A | 22mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder |
