系列：CTDO3340PF

进入系列参数表，对照已有规格。

产品属性

全部 Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

Central Technologies

33 µH• 2 ANonstandard

Central Technologies

330 µH• 600 mANonstandard

Central Technologies

680 µH• 200 mANonstandard

Central Technologies

15 µH• 3 ANonstandard

Central Technologies

10 µH• 3.5 ANonstandard

Central Technologies

220 µH• 700 mANonstandard

Central Technologies

100 µH• 1.2 ANonstandard

Central Technologies

1 mH• 100 mANonstandard

Central Technologies

22 µH• 2.5 ANonstandard

Central Technologies

47 µH• 1.6 ANonstandard

Central Technologies

68 µH• 1.2 ANonstandard

产品	电感	当前	DCR	尺寸	封装	操作
CTDO3340PF-333 Central Technologies	33 µH	2 A	80mOhm Max	0.510" L x 0.370" W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-334 Central Technologies	330 µH	600 mA	700mOhm Max	0.510" L x 0.370" W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-684 Central Technologies	680 µH	200 mA	1.2Ohm	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-153 Central Technologies	15 µH	3 A	40mOhm Max	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-103 Central Technologies	10 µH	3.5 A	30mOhm Max	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-224 Central Technologies	220 µH	700 mA	440mOhm Max	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-104 Central Technologies	100 µH	1.2 A	220mOhm Max	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-105 Central Technologies	1 mH	100 mA	2Ohm	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看

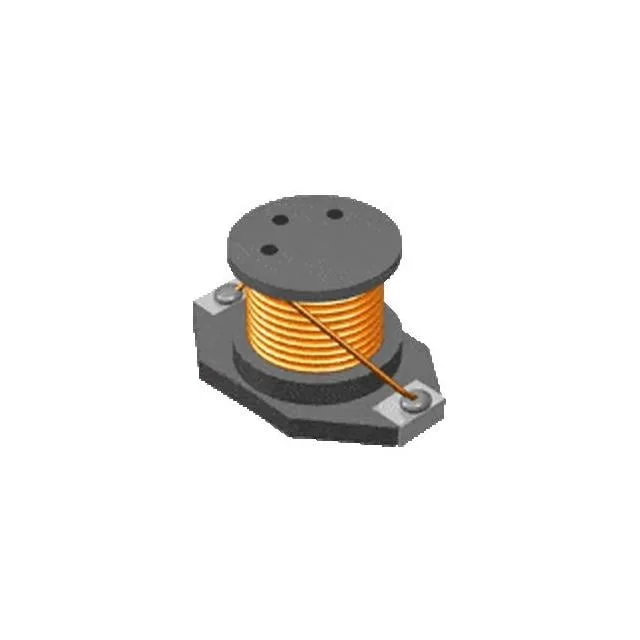

CTDO3340PF-223 Central Technologies	22 µH	2.5 A	50mOhm Max	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-473 Central Technologies	47 µH	1.6 A	100mOhm Max	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
CTDO3340PF-683 Central Technologies	68 µH	1.2 A	170mOhm Max	0.510 L x 0.370 W (12.95mm x 9.40mm)	Nonstandard	查看
