电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
系列：IHLP1212-EZ-1Z
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 IHLP1212BZEZ1R5M1Z Vishay Dale | 1.5 µH | 7.1 A | 25.2mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |

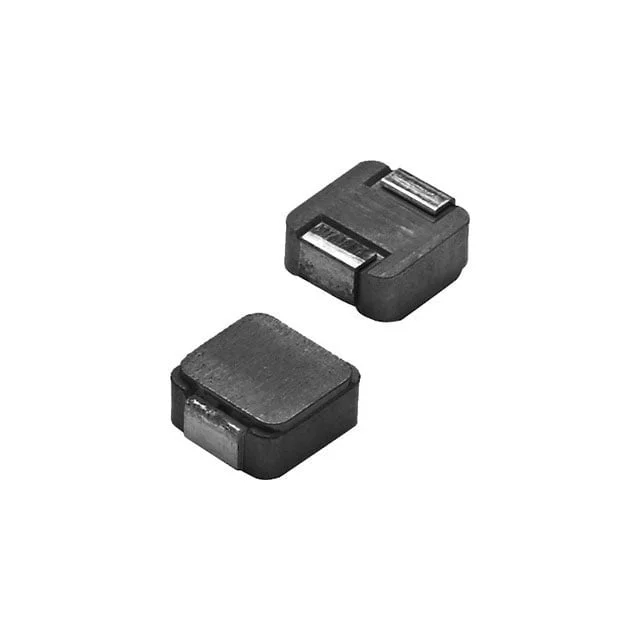

 IHLP1212BZEZR22M1Z Vishay Dale | 220 nH | 11.1 A | 10.3mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212AEEZ1R0M1Z Vishay Dale | 1 µH | 6.5 A | 29.7mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212ABEZ1R0M1Z Vishay Dale | 1 µH | 6.1 A | 33.8mOhm Max | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212AEEZR33M1Z Vishay Dale | 330 nH | 10.1 A | 12.4mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212AEEZ1R5M1Z Vishay Dale | 1.5 µH | 5.5 A | 41.4mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZR36M1Z Vishay Dale | 360 nH | 10.1 A | 12.4mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212AEEZR47M1Z Vishay Dale | 470 nH | 9.7 A | 13.5mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZ3R3M1Z Vishay Dale | 3.3 µH | 4.5 A | 54.9mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZ2R2M1Z Vishay Dale | 2.2 µH | 5.7 A | 40.5mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZ1R0M1Z Vishay Dale | 1 µH | 8.4 A | 20mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212ABEZR68M1Z Vishay Dale | 680 nH | 7.5 A | 22.5mOhm Max | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212ABEZR47M1Z Vishay Dale | 470 nH | 8.5 A | 17.6mOhm Max | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212ABEZR33M1Z Vishay Dale | 330 nH | 9.9 A | 12.9mOhm Max | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212ABEZR22M1Z Vishay Dale | 220 nH | 11.1 A | 10.3mOhm Max | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212ABEZR56M1Z Vishay Dale | 560 nH | 8 A | 19.8mOhm Max | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212AEEZR68M1Z Vishay Dale | 680 nH | 8 A | 19.8mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZ1R2M1Z Vishay Dale | 1.2 µH | 7.3 A | 23.4mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |

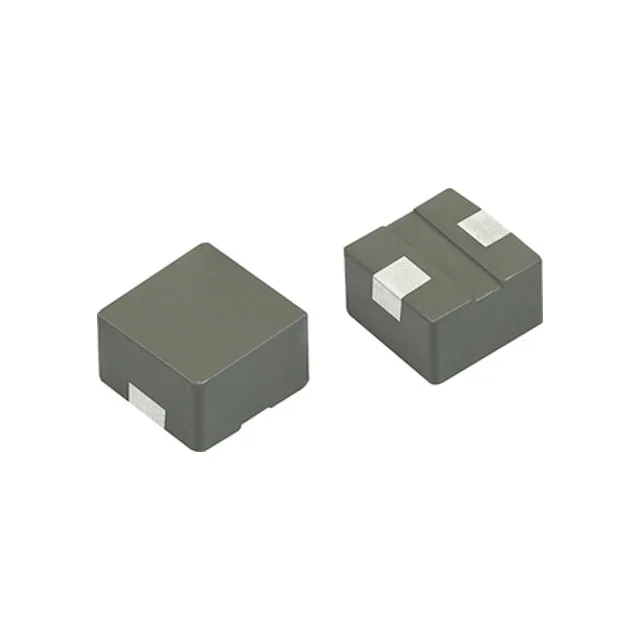

 IHLP1212AEEZR82M1Z Vishay Dale | 820 nH | 7.3 A | 23.4mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZR68M1Z Vishay Dale | 680 nH | 8.9 A | 15.8mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212AEEZR22M1Z Vishay Dale | 220 nH | 11.1 A | 10.3mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212AEEZR56M1Z Vishay Dale | 560 nH | 8.3 A | 18.4mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZR56M1Z Vishay Dale | 560 nH | 9.2 A | 14.9mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) | |
 IHLP1212BZEZR88M1Z Vishay Dale | 880 nH | 8.7 A | 16.7mOhm Max | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 1212 (3030 Metric) |
