电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
系列：LSCN
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 LSCND1412FETR24MG Taiyo Yuden | 240 nH | 4.3 A | 24mOhm Max | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0505 (1412 Metric) | |
 LSCNA1608FKT1R0MA Taiyo Yuden | 1 µH | 900 mA | 224mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 LSCNB1608HKTR47MD Taiyo Yuden | 470 nH | 2.7 A | 43mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 LSCNB1005EETR10MB Taiyo Yuden | 100 nH | 2 A | 50mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 LSCNE2012HKTR11MD Taiyo Yuden | 110 nH | 5.8 A | 12mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |

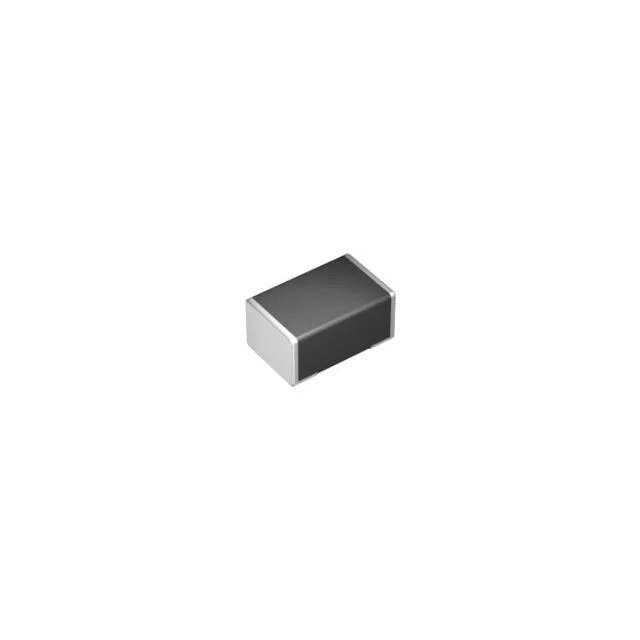

 LSCNA2012HKTR47MA Taiyo Yuden | 470 nH | 3.15 A | 36mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 LSCNA2012KKTR47MA Taiyo Yuden | 470 nH | 3.1 A | 39mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 LSCNA2012KKT1R0MA Taiyo Yuden | 1 µH | 2.1 A | 90mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 LSCNB1210EKTR47MB Taiyo Yuden | 470 nH | 1.6 A | 82mOhm Max | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0504 (1210 Metric) | |
 LSCNA2012KKTR24MA Taiyo Yuden | 240 nH | 4 A | 25mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
LSCND2012HKTR47MD Taiyo Yuden | 470 nH | 4 A | 26mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
LSCND1412FETR33MC Taiyo Yuden | 330 nH | 3.7 A | 32mOhm Max | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0505 (1412 Metric) | |
LSCND1412FETR47MC Taiyo Yuden | 470 nH | 3.1 A | 42mOhm Max | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0505 (1412 Metric) | |
 LSCNA1608FKTR24MA Taiyo Yuden | 240 nH | 2.1 A | 50mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 LSCNE1608FETR47MA Taiyo Yuden | 470 nH | 1.2 A | 150mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 LSCNE1608FETR24MA Taiyo Yuden | 240 nH | 1.5 A | 100mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 LSCNB1608HKT2R2MD Taiyo Yuden | 2.2 µH | 1.2 A | 292mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 LSCNB1608HKT1R0MD Taiyo Yuden | 1 µH | 1.6 A | 110mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |

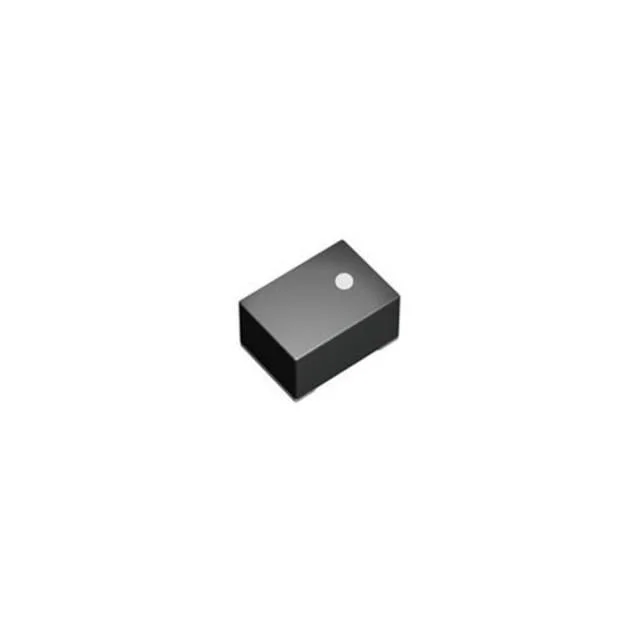

 LSCND1608HKT2R2MF Taiyo Yuden | 2.2 µH | 1.4 A | 250mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |

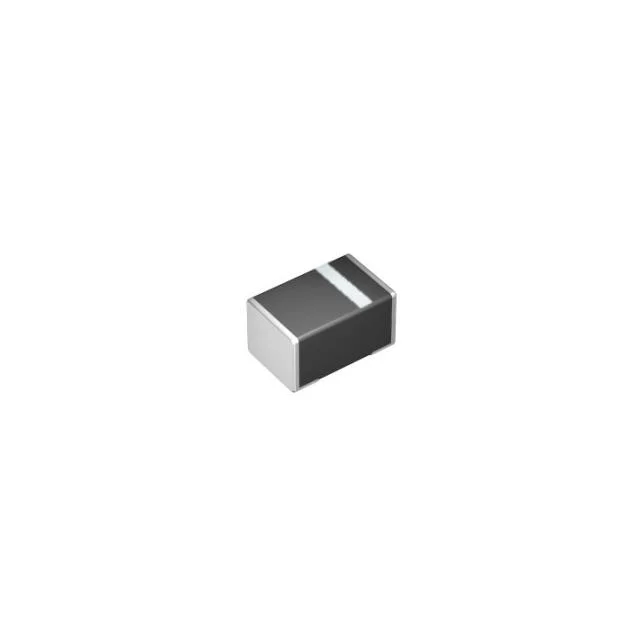

 LSCNB1608KKT1R0MA Taiyo Yuden | 1 µH | 1.3 A | 123mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |

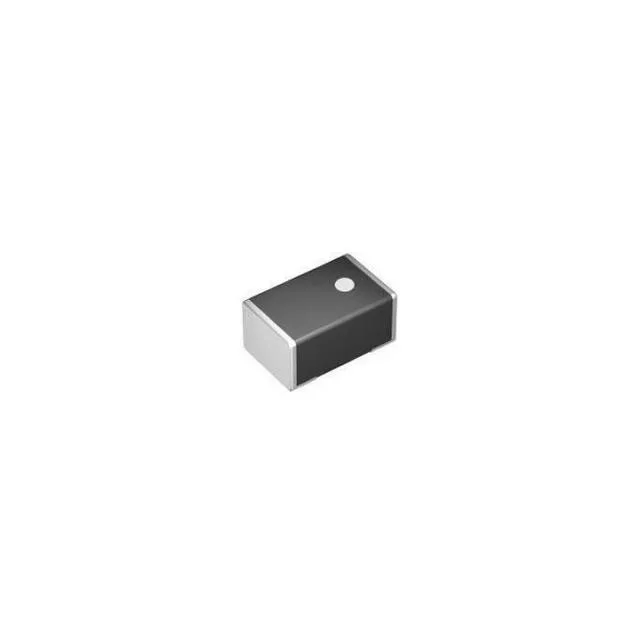

 LSCNB1608HKT1R5MD Taiyo Yuden | 1.5 µH | 1.3 A | 200mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 LSCNB1005EET1R0MB Taiyo Yuden | 1 µH | 800 mA | 300mOhm Max | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0402 (1005 Metric) | |
 LSCND1412HKTR33MF Taiyo Yuden | 330 nH | 4 A | 27mOhm Max | 0.055" L x 0.047" W (1.40mm x 1.20mm) | 0505 (1412 Metric) | |
 LSCND1006HKT2R2MF Taiyo Yuden | 2.2 µH | 600 mA | 375mOhm Max | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0402 (1005 Metric) | |
 LSCNB1608KKTR47MA Taiyo Yuden | 470 nH | 2 A | 55mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) |
