电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
系列：MPCH
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 MPCH0730LR12 KEMET | 120 nH | 31 A | 0.65mOhm | 0.315" L x 0.264" W (8.00mm x 6.70mm) | Nonstandard | |
 MPCH1060LR45 KEMET | 450 nH | 32 A | 0.76mOhm | 0.472" L x 0.394" W (12.00mm x 10.00mm) | Nonstandard | |
 MPCH0730LR24 KEMET | 240 nH | 23 A | 1.2mOhm | 0.315" L x 0.264" W (8.00mm x 6.70mm) | Nonstandard | |

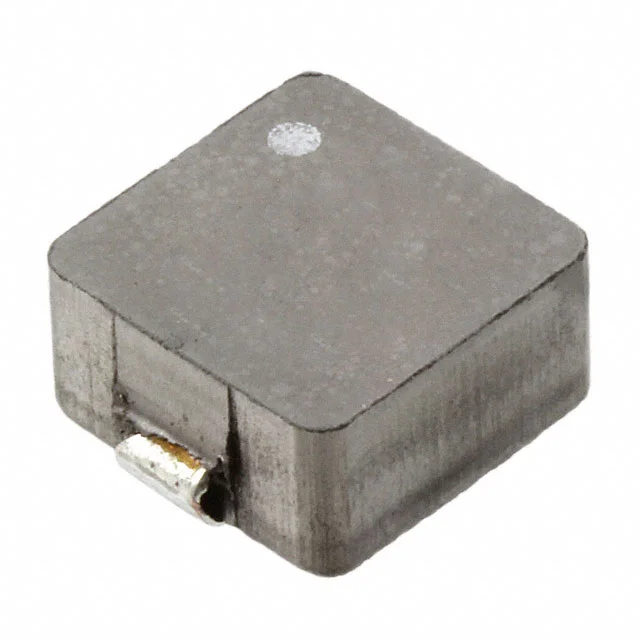

 MPCH1055L1R3 KEMET | 1.3 µH | 18.5 A | 2.3mOhm | 0.461" L x 0.394" W (11.70mm x 10.00mm) | Nonstandard | |
 MPCH1040L1R0 KEMET | 1 µH | 17 A | 2.3mOhm | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard | |

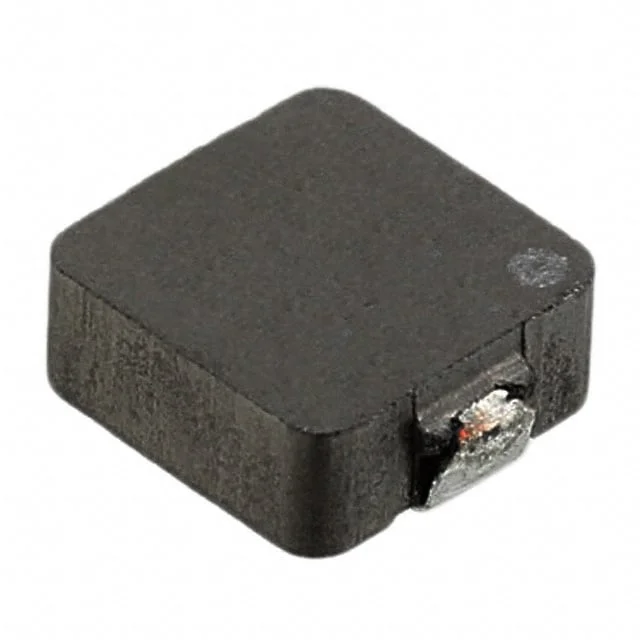

 MPCH0740LR26 KEMET | 260 nH | - | - | 0.315" L x 0.264" W (8.00mm x 6.70mm) | Nonstandard | |

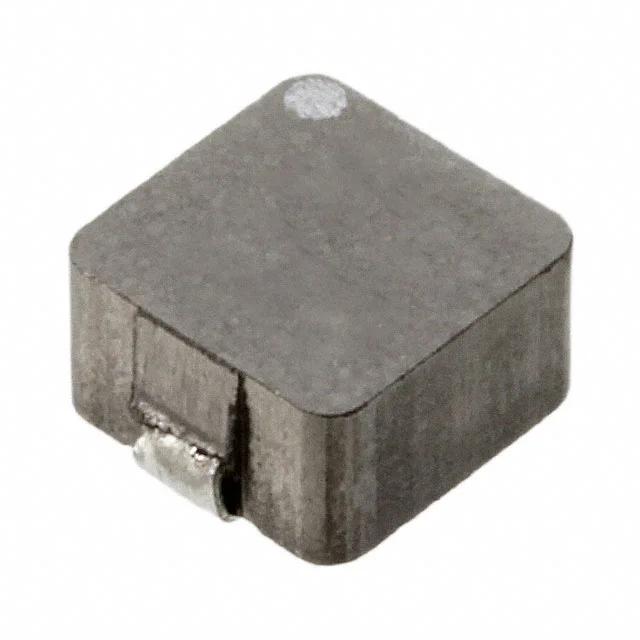

 MPCH0740LR15 KEMET | 150 nH | 29 A | 0.93mOhm | 0.315" L x 0.264" W (8.00mm x 6.70mm) | Nonstandard | |

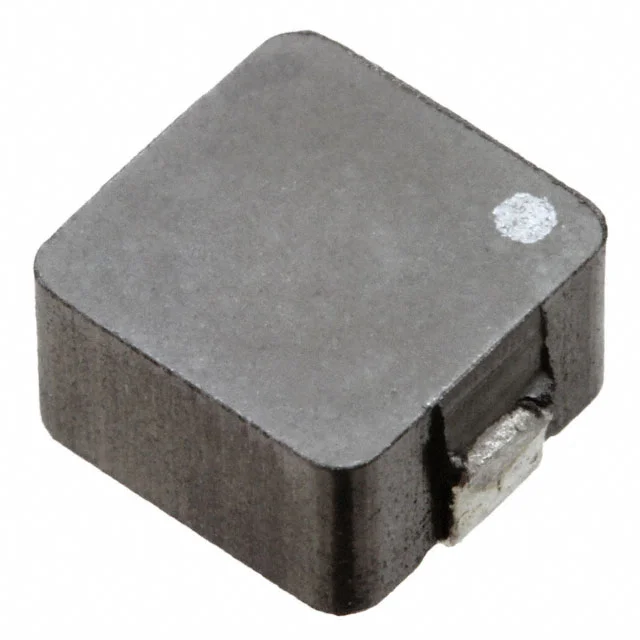

 MPCH0740LR24 KEMET | 240 nH | 27 A | 1mOhm | 0.315" L x 0.264" W (8.00mm x 6.70mm) | Nonstandard | |

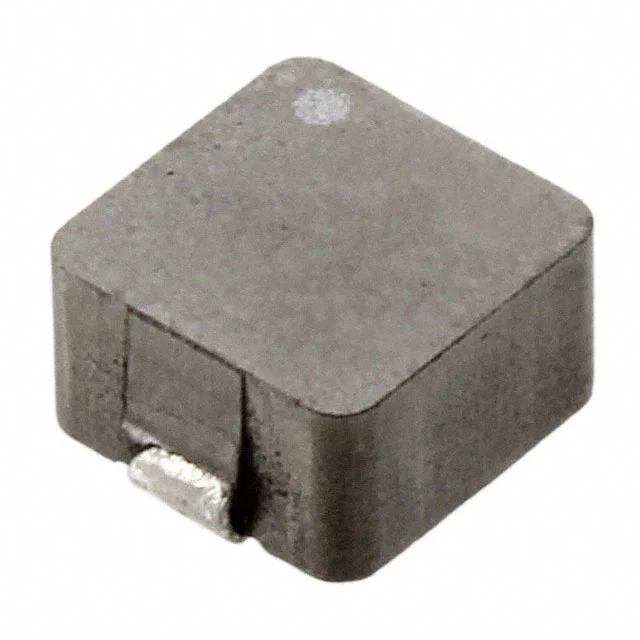

 MPCH0740LR36E KEMET | 360 nH | 23 A | 1.42mOhm | 0.315" L x 0.264" W (8.00mm x 6.70mm) | Nonstandard | |

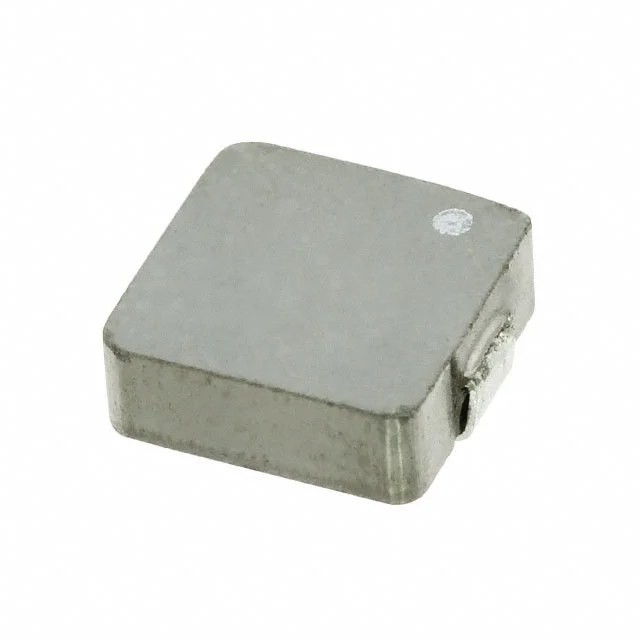

 MPCH1040LR36 KEMET | 360 nH | 28 A | 0.88mOhm | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard | |
 MPCH1040LR68 KEMET | 680 nH | 22 A | 1.35mOhm | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 MPCH1250L1R5 KEMET | 1.5 µH | 21 A | 2.2mOhm Max | 0.563" L x 0.492" W (14.30mm x 12.50mm) | Nonstandard |
