电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 MPLCV0654L220 KEMET | 22 µH | 3 A | 94mOhm | 0.311" L x 0.264" W (7.90mm x 6.70mm) | Nonstandard | |
 MPLCV0645L100 KEMET | 10 µH | 4 A | 45mOhm | 0.311" L x 0.264" W (7.90mm x 6.70mm) | Nonstandard | |
 MPLCV0654L330 KEMET | 33 µH | 2.6 A | 140mOhm | 0.311" L x 0.264" W (7.90mm x 6.70mm) | Nonstandard | |
 MPLCV1054L220 KEMET | 22 µH | 5.5 A | 47mOhm | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard | |

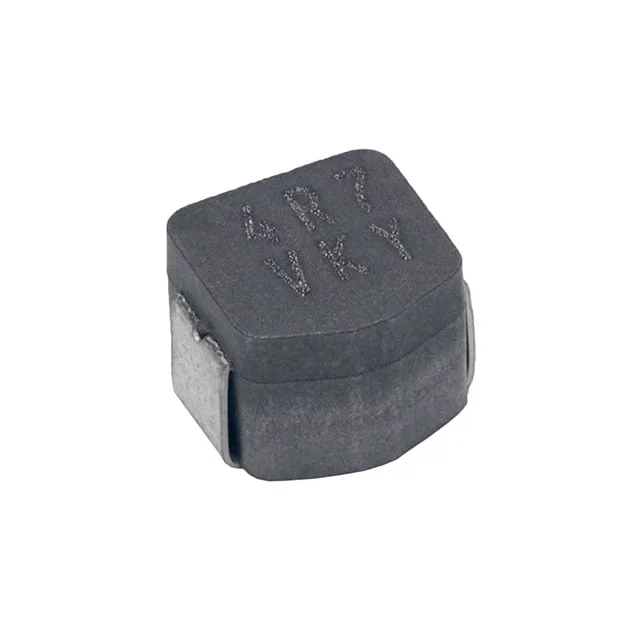

 MPLCV0654L4R7 KEMET | 4.7 µH | 6.3 A | 20mOhm | 0.311" L x 0.264" W (7.90mm x 6.70mm) | Nonstandard | |
 MPLCV0654L470 KEMET | 47 µH | 2.1 A | 175mOhm | 0.311" L x 0.264" W (7.90mm x 6.70mm) | Nonstandard | |
 MPLCV1054L100 KEMET | 10 µH | 7.1 A | 25mOhm | 0.453" L x 0.394" W (11.50mm x 10.00mm) | Nonstandard |
