电感数据手册

浏览并下载来自领先制造商的电感的 PDF 数据手册。

产品属性

全部 Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

PA4304.102NLT

Pulse Electronics

1 µH• 8.5 ANonstandard

PA4304.105NLT

Pulse Electronics

1 mH• 360 mANonstandard

PA4304.122NLT

Pulse Electronics

1.2 µH• 8 ANonstandard

PA4304.123NLT

Pulse Electronics

12 µH• 3.5 ANonstandard

PA4304.124NLT

Pulse Electronics

120 µH• 1.1 ANonstandard

PA4304.152NLT

Pulse Electronics

1.5 µH• 7.5 ANonstandard

PA4304.154NLT

Pulse Electronics

150 µH• 1 ANonstandard

PA4304.182NLT

Pulse Electronics

1.8 µH• 7 ANonstandard

PA4304.183NLT

Pulse Electronics

18 µH• 3 ANonstandard

PA4304.184NLT

Pulse Electronics

180 µH• 900 mANonstandard

PA4304.222NLT

Pulse Electronics

2.2 µH• 6.5 ANonstandard

PA4304.223NLT

Pulse Electronics

22 µH• 2.8 ANonstandard

PA4304.224NLT

Pulse Electronics

220 µH• 800 mANonstandard

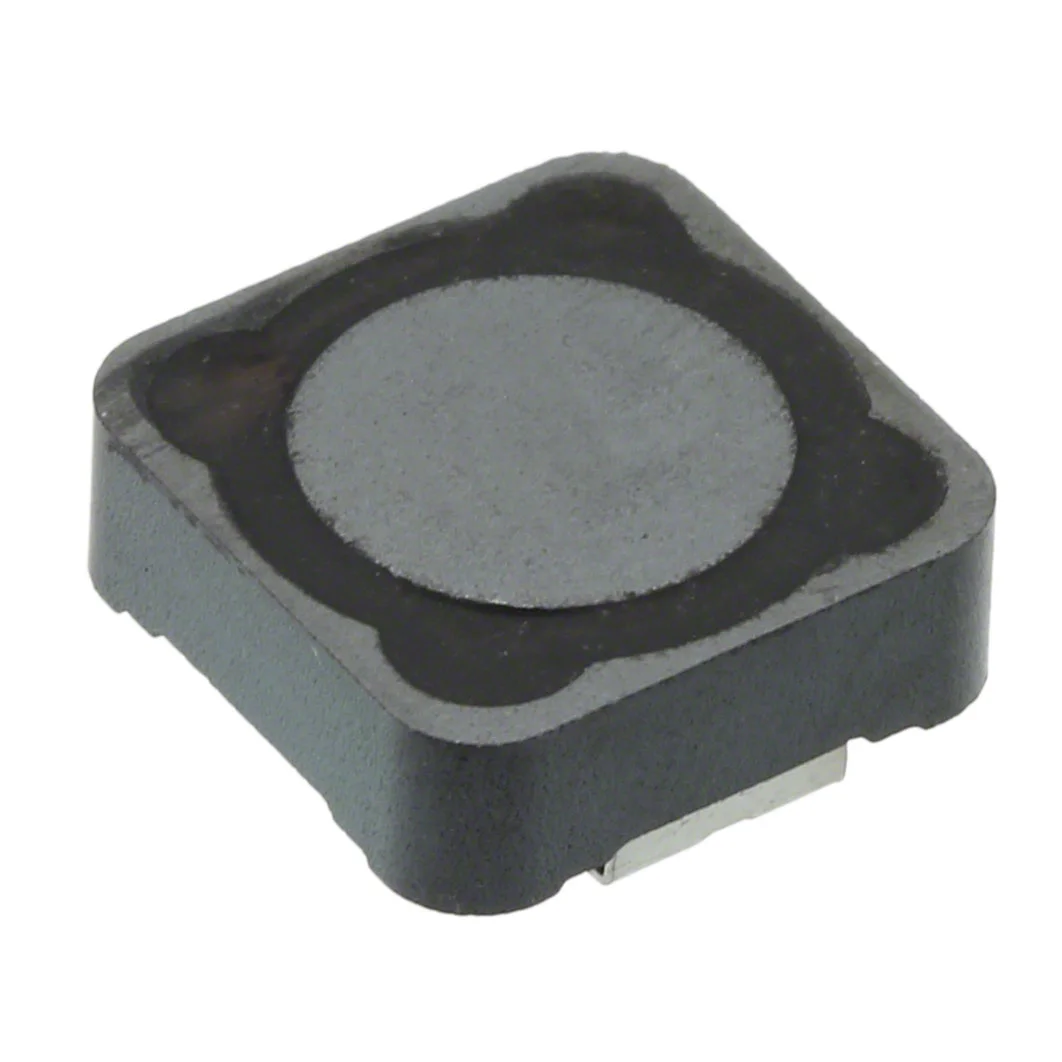

PA4304.272NLT

Pulse Electronics

2.7 µH• 6.1 ANonstandard

PA4304.273NLT

Pulse Electronics

27 µH• 2.3 ANonstandard

PA4304.274NLT

Pulse Electronics

270 µH• 750 mANonstandard

PA4304.332NLT

Pulse Electronics

3.3 µH• 5.7 ANonstandard

PA4304.333NLT

Pulse Electronics

33 µH• 2.1 ANonstandard

PA4304.334NLT

Pulse Electronics

330 µH• 680 mANonstandard

PA4304.392NLT

Pulse Electronics

3.9 µH• 5.25 ANonstandard

PA4304.394NLT

Pulse Electronics

390 µH• 650 mANonstandard

PA4304.472NLT

Pulse Electronics

4.7 µH• 4.7 ANonstandard

PA4304.473NLT

Pulse Electronics

47 µH• 1.8 ANonstandard

PA4304.474NLT

Pulse Electronics

470 µH• 580 mANonstandard

PA4304.562NLT

Pulse Electronics

5.6 µH• 4.7 ANonstandard

产品	电感	当前	DCR	尺寸	封装	操作
PA4304.102NLT Pulse Electronics	1 µH	8.5 A	11mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.105NLT Pulse Electronics	1 mH	360 mA	2.27Ohm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.122NLT Pulse Electronics	1.2 µH	8 A	12mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.123NLT Pulse Electronics	12 µH	3.5 A	27mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.124NLT Pulse Electronics	120 µH	1.1 A	170mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.152NLT Pulse Electronics	1.5 µH	7.5 A	13mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.154NLT Pulse Electronics	150 µH	1 A	230mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.182NLT Pulse Electronics	1.8 µH	7 A	14mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.183NLT Pulse Electronics	18 µH	3 A	34mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.184NLT Pulse Electronics	180 µH	900 mA	290mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.222NLT Pulse Electronics	2.2 µH	6.5 A	15.5mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.223NLT Pulse Electronics	22 µH	2.8 A	50mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.224NLT Pulse Electronics	220 µH	800 mA	400mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.272NLT Pulse Electronics	2.7 µH	6.1 A	16.5mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.273NLT Pulse Electronics	27 µH	2.3 A	51mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.274NLT Pulse Electronics	270 µH	750 mA	460mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.332NLT Pulse Electronics	3.3 µH	5.7 A	18mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.333NLT Pulse Electronics	33 µH	2.1 A	57mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.334NLT Pulse Electronics	330 µH	680 mA	510mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.392NLT Pulse Electronics	3.9 µH	5.25 A	19.5mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.394NLT Pulse Electronics	390 µH	650 mA	690mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.472NLT Pulse Electronics	4.7 µH	4.7 A	20.5mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.473NLT Pulse Electronics	47 µH	1.8 A	75mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.474NLT Pulse Electronics	470 µH	580 mA	770mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
PA4304.562NLT Pulse Electronics	5.6 µH	4.7 A	21mOhm Max	0.492" L x 0.492" W (12.50mm x 12.50mm)	Nonstandard	查看 PDF
