RL181S-822J-RC
Bourns Inc.
- 电感
- 8.2 mH
- 电流
- 30 mA
- DCR
- 10.4Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
系列：RL181S
进入系列参数表，对照已有规格。
RL181S
RL181S-122J-RC
Bourns Inc.
- 电感
- 1.2 mH
- 电流
- 75 mA
- DCR
- 3.7Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-123J-RC
Bourns Inc.
- 电感
- 12 mH
- 电流
- 25 mA
- DCR
- 12Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-272J-RC
Bourns Inc.
- 电感
- 2.7 mH
- 电流
- 55 mA
- DCR
- 5.8Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-563J-RC
Bourns Inc.
- 电感
- 56 mH
- 电流
- 12 mA
- DCR
- 58Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-152J-RC
Bourns Inc.
- 电感
- 1.5 mH
- 电流
- 70 mA
- DCR
- 4Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-562J-RC
Bourns Inc.
- 电感
- 5.6 mH
- 电流
- 40 mA
- DCR
- 8.4Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-473J-RC
Bourns Inc.
- 电感
- 47 mH
- 电流
- 13 mA
- DCR
- 52Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-183J-RC
Bourns Inc.
- 电感
- 18 mH
- 电流
- 21 mA
- DCR
- 17Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-823J-RC
Bourns Inc.
- 电感
- 82 mH
- 电流
- 10 mA
- DCR
- 71Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-222J-RC
Bourns Inc.
- 电感
- 2.2 mH
- 电流
- 60 mA
- DCR
- 5.2Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-683J-RC
Bourns Inc.
- 电感
- 68 mH
- 电流
- 11 mA
- DCR
- 67Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-182J-RC
Bourns Inc.
- 电感
- 1.8 mH
- 电流
- 65 mA
- DCR
- 4.5Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-103J-RC
Bourns Inc.
- 电感
- 10 mH
- 电流
- 25 mA
- DCR
- 12.1Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-102J-RC
Bourns Inc.
- 电感
- 1 mH
- 电流
- 90 mA
- DCR
- 3.4Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-472J-RC
Bourns Inc.
- 电感
- 4.7 mH
- 电流
- 40 mA
- DCR
- 7.5Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-333J-RC
Bourns Inc.
- 电感
- 33 mH
- 电流
- 17 mA
- DCR
- 26Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-393J-RC
Bourns Inc.
- 电感
- 39 mH
- 电流
- 15 mA
- DCR
- 45Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-682J-RC
Bourns Inc.
- 电感
- 6.8 mH
- 电流
- 35 mA
- DCR
- 9.7Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-104J-RC
Bourns Inc.
- 电感
- 100 mH
- 电流
- 9 mA
- DCR
- 82Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)

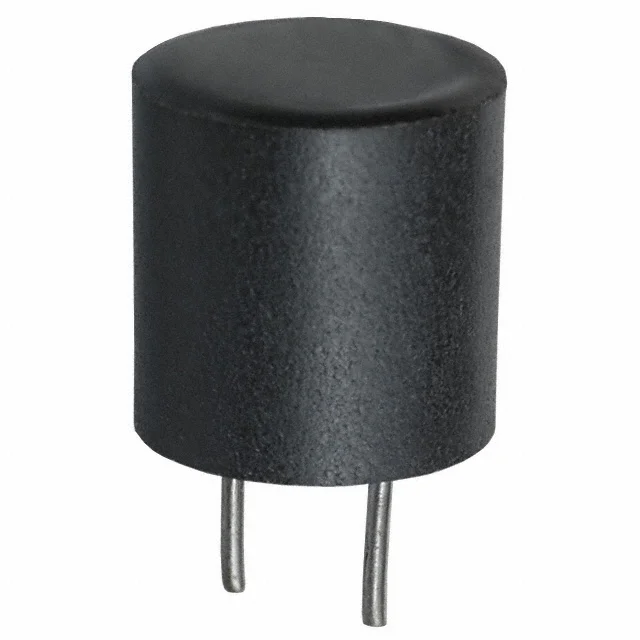

RL181S-332J-RC
Bourns Inc.
- 电感
- 3.3 mH
- 电流
- 50 mA
- DCR
- 6.1Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-124J-RC
Bourns Inc.
- 电感
- 120 mH
- 电流
- 8 mA
- DCR
- 97Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-223J-RC
Bourns Inc.
- 电感
- 22 mH
- 电流
- 20 mA
- DCR
- 19.5Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
RL181S-153J-RC
Bourns Inc.
- 电感
- 15 mH
- 电流
- 22 mA
- DCR
- 15Ohm Max
- 尺寸
- 0.413" Dia (10.50mm)
| 产品 | 电感 | 电流 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
RL181S-822J-RC Bourns Inc. | 8.2 mH | 30 mA | 10.4Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-122J-RC Bourns Inc. | 1.2 mH | 75 mA | 3.7Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-123J-RC Bourns Inc. | 12 mH | 25 mA | 12Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-272J-RC Bourns Inc. | 2.7 mH | 55 mA | 5.8Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-563J-RC Bourns Inc. | 56 mH | 12 mA | 58Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-152J-RC Bourns Inc. | 1.5 mH | 70 mA | 4Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-562J-RC Bourns Inc. | 5.6 mH | 40 mA | 8.4Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-473J-RC Bourns Inc. | 47 mH | 13 mA | 52Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-183J-RC Bourns Inc. | 18 mH | 21 mA | 17Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-823J-RC Bourns Inc. | 82 mH | 10 mA | 71Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-222J-RC Bourns Inc. | 2.2 mH | 60 mA | 5.2Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-683J-RC Bourns Inc. | 68 mH | 11 mA | 67Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-182J-RC Bourns Inc. | 1.8 mH | 65 mA | 4.5Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-103J-RC Bourns Inc. | 10 mH | 25 mA | 12.1Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-102J-RC Bourns Inc. | 1 mH | 90 mA | 3.4Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-472J-RC Bourns Inc. | 4.7 mH | 40 mA | 7.5Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-333J-RC Bourns Inc. | 33 mH | 17 mA | 26Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-393J-RC Bourns Inc. | 39 mH | 15 mA | 45Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-682J-RC Bourns Inc. | 6.8 mH | 35 mA | 9.7Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-104J-RC Bourns Inc. | 100 mH | 9 mA | 82Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-332J-RC Bourns Inc. | 3.3 mH | 50 mA | 6.1Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-124J-RC Bourns Inc. | 120 mH | 8 mA | 97Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-223J-RC Bourns Inc. | 22 mH | 20 mA | 19.5Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder | |
RL181S-153J-RC Bourns Inc. | 15 mH | 22 mA | 15Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder |
