电感数据手册

浏览并下载来自领先制造商的电感的 PDF 数据手册。

系列：SNT

进入系列参数表，对照已有规格。

SNT

产品属性

全部 Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

SNT-D10

KEMET

电感: 2.5 µH
电流: 3 A
DCR: 25mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-D20

KEMET

电感: 10 µH
电流: 1.5 A
DCR: 45mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-S10

KEMET

电感: 1.5 µH
电流: 3 A
DCR: 25mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

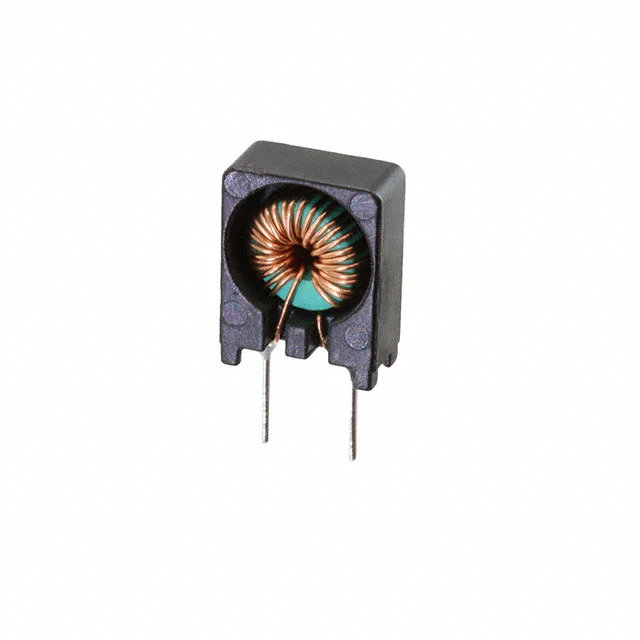

SNT-S30

KEMET

电感: 13 µH
电流: 500 mA
DCR: 95mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-S20

KEMET

电感: 6 µH
电流: 1.5 A
DCR: 35mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-D30

KEMET

电感: 20 µH
电流: 500 mA
DCR: 98mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-S20T

KEMET

电感: 6 µH
电流: 1.5 A
DCR: 35mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-S20TF

KEMET

电感: 6 µH
电流: 1.5 A
DCR: 35mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-S30T

KEMET

电感: 13 µH
电流: 500 mA
DCR: 95mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-D30T

KEMET

电感: 20 µH
电流: 500 mA
DCR: 98mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-D30TF

KEMET

电感: 20 µH
电流: 500 mA
DCR: 98mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-D10TF

KEMET

电感: 2.5 µH
电流: 3 A
DCR: 25mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-D10T

KEMET

电感: 2.5 µH
电流: 3 A
DCR: 25mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-S10TF

KEMET

电感: 1.5 µH
电流: 3 A
DCR: 25mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-S10T

KEMET

电感: 1.5 µH
电流: 3 A
DCR: 25mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-D20TF

KEMET

电感: 10 µH
电流: 1.5 A
DCR: 45mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

SNT-S30TF

KEMET

电感: 13 µH
电流: 500 mA
DCR: 95mOhm
尺寸: 0.374" L x 0.197" W (9.50mm x 5.00mm)

SNT-D20T

KEMET

电感: 10 µH
电流: 1.5 A
DCR: 45mOhm
尺寸: 0.374" L x 0.236" W (9.50mm x 6.00mm)

产品	电感	电流	DCR	尺寸	封装	操作
SNT-D10 KEMET	2.5 µH	3 A	25mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D20 KEMET	10 µH	1.5 A	45mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S10 KEMET	1.5 µH	3 A	25mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S30 KEMET	13 µH	500 mA	95mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S20 KEMET	6 µH	1.5 A	35mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D30 KEMET	20 µH	500 mA	98mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S20T KEMET	6 µH	1.5 A	35mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S20TF KEMET	6 µH	1.5 A	35mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S30T KEMET	13 µH	500 mA	95mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D30T KEMET	20 µH	500 mA	98mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D30TF KEMET	20 µH	500 mA	98mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D10TF KEMET	2.5 µH	3 A	25mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D10T KEMET	2.5 µH	3 A	25mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S10TF KEMET	1.5 µH	3 A	25mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S10T KEMET	1.5 µH	3 A	25mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D20TF KEMET	10 µH	1.5 A	45mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-S30TF KEMET	13 µH	500 mA	95mOhm	0.374" L x 0.197" W (9.50mm x 5.00mm)	Vertical, 2 PC Pin	查看 PDF
SNT-D20T KEMET	10 µH	1.5 A	45mOhm	0.374" L x 0.236" W (9.50mm x 6.00mm)	Vertical, 2 PC Pin	查看 PDF
