系列：SRU1028A

进入系列参数表，对照已有规格。

SRU1028A

产品属性

全部 Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8062)TDK (7746)muRata (7717)Abracon (6926)

SRU1028A-150Y

Bourns Inc.

电感: 15 µH
电流: 2 A
DCR: 90mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-1R5Y

Bourns Inc.

电感: 1.5 µH
电流: 6.5 A
DCR: 10mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-4R7Y

Bourns Inc.

电感: 4.7 µH
电流: 4.5 A
DCR: 23mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-6R8Y

Bourns Inc.

电感: 6.8 µH
电流: 3.5 A
DCR: 33mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-8R2Y

Bourns Inc.

电感: 8.2 µH
电流: 3.3 A
DCR: 37mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-330Y

Bourns Inc.

电感: 33 µH
电流: 1.25 A
DCR: 180mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-470Y

Bourns Inc.

电感: 47 µH
电流: 1.3 A
DCR: 230mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-560Y

Bourns Inc.

电感: 56 µH
电流: 1.1 A
DCR: 270mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-820Y

Bourns Inc.

电感: 82 µH
电流: 900 mA
DCR: 420mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-121Y

Bourns Inc.

电感: 120 µH
电流: 700 mA
DCR: 560mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-151Y

Bourns Inc.

电感: 150 µH
电流: 650 mA
DCR: 680mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-2R2Y

Bourns Inc.

电感: 2.2 µH
电流: 5.3 A
DCR: 15mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-100Y

Bourns Inc.

电感: 10 µH
电流: 2.8 A
DCR: 53mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-680Y

Bourns Inc.

电感: 68 µH
电流: 1 A
DCR: 300mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

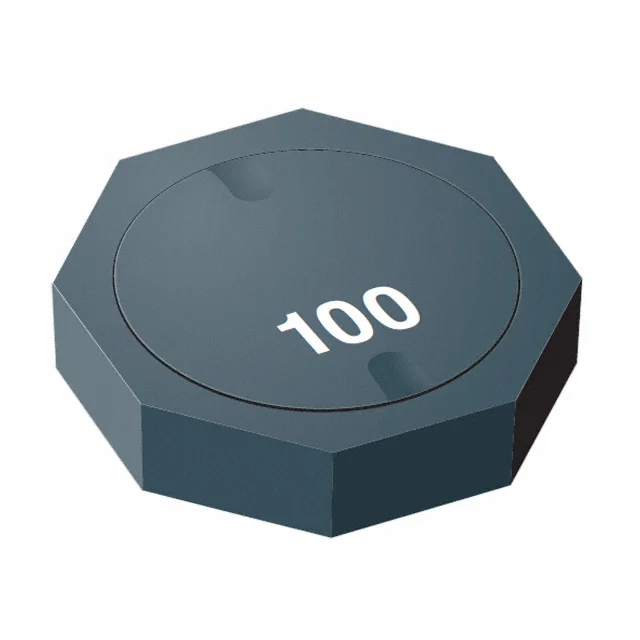

SRU1028A-220Y

Bourns Inc.

电感: 22 µH
电流: 1.6 A
DCR: 135mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-3R3Y

Bourns Inc.

电感: 3.3 µH
电流: 4.6 A
DCR: 20mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-1R0Y

Bourns Inc.

电感: 1 µH
电流: 7 A
DCR: 6.5mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

SRU1028A-101Y

Bourns Inc.

电感: 100 µH
电流: 850 mA
DCR: 470mOhm Max
尺寸: 0.394" L x 0.394" W (10.00mm x 10.00mm)

产品	电感	电流	DCR	尺寸	封装	操作
SRU1028A-150Y Bourns Inc.	15 µH	2 A	90mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-1R5Y Bourns Inc.	1.5 µH	6.5 A	10mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-4R7Y Bourns Inc.	4.7 µH	4.5 A	23mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-6R8Y Bourns Inc.	6.8 µH	3.5 A	33mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-8R2Y Bourns Inc.	8.2 µH	3.3 A	37mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-330Y Bourns Inc.	33 µH	1.25 A	180mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-470Y Bourns Inc.	47 µH	1.3 A	230mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-560Y Bourns Inc.	56 µH	1.1 A	270mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-820Y Bourns Inc.	82 µH	900 mA	420mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-121Y Bourns Inc.	120 µH	700 mA	560mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-151Y Bourns Inc.	150 µH	650 mA	680mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-2R2Y Bourns Inc.	2.2 µH	5.3 A	15mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-100Y Bourns Inc.	10 µH	2.8 A	53mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-680Y Bourns Inc.	68 µH	1 A	300mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-220Y Bourns Inc.	22 µH	1.6 A	135mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-3R3Y Bourns Inc.	3.3 µH	4.6 A	20mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-1R0Y Bourns Inc.	1 µH	7 A	6.5mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
SRU1028A-101Y Bourns Inc.	100 µH	850 mA	470mOhm Max	0.394" L x 0.394" W (10.00mm x 10.00mm)	Nonstandard	查看 PDF
