电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 SRU1038A-470Y Bourns Inc. | 47 µH | 1.65 A | 160mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-6R2Y Bourns Inc. | 6.2 µH | 4 A | 24mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-1R5Y Bourns Inc. | 1.5 µH | 7.2 A | 7.5mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-5R0Y Bourns Inc. | 5 µH | 4.6 A | 22mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-220Y Bourns Inc. | 22 µH | 2.2 A | 75mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-680Y Bourns Inc. | 68 µH | 1.1 A | 216mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-101Y Bourns Inc. | 100 µH | 1 A | 300mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-331Y Bourns Inc. | 330 µH | 550 mA | 1Ohm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |

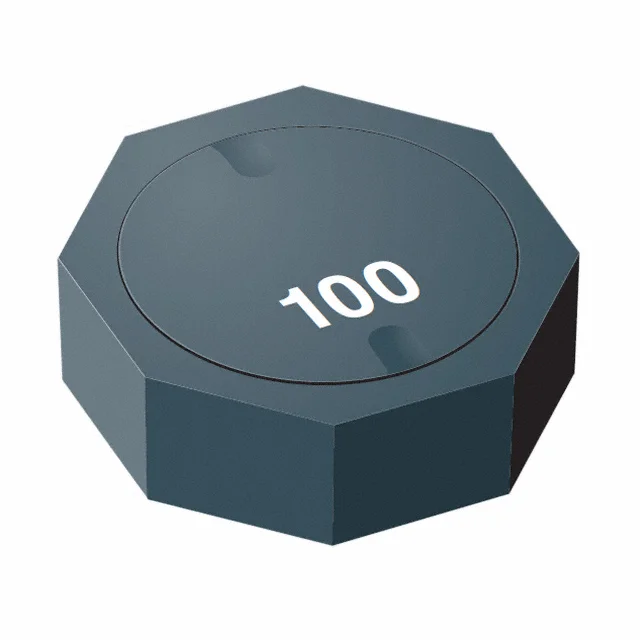

 SRU1038A-150Y Bourns Inc. | 15 µH | 2.8 A | 50mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-330Y Bourns Inc. | 33 µH | 1.8 A | 112mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-2R2Y Bourns Inc. | 2.2 µH | 6.8 A | 10.5mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-100Y Bourns Inc. | 10 µH | 3.8 A | 35mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-3R5Y Bourns Inc. | 3.5 µH | 5.5 A | 15mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-151Y Bourns Inc. | 150 µH | 900 mA | 476mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard | |
 SRU1038A-221Y Bourns Inc. | 220 µH | 650 mA | 740mOhm Max | 0.394" L x 0.394" W (10.00mm x 10.00mm) | Nonstandard |
