电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 TMPA0603HTV-R82MN-D TAI-TECH | 820 nH | 14 A | 6.8mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-3R3MN-D TAI-TECH | 3.3 µH | 7.3 A | 25.8mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-5R6MN-D TAI-TECH | 5.6 µH | 5.5 A | 42mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-1R5MN-D TAI-TECH | 1.5 µH | 11 A | 13.2mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-R47MN-D TAI-TECH | 470 nH | 18 A | 4mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-R56MN-D TAI-TECH | 560 nH | 17 A | 4.8mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |

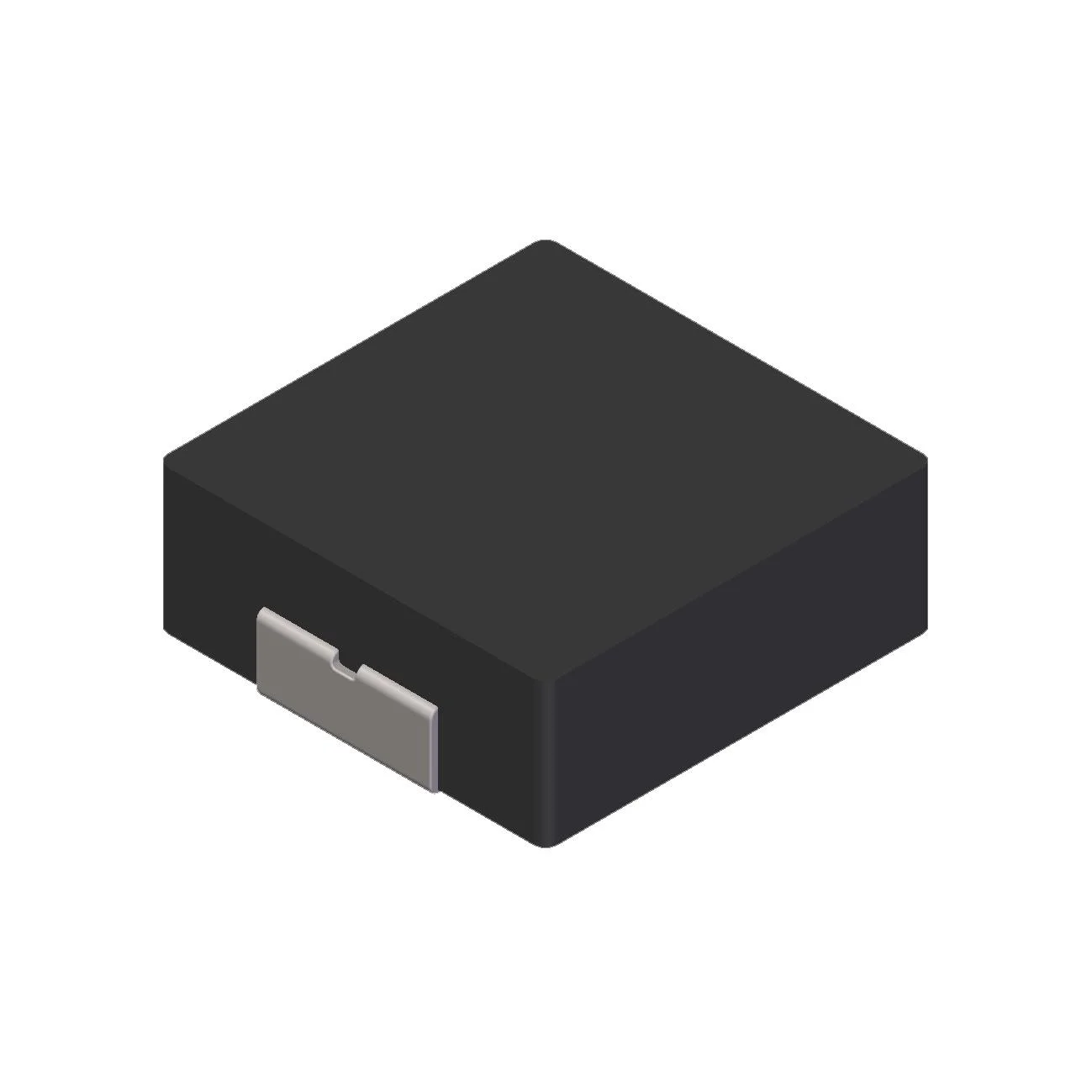

 TMPA0603HTV-R68MN-D TAI-TECH | 680 nH | 15.5 A | 5.6mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-150MN-D TAI-TECH | 15 µH | 3.5 A | 114mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-1R0MN-D TAI-TECH | 1 µH | 13 A | 8mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-4R7MN-D TAI-TECH | 4.7 µH | 6 A | 37mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-6R8MN-D TAI-TECH | 6.8 µH | 5 A | 50mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-100MN-D TAI-TECH | 10 µH | 4.2 A | 68mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-2R2MN-D TAI-TECH | 2.2 µH | 9 A | 15.8mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 TMPA0603HTV-220MN-D TAI-TECH | 22 µH | 2.8 A | 168mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard |
