系列：WE-FI
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|

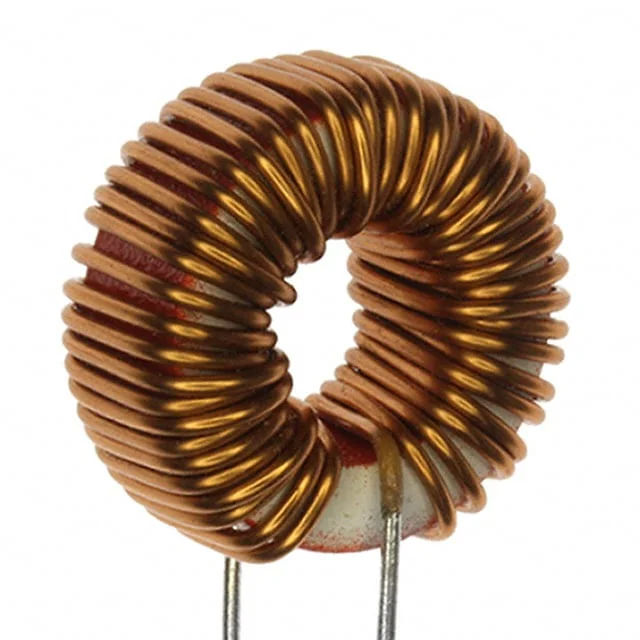

 7447076 Würth Elektronik | 150 µH | 5 A | 45mOhm Max | 1.083" Dia x 0.512" W (27.50mm x 13.00mm) | Radial, Vertical (Open) | |

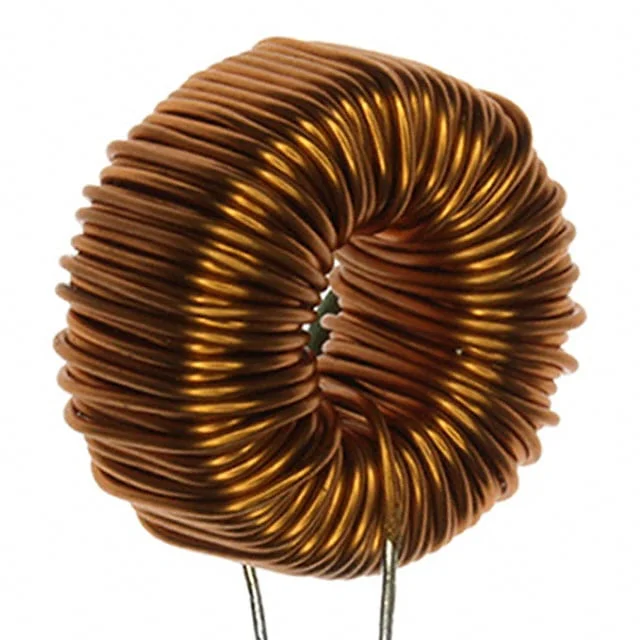

 7447075 Würth Elektronik | 860 µH | 3 A | 150mOhm Max | 1.122" Dia x 0.591" W (28.50mm x 15.00mm) | Radial, Vertical (Open) | |

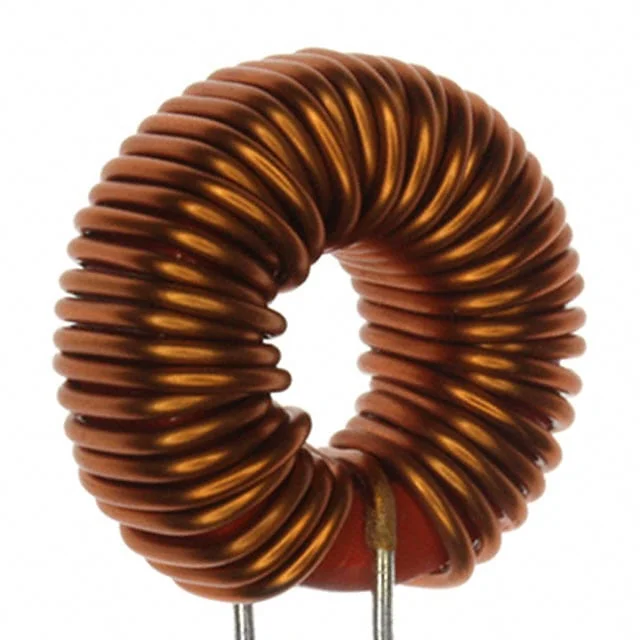

 7447070 Würth Elektronik | 100 µH | 5 A | 35mOhm Max | 0.984" Dia x 0.433" W (25.00mm x 11.00mm) | Radial, Vertical (Open) | |

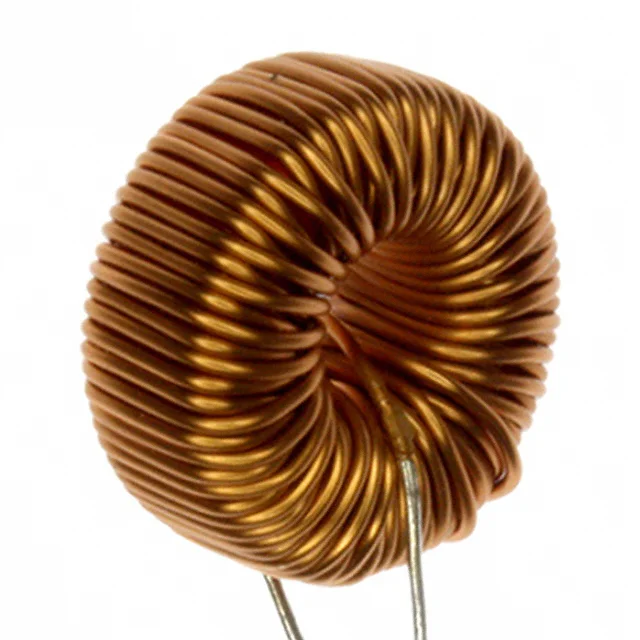

 7447020 Würth Elektronik | 220 µH | 1 A | 160mOhm Max | 0.622" Dia x 0.295" W (15.80mm x 7.50mm) | Radial, Vertical (Open) | |

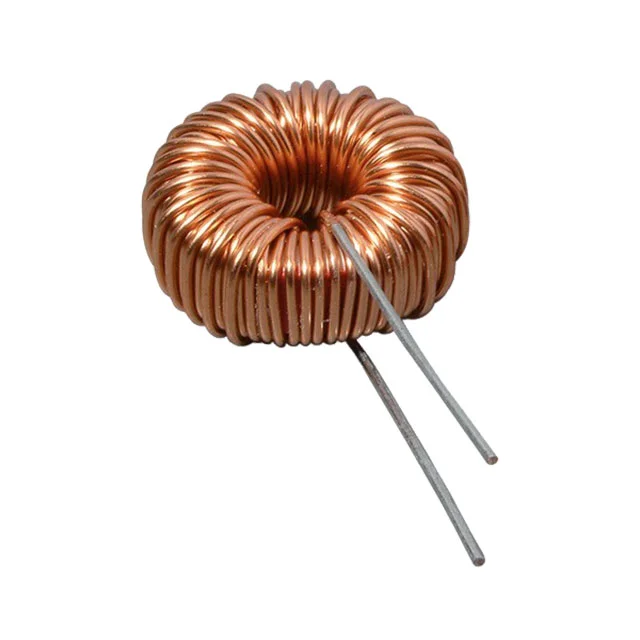

 7447055 Würth Elektronik | 150 µH | 5.4 A | 42mOhm Max | 1.024" Dia x 0.512" W (26.00mm x 13.00mm) | Radial | |

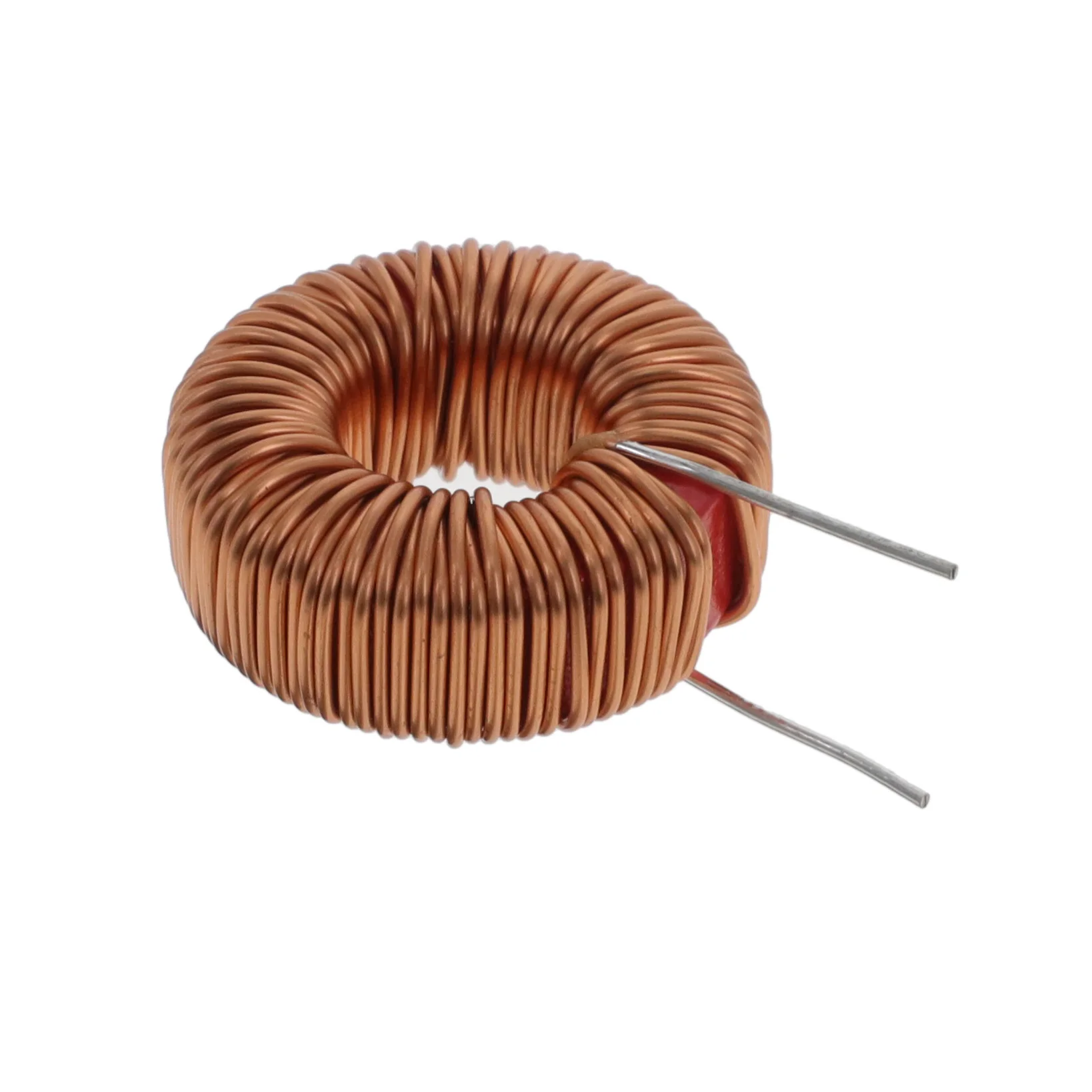

 7447019 Würth Elektronik | 700 µH | 5.1 A | 120mOhm Max | 1.496" Dia x 0.677" W (38.00mm x 17.20mm) | Vertical, No Base, 2 PC Pin | |

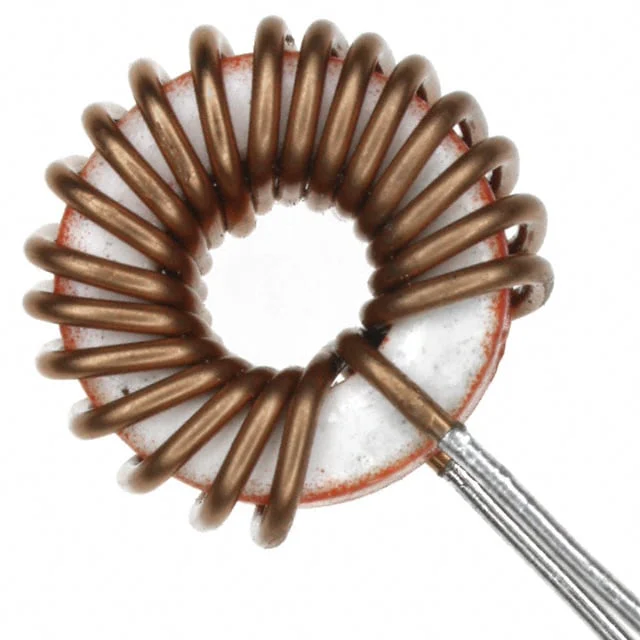

 7447017 Würth Elektronik | 22 µH | 5 A | 15mOhm Max | 0.748" Dia x 0.413" W (19.00mm x 10.50mm) | Radial, Vertical (Open) | |

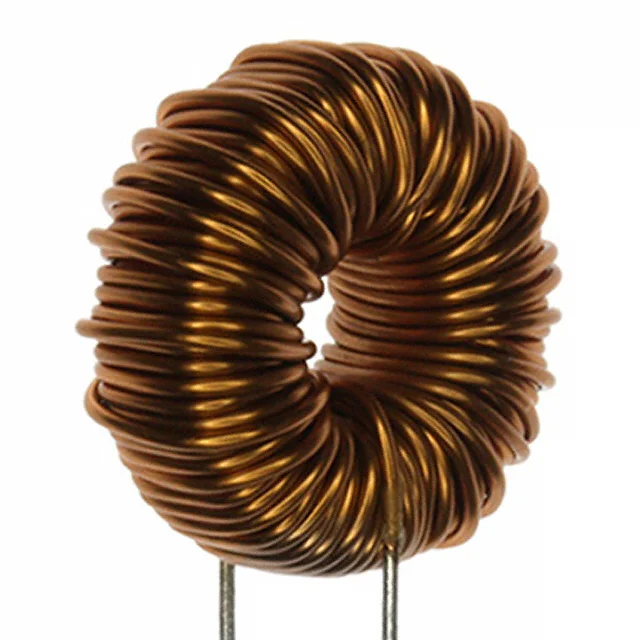

 7447071 Würth Elektronik | 470 µH | 3 A | 110mOhm Max | 0.984" Dia x 0.472" W (25.00mm x 12.00mm) | Radial, Vertical (Open) | |

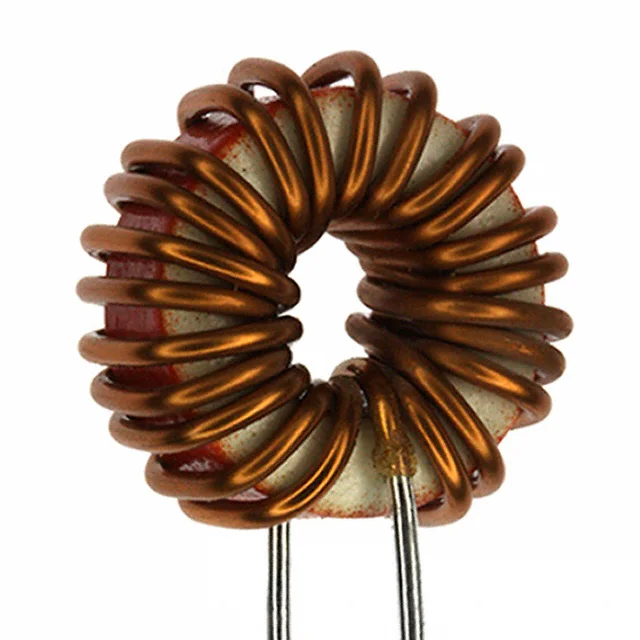

 7447016 Würth Elektronik | 29 µH | 5 A | 15mOhm Max | 0.748" Dia x 0.413" W (19.00mm x 10.50mm) | Radial, Vertical (Open) | |

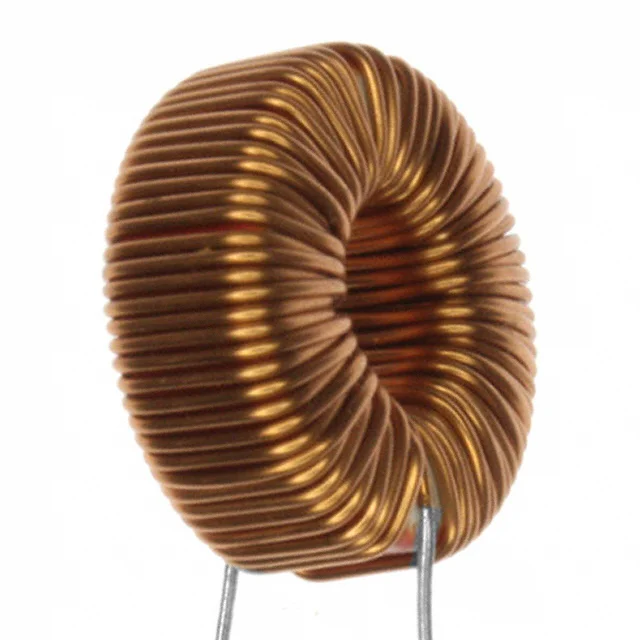

 7447060 Würth Elektronik | 300 µH | 2 A | 150mOhm Max | 0.827" Dia x 0.433" L (21.00mm x 11.00mm) | Radial, Vertical (Open) | |

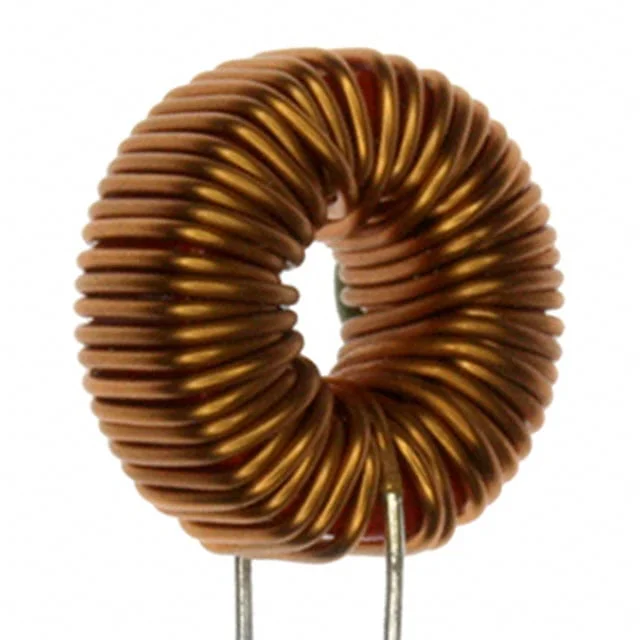

 7447021 Würth Elektronik | 100 µH | 2 A | 80mOhm Max | 0.610" Dia x 0.315" W (15.50mm x 8.00mm) | Radial, Vertical (Open) | |

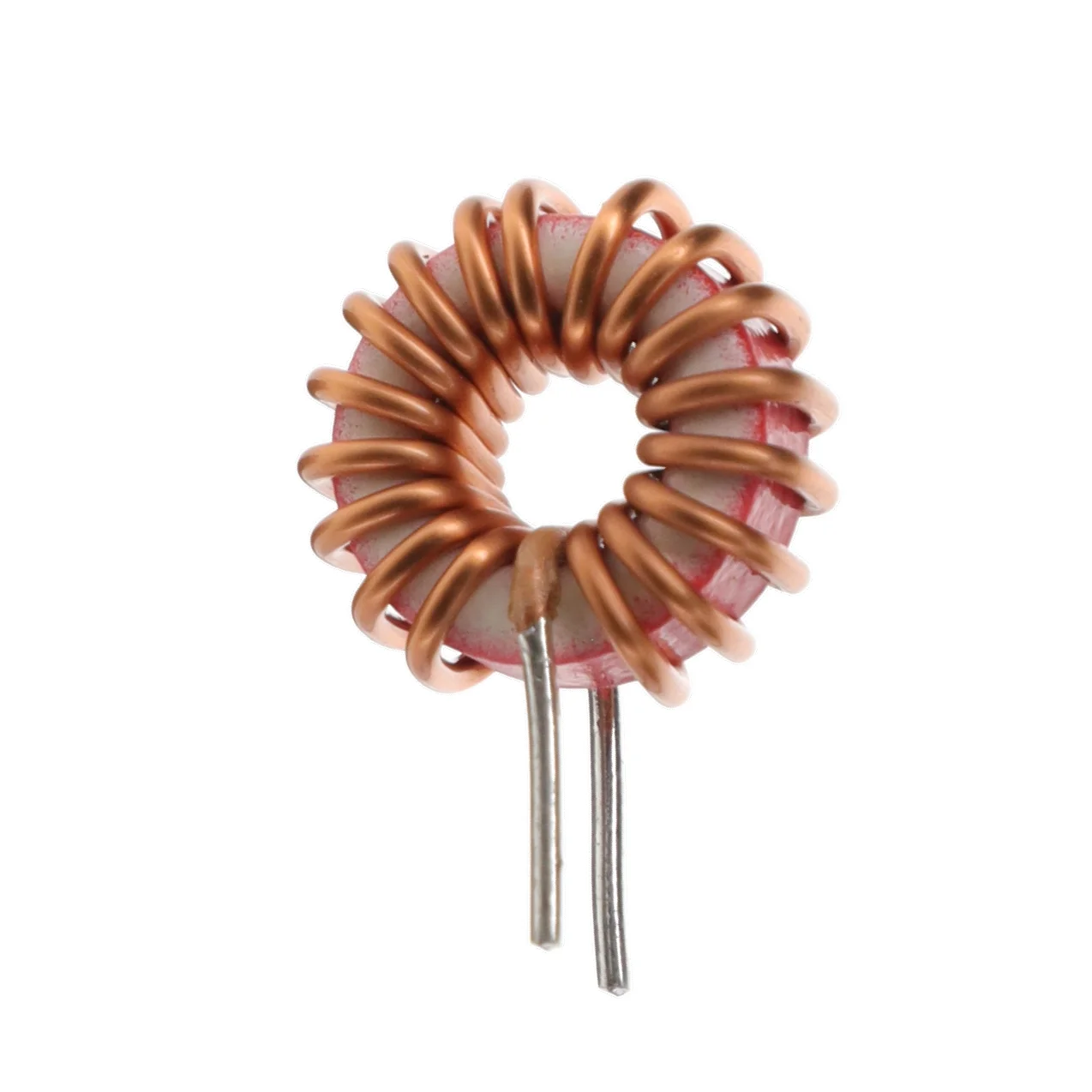

 7447026 Würth Elektronik | 10 µH | 8 A | 10mOhm Max | 0.689" Dia (17.50mm) | Vertical, No Base, 2 PC Pin | |

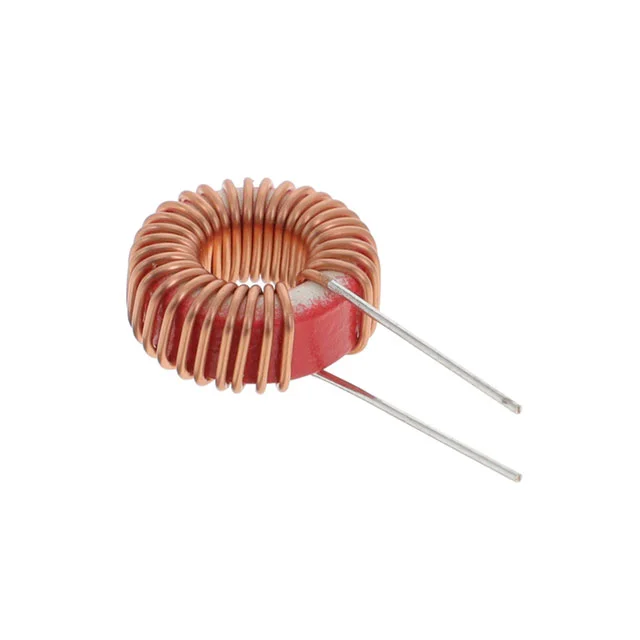

 7447013 Würth Elektronik | 90 µH | 4.6 A | 40mOhm Max | 0.728" Dia x 0.413" W (18.50mm x 10.50mm) | Vertical, No Base, 2 PC Pin | |
 7447025 Würth Elektronik | 20 µH | 5.7 A | 20mOhm Max | 0.630" Dia (16.00mm) | Vertical, No Base, 2 PC Pin | |

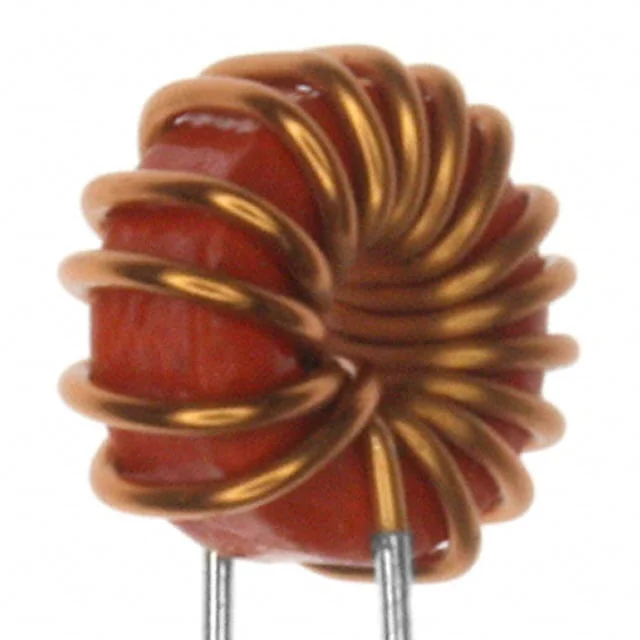

 7447054 Würth Elektronik | 10 µH | 2 A | 20mOhm Max | 0.413" Dia x 0.217" W (10.50mm x 5.50mm) | Radial, Vertical (Open) | |

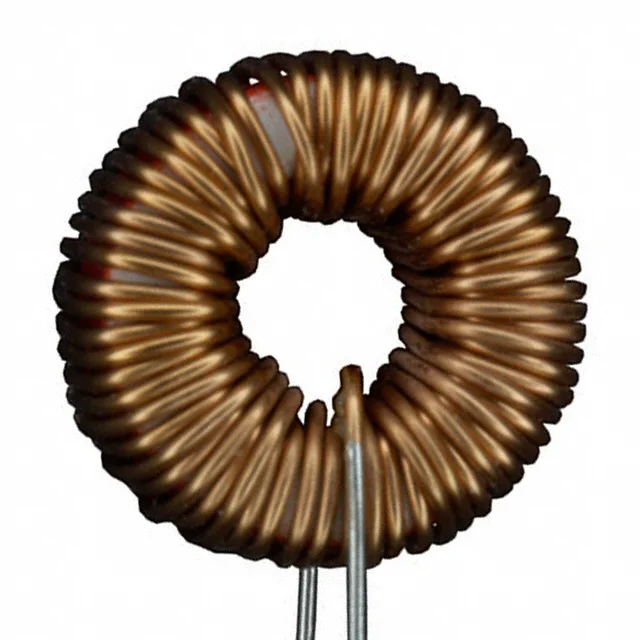

 7447028 Würth Elektronik | 150 µH | 1 A | 130mOhm Max | 0.630" Dia x 0.295" W (16.00mm x 7.50mm) | Radial, Vertical (Open) | |
 7447024 Würth Elektronik | 30 µH | 3.7 A | 40mOhm Max | 0.614" Dia x 0.343" W (15.60mm x 8.70mm) | Vertical, No Base, 2 PC Pin | |
 7447018 Würth Elektronik | 150 µH | 2.5 A | 100mOhm Max | 0.650" Dia (16.50mm) | Vertical, No Base, 2 PC Pin | |

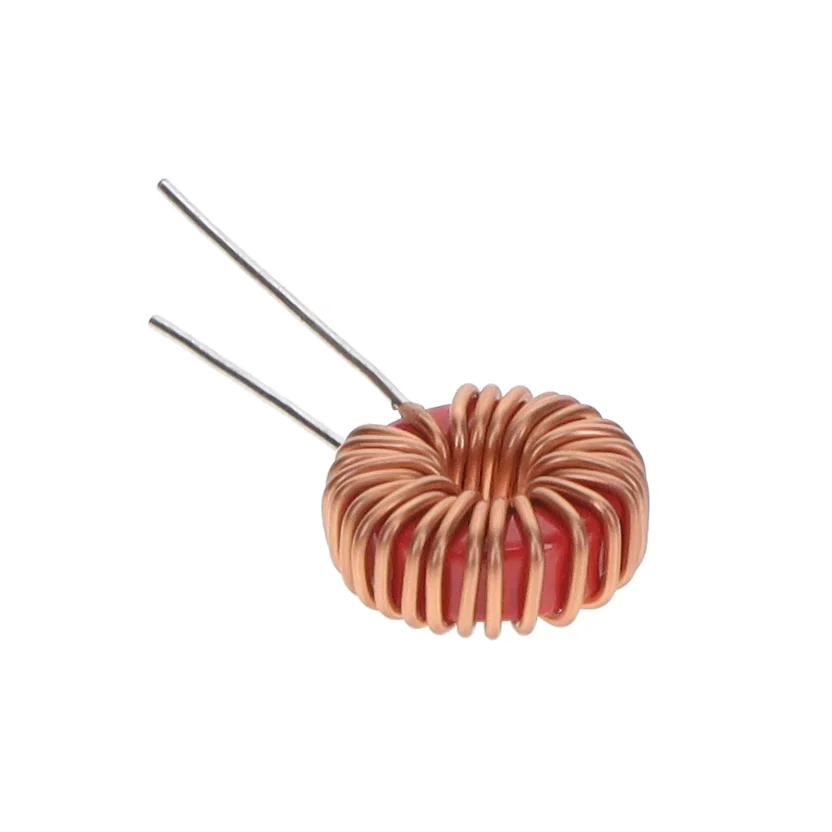

 7447044 Würth Elektronik | 22 µH | 3.5 A | 30mOhm Max | 0.472" Dia (12.00mm) | Vertical, No Base, 2 PC Pin | |

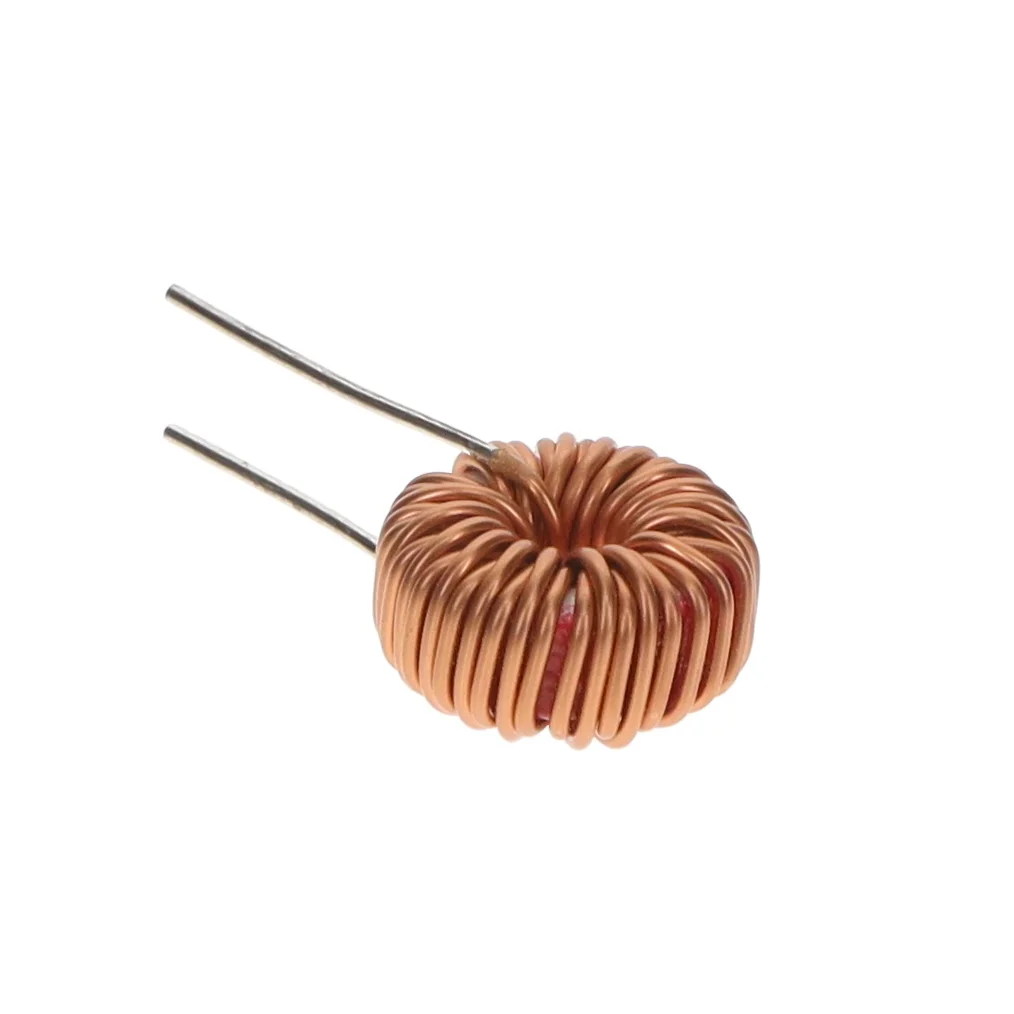

 7447023 Würth Elektronik | 60 µH | 4.1 A | 40mOhm Max | 0.630" Dia (16.00mm) | Vertical, No Base, 2 PC Pin | |
 7447031 Würth Elektronik | 140 µH | 2 A | 110mOhm Max | 0.531" Dia (13.50mm) | Vertical, No Base, 2 PC Pin | |
 7447041 Würth Elektronik | 68 µH | 800 mA | 100mOhm Max | 0.472" Dia x 0.217" W (12.00mm x 5.50mm) | Radial, Vertical (Open) | |
 7447040 Würth Elektronik | 240 µH | 1 A | 380mOhm Max | 0.453" Dia (11.50mm) | Vertical, No Base, 2 PC Pin | |
 7447015 Würth Elektronik | 35 µH | 3 A | 25mOhm Max | 0.728" Dia x 0.335" W (18.50mm x 8.50mm) | Radial, Vertical (Open) | |
 7447034 Würth Elektronik | 43 µH | 1 A | 60mOhm Max | 0.512" Dia x 0.256" W (13.00mm x 6.50mm) | Radial, Vertical (Open) |
