电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 784325078 Würth Elektronik | 7.8 µH | 8 A | 14.4mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 784325065 Würth Elektronik | 6.5 µH | 8.4 A | 11.55mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 784325160 Würth Elektronik | 16.7 µH | 5 A | 38mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 784325033 Würth Elektronik | 3.3 µH | 12 A | 5.75mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 784325055 Würth Elektronik | 5.2 µH | 10 A | 9.45mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 784314065 Würth Elektronik | 6.5 µH | 6.3 A | 23.65mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 784314049 Würth Elektronik | 4.9 µH | 7.6 A | 15.85mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 784314100 Würth Elektronik | 10 µH | 3.7 A | 33.72mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 784314011 Würth Elektronik | 1.1 µH | 14.7 A | 3.47mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 784325100 Würth Elektronik | 10 µH | 7.2 A | 23.1mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 784325042 Würth Elektronik | 4.2 µH | 11 A | 7.8mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 784325012 Würth Elektronik | 1.2 µH | 20 A | 2.04mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard | |
 7843100150 Würth Elektronik | 1.5 µH | 9.6 A | 13.97mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |

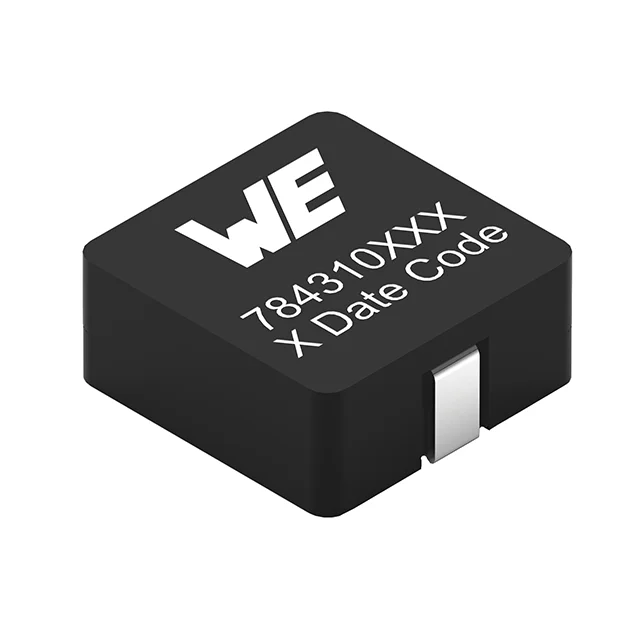

 7843100115 Würth Elektronik | 1.15 µH | 11.8 A | 9.46mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843100055 Würth Elektronik | 520 nH | 19.2 A | 4.07mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843100200 Würth Elektronik | 2 µH | 8.7 A | 15.62mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843110100 Würth Elektronik | 1 µH | 16.8 A | 5.06mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843110022 Würth Elektronik | 220 nH | 36.4 A | 1.21mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843110068 Würth Elektronik | 680 nH | 20.9 A | 3.41mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843110330 Würth Elektronik | 3.3 µH | 8.1 A | 18.92mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |

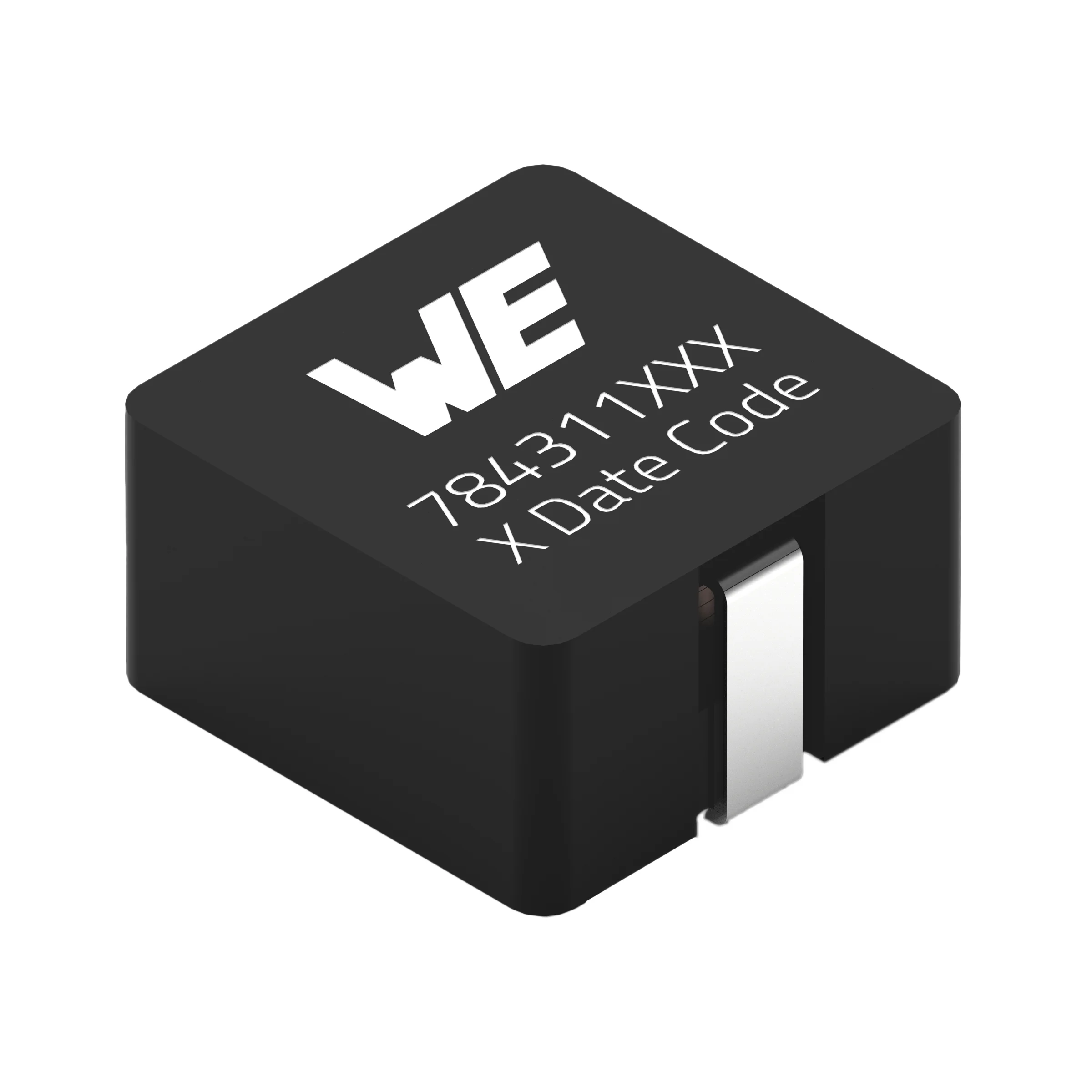

 7843110470 Würth Elektronik | 4.7 µH | 7.8 A | 21.45mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843110220 Würth Elektronik | 2.2 µH | 10.2 A | 12.54mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 784314033 Würth Elektronik | 3.3 µH | 9.2 A | 9.62mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843140047 Würth Elektronik | 470 nH | 16.9 A | 1.65mOhm Max | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Nonstandard | |
 7843250072 Würth Elektronik | 720 nH | 22 A | 1.38mOhm Max | 0.413" L x 0.394" W (10.50mm x 10.00mm) | Nonstandard |
