系列：WE-SD
进入系列参数表，对照已有规格。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|

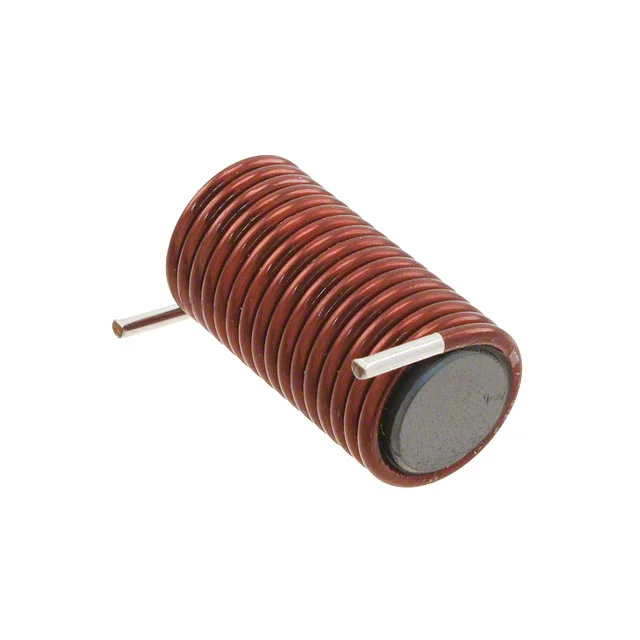

 744711015 Würth Elektronik | 10 µH | 15 A | 5.7mOhm | 0.630" Dia x 1.213" L (16.00mm x 30.80mm) | Radial, Horizontal Cylinder (Open) | |

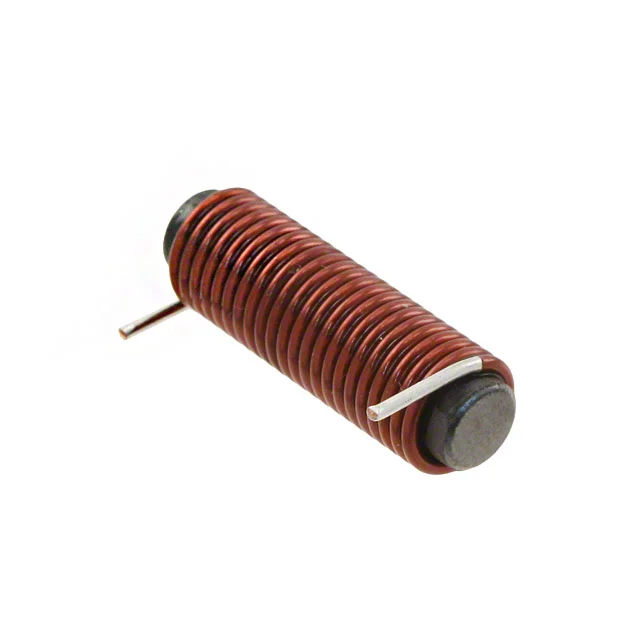

 744711005 Würth Elektronik | 10 µH | 5 A | 15.1mOhm | 0.272" Dia x 0.886" L (6.90mm x 22.50mm) | Radial, Horizontal Cylinder (Open) | |

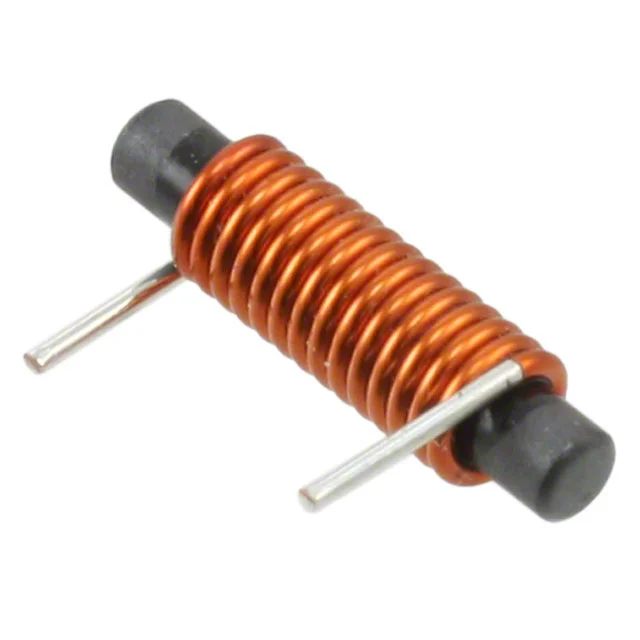

 744710203 Würth Elektronik | 2 µH | 2.5 A | 11mOhm | 0.126" Dia x 0.484" L (3.20mm x 12.30mm) | Radial, Horizontal Cylinder (Open) | |
 744710603 Würth Elektronik | 6 µH | 2.5 A | 22mOhm | 0.165" Dia x 0.606" L (4.20mm x 15.40mm) | Radial, Horizontal Cylinder (Open) | |

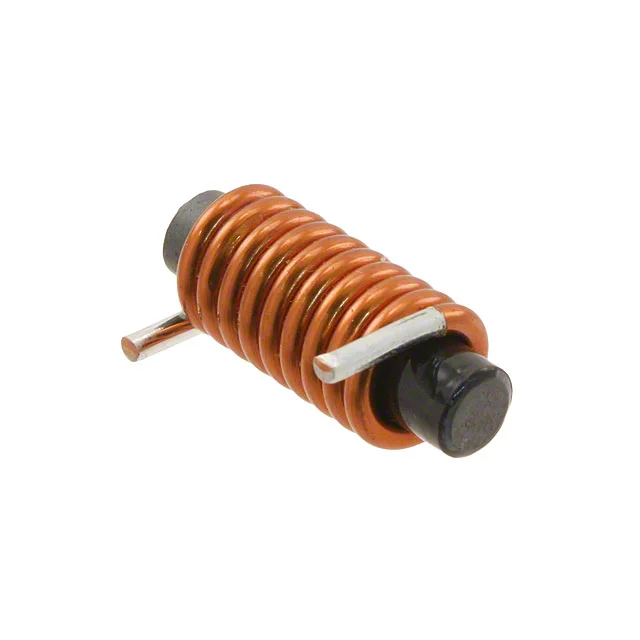

 744710215 Würth Elektronik | 2 µH | 15 A | 1.7mOhm | 0.394" Dia x 1.012" L (10.00mm x 25.70mm) | Radial, Horizontal Cylinder (Open) | |

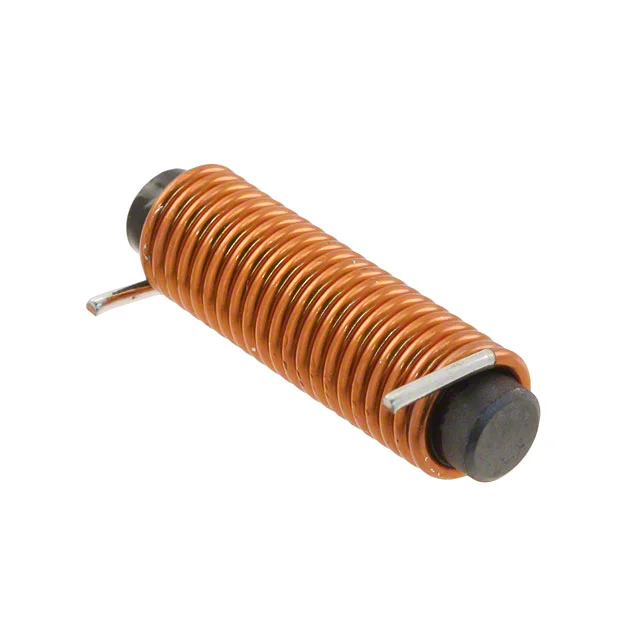

 744711010 Würth Elektronik | 10 µH | 10 A | 8.8mOhm | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) | Radial, Horizontal Cylinder (Open) | |

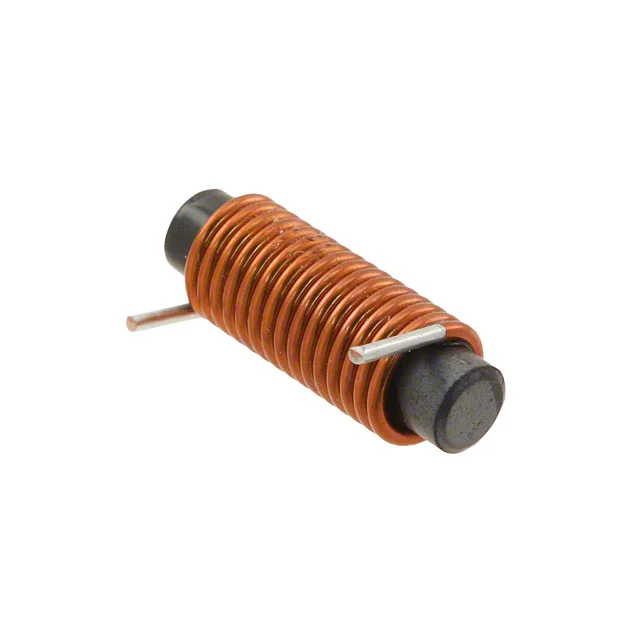

 744710610 Würth Elektronik | 6 µH | 10 A | 6.5mOhm | 0.339" Dia x 1.012" L (8.60mm x 25.70mm) | Radial, Horizontal Cylinder (Open) | |

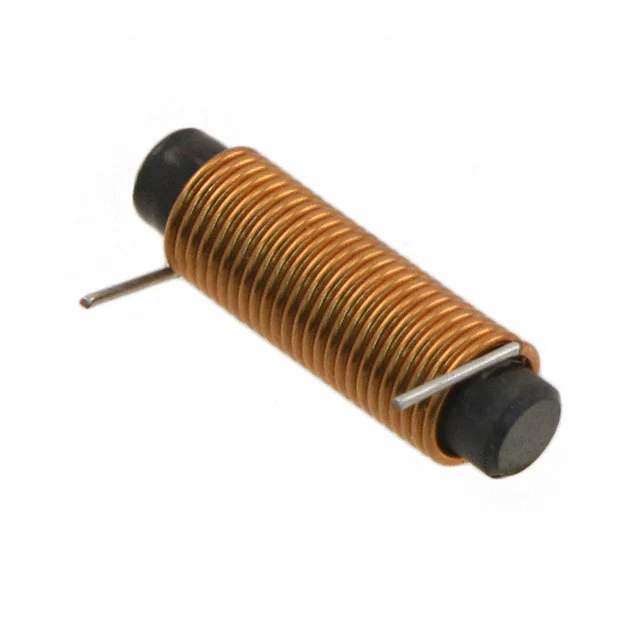

 744711003 Würth Elektronik | 10 µH | 2.5 A | 33mOhm | 0.205" Dia x 0.728" L (5.20mm x 18.50mm) | Radial, Horizontal Cylinder (Open) | |
 744710205 Würth Elektronik | 2 µH | 5 A | 6.5mOhm | 0.232" Dia x 0.551" L (5.90mm x 14.00mm) | Radial, Horizontal Cylinder (Open) | |

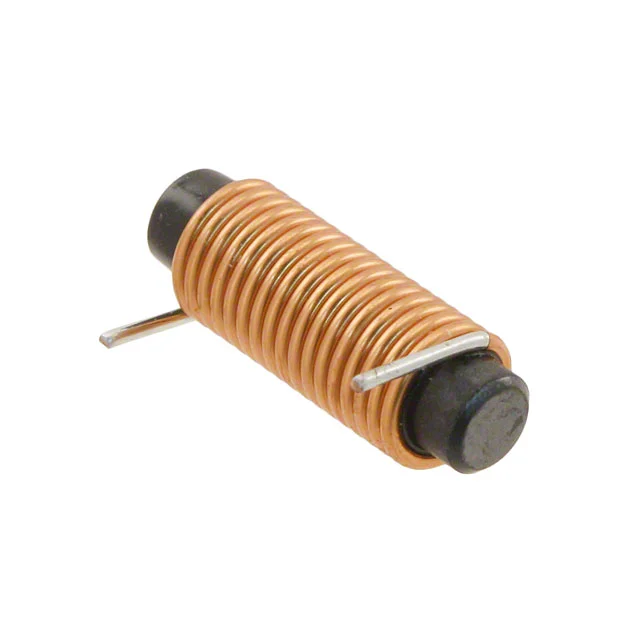

 744710605 Würth Elektronik | 6 µH | 5 A | 11.7mOhm | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) | Radial, Horizontal Cylinder (Open) | |
 744710615 Würth Elektronik | 6 µH | 15 A | 3.5mOhm | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | Radial, Horizontal Cylinder (Open) | |
 744710210 Würth Elektronik | 2 µH | 10 A | 3.8mOhm | 0.299" Dia x 0.606" L (7.60mm x 15.40mm) | Radial, Horizontal Cylinder (Open) | |
7447160 Würth Elektronik | 10 µH | 10 A | 9mOhm Max | 0.374" Dia (9.50mm) | Radial, Horizontal Cylinder |
