电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 744772100 Würth Elektronik | 10 µH | 4.2 A | 40mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder (Open) | |
 744772330 Würth Elektronik | 33 µH | 2 A | 60mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder (Open) | |
 744772470 Würth Elektronik | 47 µH | 2.3 A | 120mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder (Open) | |
 744741221 Würth Elektronik | 220 µH | 660 mA | 1.5Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 7447452221 Würth Elektronik | 220 µH | 1.2 A | 290mOhm Max | 0.374" Dia (9.50mm) | Radial, Vertical Cylinder | |
 7447452101 Würth Elektronik | 100 µH | 1.8 A | 160mOhm Max | 0.374" Dia (9.50mm) | Radial, Vertical Cylinder | |
 7447231102 Würth Elektronik | 1 mH | 800 mA | 860mOhm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder, 4 Leads | |
 7447480101 Würth Elektronik | 100 µH | 2.4 A | 125mOhm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder (Open) | |

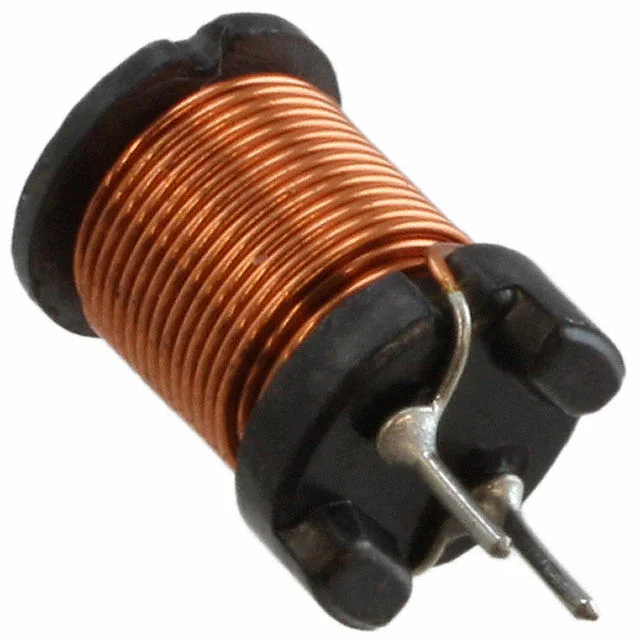

 7447480151 Würth Elektronik | 150 µH | 2 A | 180mOhm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder (Open) | |
 7447480102 Würth Elektronik | 1 mH | 800 mA | 1.15Ohm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder (Open) | |
 7447480331 Würth Elektronik | 330 µH | 1.4 A | 330mOhm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder (Open) | |

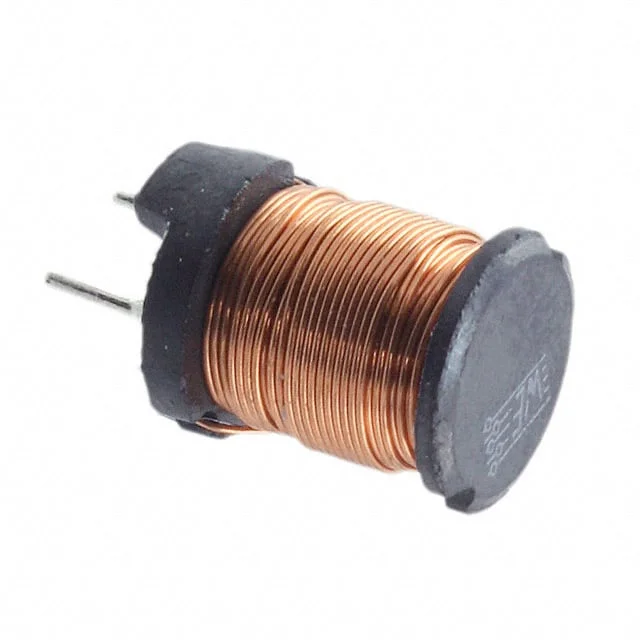

 7447480681 Würth Elektronik | 680 µH | 900 mA | 790mOhm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder (Open) | |
 7447480221 Würth Elektronik | 220 µH | 1.6 A | 260mOhm Max | 0.413" Dia (10.50mm) | Radial, Vertical Cylinder (Open) | |

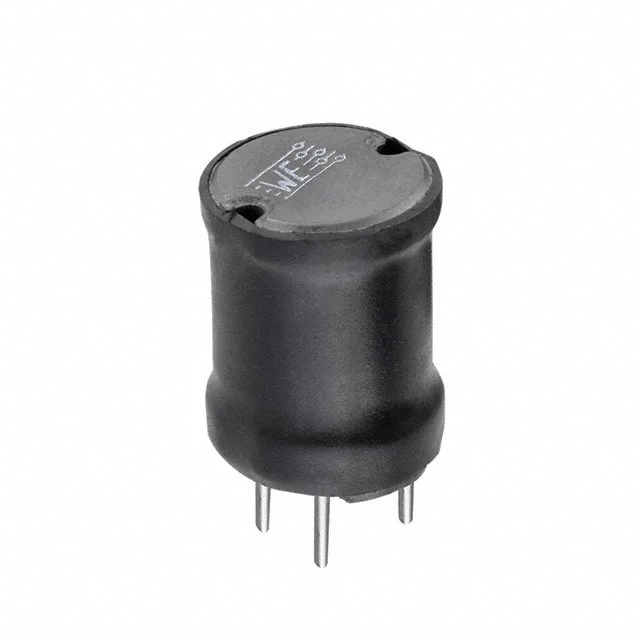

 7447231222 Würth Elektronik | 2.2 mH | 540 mA | 1.9Ohm Max | 0.433" Dia (11.00mm) | Radial, Vertical Cylinder, 4 Leads | |
 7447452391 Würth Elektronik | 390 µH | 1 A | 520mOhm Max | 0.374" Dia (9.50mm) | Radial, Vertical Cylinder | |
 744743221 Würth Elektronik | 220 µH | 960 mA | 550mOhm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder (Open) | |
 744732102 Würth Elektronik | 1 mH | 330 mA | 3.4Ohm Max | 0.374" Dia (9.50mm) | Radial, Vertical Cylinder (Open) | |
 744732471 Würth Elektronik | 470 µH | 450 mA | 1.7Ohm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder | |
 7447790221 Würth Elektronik | 220 µH | 600 mA | 800mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder (Open) | |

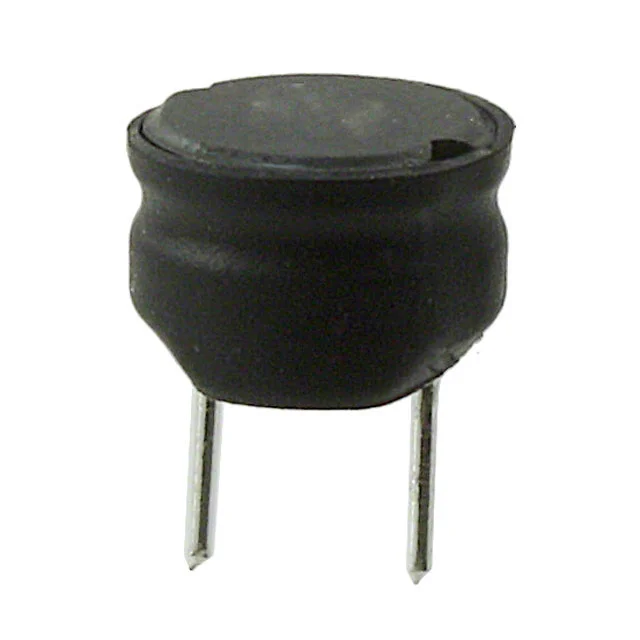

 744741472 Würth Elektronik | 4.7 mH | 150 mA | 25Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 744741101 Würth Elektronik | 100 µH | 1.1 A | 1Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 744779100 Würth Elektronik | 10 µH | 1.85 A | 50mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder (Open) | |
 7447790470 Würth Elektronik | 47 µH | 1.45 A | 160mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder (Open) | |
 744741471 Würth Elektronik | 470 µH | 440 mA | 3Ohm Max | 0.335" Dia (8.50mm) | Radial, Vertical Cylinder | |
 744779068 Würth Elektronik | 6.8 µH | 2.2 A | 35mOhm Max | 0.307" Dia (7.80mm) | Radial, Vertical Cylinder (Open) |
