电感数据手册
浏览并下载来自领先制造商的电感的 PDF 数据手册。
产品属性
| 产品 | 电感 | 当前 | DCR | 尺寸 | 封装 | 操作 |
|---|---|---|---|---|---|---|
 WNL322522RF-220M TAI-TECH | 22 µH | 140 mA | 400mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
 WNL322522RF-2R2M TAI-TECH | 2.2 µH | 500 mA | 90mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
 WNL322522RF-680M TAI-TECH | 68 µH | 70 mA | 1.3Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
 WNL322522RF-4R7M TAI-TECH | 4.7 µH | 360 mA | 130mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
 WNL322522RF-3R3M TAI-TECH | 3.3 µH | 420 mA | 110mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
 WNL322522RF-101M TAI-TECH | 100 µH | 55 mA | 2.2Ohm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |

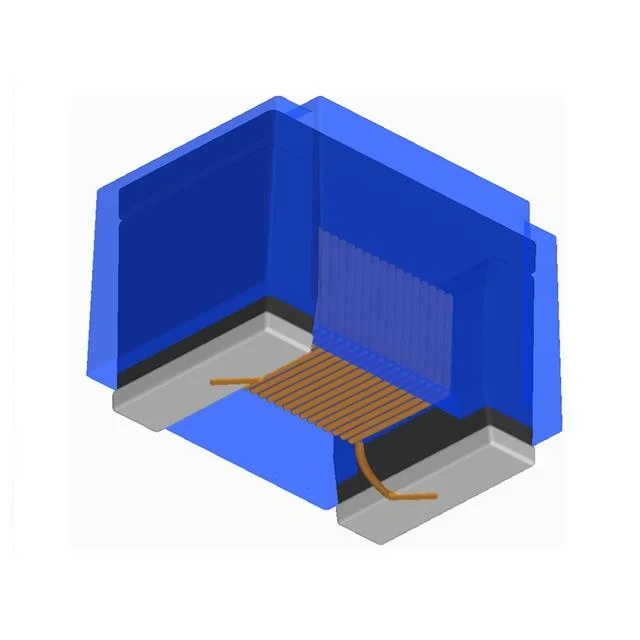

 WNL322522RF-100M TAI-TECH | 10 µH | 250 mA | 200mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) | |
 WNL322522RF-1R0M TAI-TECH | 1 µH | 750 mA | 60mOhm Max | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 1210 (3225 Metric) |
