Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 AISC-1812H-1R0N-T Abracon | 1 µH | 1.08 A | 80mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-1R5N-T Abracon | 1.5 µH | 1 A | 90mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-2R2N-T Abracon | 2.2 µH | 900 mA | 110mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-2R7N-T Abracon | 2.7 µH | 870 mA | 120mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-3R3N-T Abracon | 3.3 µH | 800 mA | 130mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-3R9N-T Abracon | 3.9 µH | 780 mA | 150mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-4R7N-T Abracon | 4.7 µH | 750 mA | 200mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-5R6N-T Abracon | 5.6 µH | 730 mA | 230mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-6R8N-T Abracon | 6.8 µH | 720 mA | 250mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-8R2N-T Abracon | 8.2 µH | 680 mA | 270mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-100K-T Abracon | 10 µH | 650 mA | 350mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-150K-T Abracon | 15 µH | 570 mA | 540mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-220K-T Abracon | 22 µH | 420 mA | 640mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-270K-T Abracon | 27 µH | 370 mA | 750mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-330K-T Abracon | 33 µH | 310 mA | 860mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-390K-T Abracon | 39 µH | 300 mA | 1.18Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-470K-T Abracon | 47 µH | 280 mA | 1.37Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-560K-T Abracon | 56 µH | 250 mA | 1.56Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-680K-T Abracon | 68 µH | 220 mA | 1.92Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-101K-T Abracon | 100 µH | 190 mA | 2.96Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-151K-T Abracon | 150 µH | 130 mA | 3.72Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-221K-T Abracon | 220 µH | 110 mA | 5.9Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-271K-T Abracon | 270 µH | 105 mA | 6.55Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |

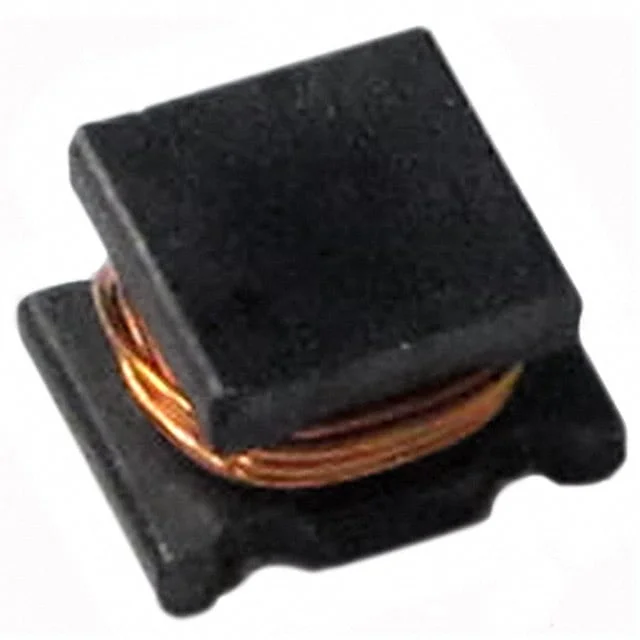

 AISC-1812H-331K-T Abracon | 330 µH | 100 mA | 7.75Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
 AISC-1812H-391K-T Abracon | 390 µH | 95 mA | 8.06Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) |
