Laden Sie PDF-Datenblätter für Induktivitäten von führenden Herstellern herunter.
| Produkt | Induktivität | Strom | DCR | Größe | Gehäuse | Aktionen |
|---|---|---|---|---|---|---|
 CPI0805E3R3R-10 Laird | 3.3 µH | 500 mA | 220mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0805F2R2R-10 Laird | 2.2 µH | 600 mA | 250mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0805G1R5R-10 Laird | 1.5 µH | 700 mA | 220mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0805G1R8R-10 Laird | 1.8 µH | 700 mA | 220mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0805H1R0R-10 Laird | 1 µH | 800 mA | 160mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |

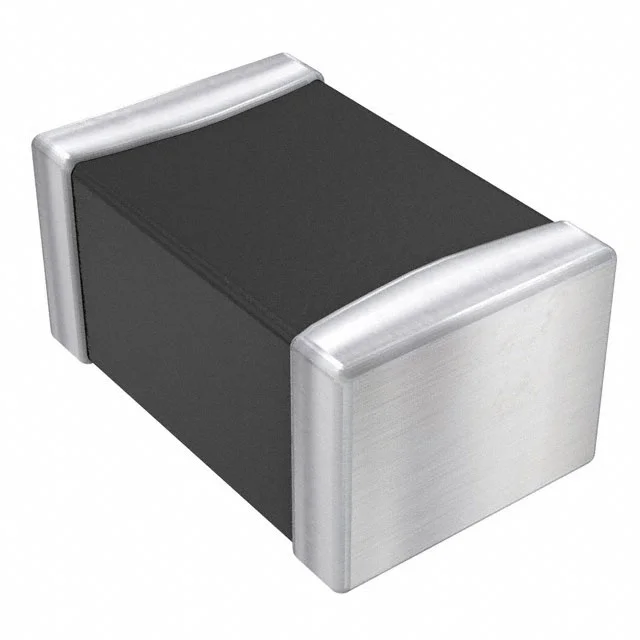

 CPI0805H1R2R-10 Laird | 1.2 µH | 800 mA | 160mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0805IR82R-10 Laird | 820 nH | 900 mA | 140mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0805JR47R-10 Laird | 470 nH | 1.1 A | 100mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0805JR68R-10 Laird | 680 nH | 1 A | 120mOhm | 0.079 L x 0.049 W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 CPI0806J1R0R-10 Laird | 1 µH | 1.4 A | 160mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |

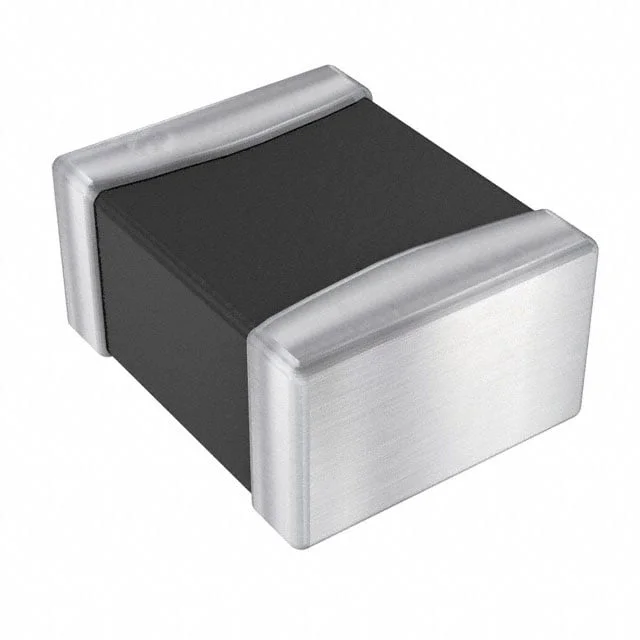

 CPI0806J1R2R-10 Laird | 1.2 µH | 1.4 A | 160mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI0806J1R5R-10 Laird | 1.5 µH | 1.2 A | 200mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI0806J1R8R-10 Laird | 1.8 µH | 1.2 A | 200mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI0806J2R2R-10 Laird | 2.2 µH | 1.2 A | 220mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI0806J3R3R-10 Laird | 3.3 µH | 1.1 A | 240mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI0806KR47R-10 Laird | 470 nH | 1.5 A | 140mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI0806KR68R-10 Laird | 680 nH | 1.5 A | 150mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI0806KR82R-10 Laird | 820 nH | 1.5 A | 160mOhm | 0.079 L x 0.063 W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 CPI1008K1R0R-10 Laird | 1 µH | 1.6 A | 110mOhm | 0.098 L x 0.079 W (2.50mm x 2.00mm) | 1008 (2520 Metric) | |
 CPI1008K1R2R-10 Laird | 1.2 µH | 1.6 A | 110mOhm | 0.098 L x 0.079 W (2.50mm x 2.00mm) | 1008 (2520 Metric) | |
 CPI1008K1R8R-10 Laird | 1.8 µH | 1.5 A | 130mOhm | 0.098 L x 0.079 W (2.50mm x 2.00mm) | 1008 (2520 Metric) | |
 CPI1008KR68R-10 Laird | 680 nH | 1.7 A | 90mOhm | 0.098 L x 0.079 W (2.50mm x 2.00mm) | 1008 (2520 Metric) | |
 CPI1008KR82R-10 Laird | 820 nH | 1.7 A | 100mOhm | 0.098 L x 0.079 W (2.50mm x 2.00mm) | 1008 (2520 Metric) | |

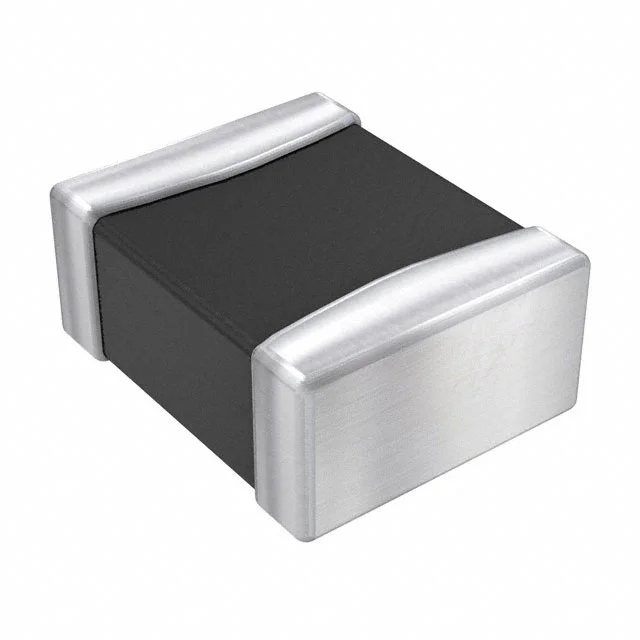

 CPI1008J2R2R-10 Laird | 2.2 µH | 1.3 A | 170mOhm | 0.098 L x 0.079 W (2.50mm x 2.00mm) | 1008 (2520 Metric) | |
 CPI1008J3R3R-10 Laird | 3.3 µH | 1.2 A | 160mOhm | 0.098 L x 0.079 W (2.50mm x 2.00mm) | 1008 (2520 Metric) |
