シリーズ：AISC-1008
シリーズ表で登録済みの仕様を比較できます。
製品属性
| 製品 | インダクタンス | 定格電流 | 直流抵抗 | サイズ | パッケージ | アクション |
|---|---|---|---|---|---|---|
 AISC-1008-R62G-T Abracon | 620 nH | 300 mA | 1.4Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R012J-T Abracon | 12 nH | 1 A | 90mOhm Max | 1008 (2520 Metric) | Surface Mount | |
 AISC-1008-R039J-T Abracon | 39 nH | 1 A | 150mOhm Max | 1008 (2520 Metric) | Surface Mount | |

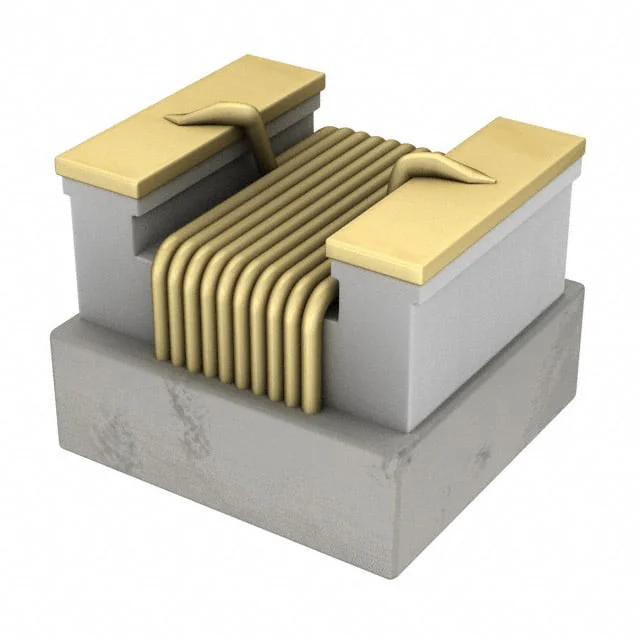

 AISC-1008-5R6G-T Abracon | 5.6 µH | 240 mA | 5.7Ohm Max | 1008 (2520 Metric) | Surface Mount | |
 AISC-1008-1R5J-T Abracon | 1.5 µH | 330 mA | 2.3Ohm Max | 1008 (2520 Metric) | Surface Mount | |
 AISC-1008-1R2G-T Abracon | 1.2 µH | 310 mA | 2Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R82G-T Abracon | 820 nH | 400 mA | 1.61Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R22G-T Abracon | 220 nH | 500 mA | 800mOhm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-2R7J-T Abracon | 2.7 µH | 290 mA | 3.2Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R47G-T Abracon | 470 nH | 470 mA | 1.19Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-8R2J-T Abracon | 8.2 µH | 150 mA | 10.7Ohm Max | 1008 (2520 Metric) | Surface Mount | |
 AISC-1008-R027G-T Abracon | 27 nH | 1 A | 130mOhm Max | 1008 (2520 Metric) | Surface Mount | |
 AISC-1008-1R5G-T Abracon | 1.5 µH | 330 mA | 2.3Ohm Max | 1008 (2520 Metric) | Surface Mount | |
 AISC-1008-8R2G-T Abracon | 8.2 µH | 150 mA | 10.7Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-1R0G-T Abracon | 1 µH | 370 mA | 1.8Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-1R0J-T Abracon | 1 µH | 370 mA | 1.8Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R082G-T Abracon | 82 nH | 1 A | 220mOhm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-1R8J-T Abracon | 1.8 µH | 300 mA | 2.6Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R015J-T Abracon | 15 nH | 1 A | 130mOhm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R39J-T Abracon | 390 nH | 470 mA | 1.12Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R47J-T Abracon | 470 nH | 470 mA | 1.19Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R62J-T Abracon | 620 nH | 300 mA | 1.4Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R15J-T Abracon | 150 nH | 580 mA | 620mOhm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R15G-T Abracon | 150 nH | 580 mA | 620mOhm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) | |
 AISC-1008-R56G-T Abracon | 560 nH | 400 mA | 1.33Ohm Max | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 1008 (2520 Metric) |
