インダクタデータシート
主要メーカーのインダクタのPDFデータシートを閲覧およびダウンロード。
製品属性
| 製品 | インダクタンス | 定格電流 | 直流抵抗 | サイズ | パッケージ | アクション |
|---|---|---|---|---|---|---|
 CWF1610A-R68M Bourns Inc. | 680 nH | 750 mA | 220mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-2R2M Bourns Inc. | 2.2 µH | 580 mA | 560mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-180M Bourns Inc. | 18 µH | 220 mA | 2.9Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-4R7M Bourns Inc. | 4.7 µH | 420 mA | 970mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R47M Bourns Inc. | 470 nH | 900 mA | 180mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-1R0M Bourns Inc. | 1 µH | 700 mA | 320mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R10M Bourns Inc. | 100 nH | 1.4 A | 63mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-5R6M Bourns Inc. | 5.6 µH | 380 mA | 1.1Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-3R3M Bourns Inc. | 3.3 µH | 500 mA | 700mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-220M Bourns Inc. | 22 µH | 200 mA | 3.61Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-100M Bourns Inc. | 10 µH | 280 mA | 1.85Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R56M Bourns Inc. | 560 nH | 800 mA | 200mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-150M Bourns Inc. | 15 µH | 240 mA | 2.6Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R33M Bourns Inc. | 330 nH | 1 A | 130mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-6R8M Bourns Inc. | 6.8 µH | 340 mA | 1.5Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R15M Bourns Inc. | 150 nH | 1.3 A | 74mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-8R2M Bourns Inc. | 8.2 µH | 300 mA | 1.68Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-1R5M Bourns Inc. | 1.5 µH | 600 mA | 400mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R27M Bourns Inc. | 270 nH | 1.1 A | 120mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R68K Bourns Inc. | 680 nH | 750 mA | 220mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-1R5K Bourns Inc. | 1.5 µH | 600 mA | 400mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-6R8K Bourns Inc. | 6.8 µH | 340 mA | 1.5Ohm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-R27K Bourns Inc. | 270 nH | 1.1 A | 120mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |

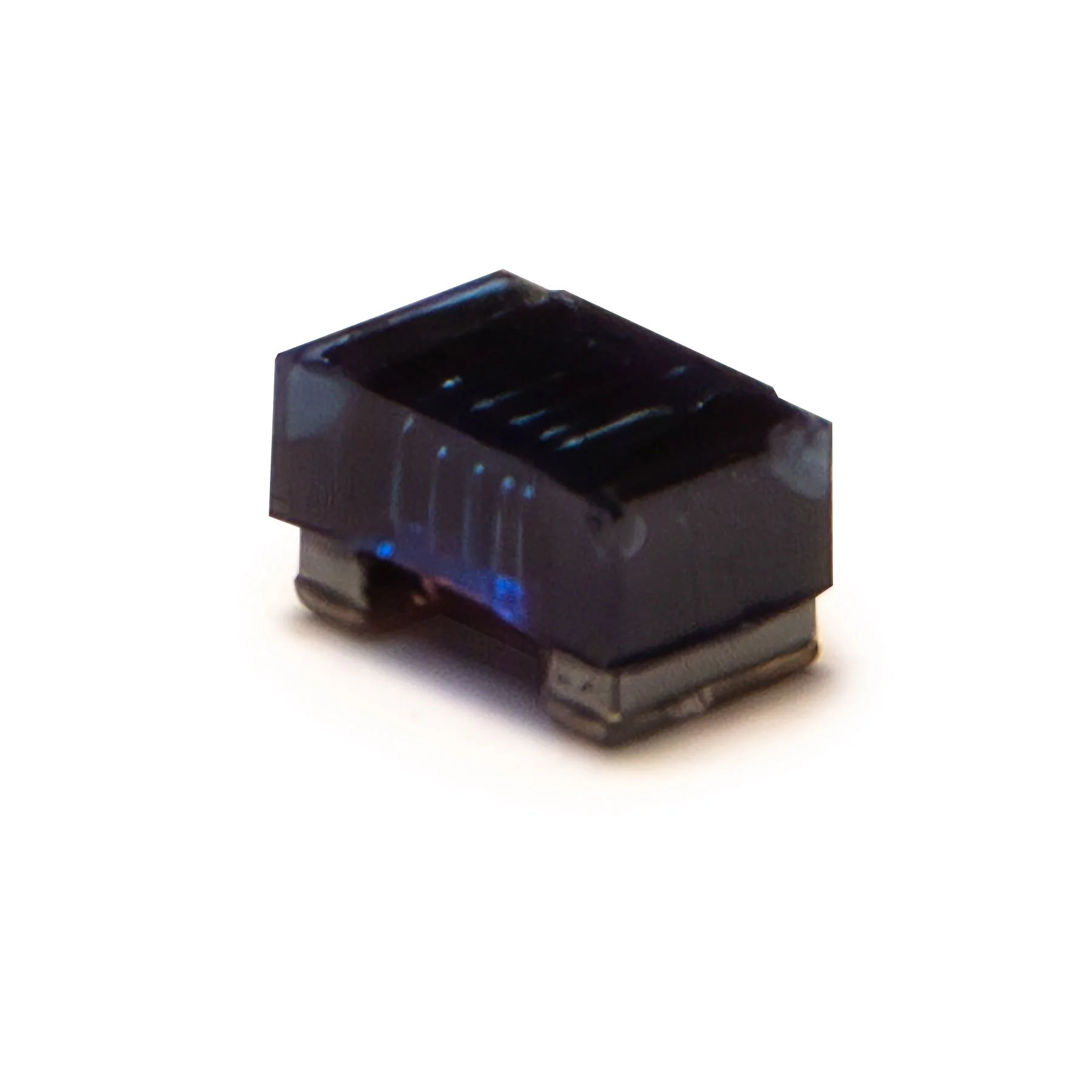

 CWF1610A-R15K Bourns Inc. | 150 nH | 1.3 A | 74mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) | |
 CWF1610A-3R3K Bourns Inc. | 3.3 µH | 500 mA | 700mOhm | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0603 (1608 Metric) |
