主要メーカーのインダクタのPDFデータシートを閲覧およびダウンロード。
| 製品 | インダクタンス | 定格電流 | 直流抵抗 | サイズ | パッケージ | アクション |
|---|---|---|---|---|---|---|
 SRP6530A-R22M Bourns Inc. | 220 nH | 25.5 A | 2.8mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-1R0M Bourns Inc. | 1 µH | 12 A | 10mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-100M Bourns Inc. | 10 µH | 4 A | 105mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |

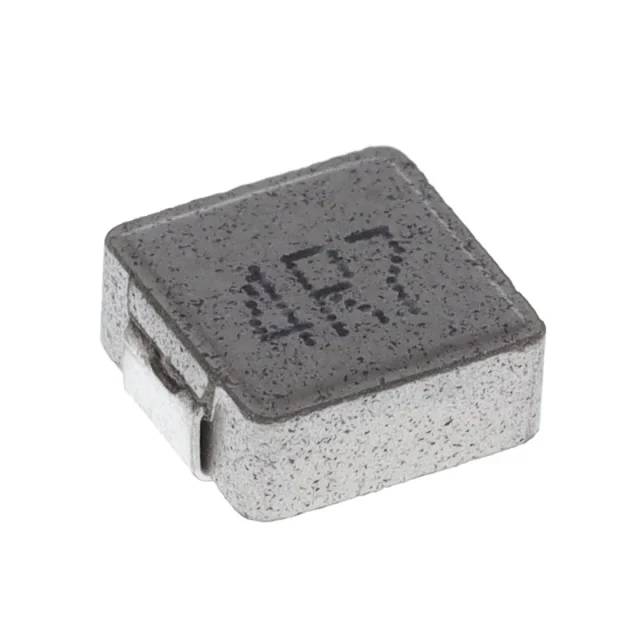

 SRP6530A-4R7M Bourns Inc. | 4.7 µH | 6 A | 40mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-3R3M Bourns Inc. | 3.3 µH | 8 A | 30mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-R10M Bourns Inc. | 100 nH | 34 A | 1.7mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-R68M Bourns Inc. | 680 nH | 17.5 A | 5.5mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |

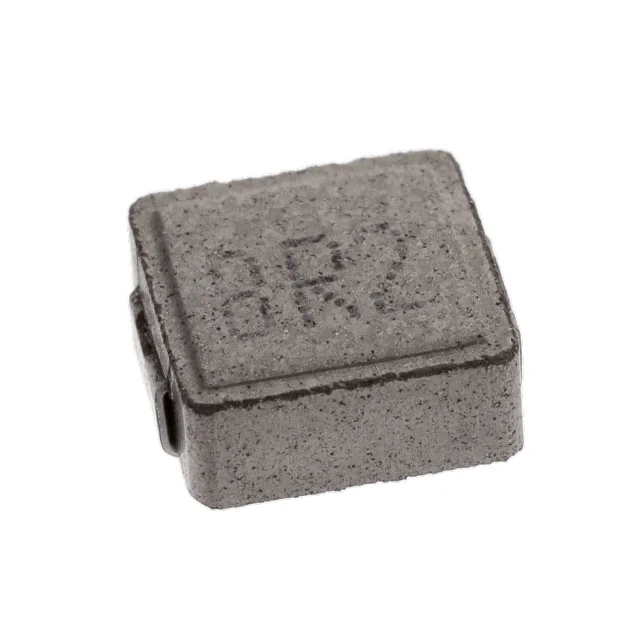

 SRP6530A-8R2M Bourns Inc. | 8.2 µH | 5 A | 68mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |

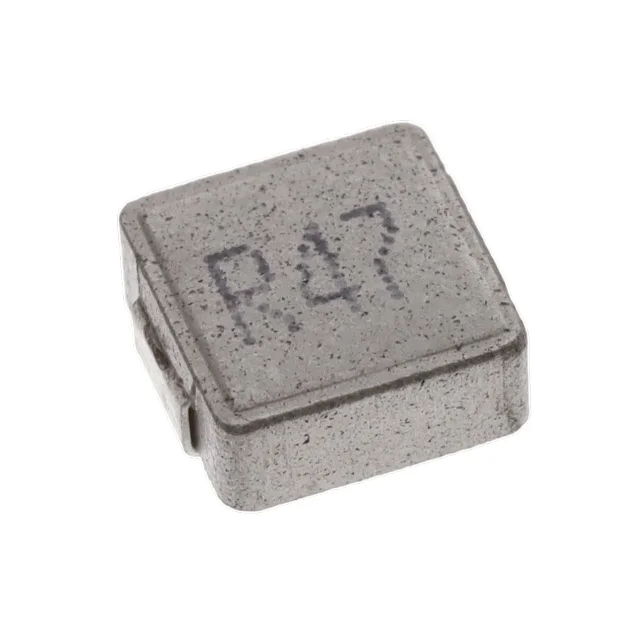

 SRP6530A-R47M Bourns Inc. | 470 nH | 21 A | 4.2mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |

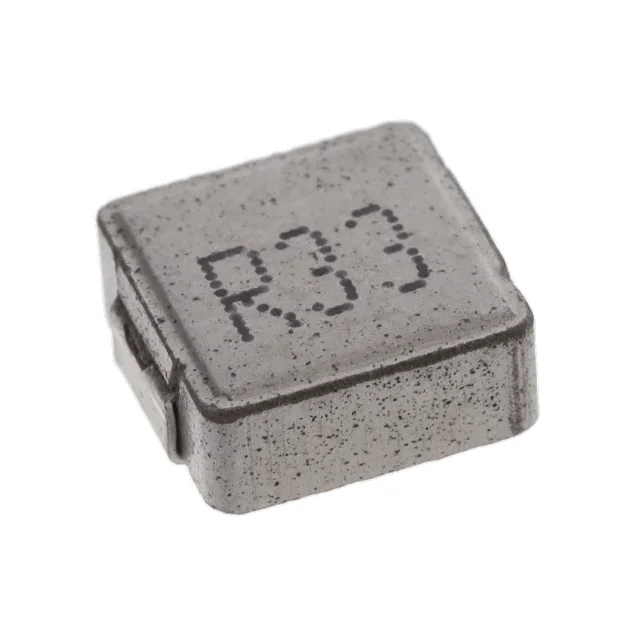

 SRP6530A-R33M Bourns Inc. | 330 nH | 21.5 A | 3.9mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-R56M Bourns Inc. | 560 nH | 18 A | 5.5mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |

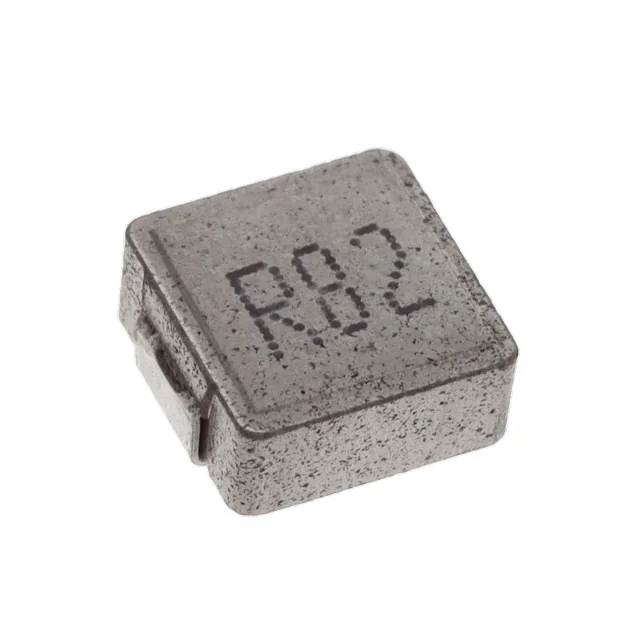

 SRP6530A-R82M Bourns Inc. | 820 nH | 14 A | 7.8mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |

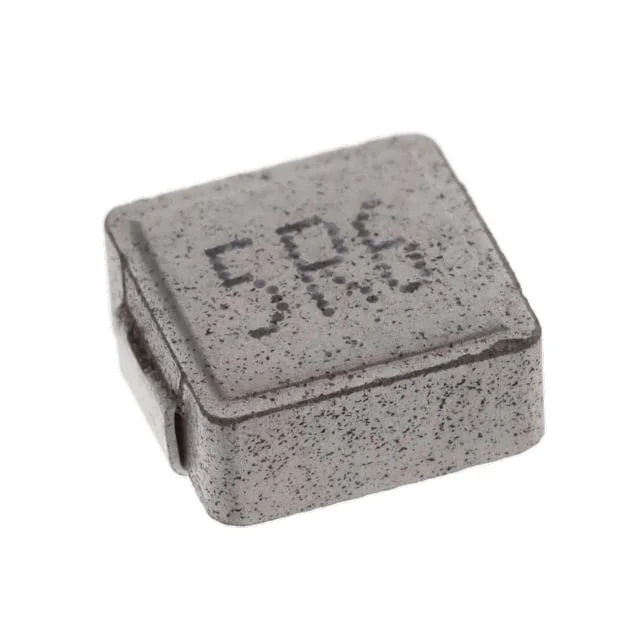

 SRP6530A-5R6M Bourns Inc. | 5.6 µH | 5.8 A | 60mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-2R2M Bourns Inc. | 2.2 µH | 10 A | 20mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-6R8M Bourns Inc. | 6.8 µH | 5.5 A | 60mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard | |
 SRP6530A-1R5M Bourns Inc. | 1.5 µH | 10 A | 15mOhm Max | 0.280" L x 0.260" W (7.10mm x 6.60mm) | Nonstandard |
