主要メーカーのインダクタのPDFデータシートを閲覧およびダウンロード。
| 製品 | インダクタンス | 定格電流 | 直流抵抗 | サイズ | パッケージ | アクション |
|---|---|---|---|---|---|---|

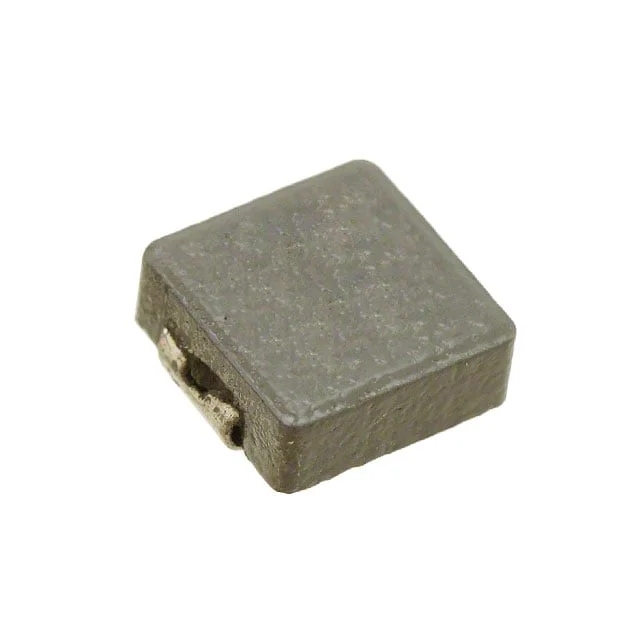

 74437346068 Würth Elektronik | 6.8 µH | 3.4 A | 60mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 2-SMD | |
 74437346033 Würth Elektronik | 3.3 µH | 5 A | 30mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 2-SMD | |
 74437349330 Würth Elektronik | 33 µH | 1.9 A | 200mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 2-SMD | |
 74437349033 Würth Elektronik | 3.3 µH | 6 A | 20.9mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 2-SMD | |
 74437349100 Würth Elektronik | 10 µH | 3.2 A | 69mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 2-SMD | |

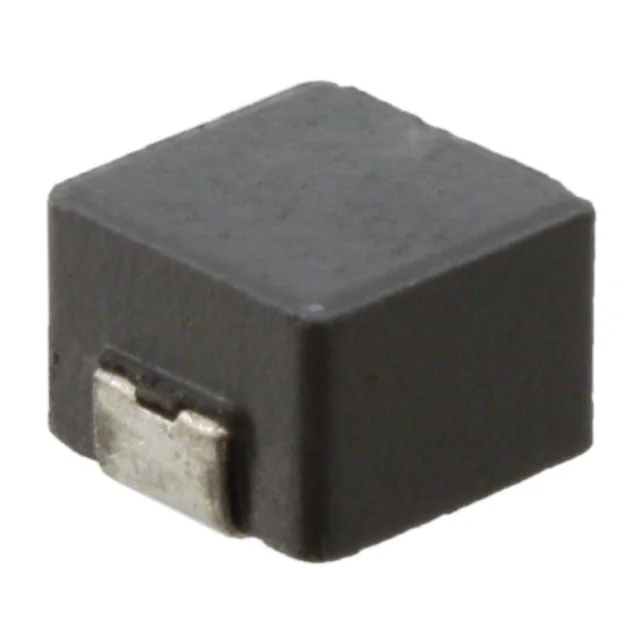

 74437349220 Würth Elektronik | 22 µH | 2.1 A | 170mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 2-SMD | |
 74437349680 Würth Elektronik | 68 µH | 1.25 A | 445mOhm Max | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 2-SMD | |
 74437349047 Würth Elektronik | 4.7 µH | 5 A | 30.8mOhm Max | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 2-SMD | |

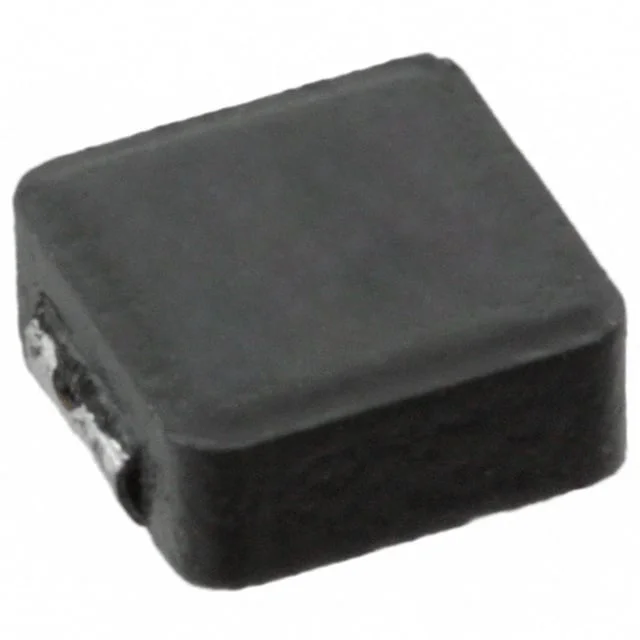

 74437324220 Würth Elektronik | 22 µH | 1 A | 500mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 74437324010 Würth Elektronik | 1 µH | 5 A | 27mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 74437324022 Würth Elektronik | 2.2 µH | 3.25 A | 61mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 74437324047 Würth Elektronik | 4.7 µH | 2.2 A | 105mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 74437324015 Würth Elektronik | 1.5 µH | 3.8 A | 42mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 74437324100 Würth Elektronik | 10 µH | 1.5 A | 243mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 74437324033 Würth Elektronik | 3.3 µH | 2.5 A | 76mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 744373240047 Würth Elektronik | 470 nH | 6.8 A | 14mOhm Max | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 2-SMD | |
 74437368100 Würth Elektronik | 10 µH | 5.2 A | 30mOhm Max | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 2-SMD | |
 74437368047 Würth Elektronik | 4.7 µH | 7 A | 15.5mOhm Max | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 2-SMD | |
 74437336100 Würth Elektronik | 10 µH | 2.4 A | 128mOhm Max | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 2-SMD | |
 744373965047 Würth Elektronik | 4.7 µH | 11 A | 8.4mOhm Max | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 2-SMD | |
 74437368033 Würth Elektronik | 3.3 µH | 8 A | 11.8mOhm Max | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 2-SMD | |
 74437368470 Würth Elektronik | 47 µH | 2.2 A | 167mOhm Max | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 2-SMD | |
 74437368068 Würth Elektronik | 6.8 µH | 6 A | 23.3mOhm Max | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 2-SMD | |
 74437368150 Würth Elektronik | 15 µH | 4.1 A | 45mOhm Max | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 2-SMD | |
 74437336010 Würth Elektronik | 1 µH | 7.3 A | 14mOhm Max | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 2-SMD |
