인덕터 데이터시트
주요 제조업체의 인덕터 PDF 데이터시트를 찾아보고 다운로드하세요.
시리즈: 8M
시리즈 표에서 등록된 사양을 비교하세요.
제품 속성
| 제품 | 인덕턴스 | 전류 | DCR | 크기 | 패키지 | 작업 |
|---|---|---|---|---|---|---|
 8M392KLF Gowanda | 39 µH | 83.5 mA | 6.8Ohm Max | - | Axial | |
 8M332K Gowanda | 33 µH | 95 mA | 5.2Ohm Max | - | Axial | |
 8M100KLF Gowanda | 100 nH | 895 mA | 130mOhm Max | - | Axial | |

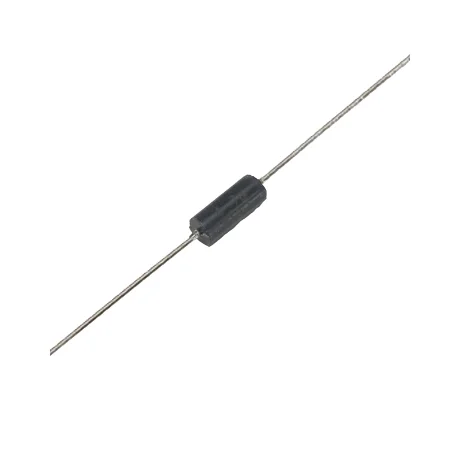

 8M391K Gowanda | 3.9 µH | 178 mA | 1.5Ohm Max | - | Axial | |
 8M392K Gowanda | 39 µH | 83.5 mA | 6.8Ohm Max | - | Axial | |
 8M390KLF Gowanda | 390 nH | 420 mA | 590mOhm Max | - | Axial | |
 8M332KLF Gowanda | 33 µH | 95 mA | 5.2Ohm Max | - | Axial | |
 8M471KLF Gowanda | 4.7 µH | 150 mA | 2.1Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M390K Gowanda | 390 nH | 420 mA | 590mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M471K Gowanda | 4.7 µH | 150 mA | 2.1Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M391KLF Gowanda | 3.9 µH | 178 mA | 1.5Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M100K Gowanda | 100 nH | 895 mA | 130mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M561K Gowanda | 5.6 µH | 130 mA | 2.8Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M222K Gowanda | 2.2 µH | 105 mA | 4.3Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M330K Gowanda | 330 nH | 460 mA | 490mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M562KLF Gowanda | 56 µH | 69 mA | 10Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M331K Gowanda | 3.3 µH | 198 mA | 1.2Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M220K Gowanda | 220 nH | 645 mA | 250mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M180KLF Gowanda | 180 nH | 705 mA | 210mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M560KLF Gowanda | 560 nH | 510 mA | 180mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M821K Gowanda | 8.2 µH | 104 mA | 4.4Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M270K Gowanda | 270 nH | 525 mA | 380mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M680KLF Gowanda | 680 nH | 485 mA | 200mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M270KLF Gowanda | 270 nH | 525 mA | 380mOhm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial | |
 8M103K Gowanda | 100 µH | 52 mA | 17.5Ohm Max | 0.078" Dia x 0.200" L (1.98mm x 5.08mm) | Axial |
