인덕터 데이터시트
주요 제조업체의 인덕터 PDF 데이터시트를 찾아보고 다운로드하세요.
시리즈: BR, C Type
시리즈 표에서 등록된 사양을 비교하세요.
제품 속성
| 제품 | 인덕턴스 | 전류 | DCR | 크기 | 패키지 | 작업 |
|---|---|---|---|---|---|---|
 BRC1608TR77M Taiyo Yuden | 770 nH | 660 mA | 110mOhm | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 BRC2012T1R0M Taiyo Yuden | 1 µH | 1.4 A | 78mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 BRC2012T2R2MD Taiyo Yuden | 2.2 µH | 1 A | 143mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 BRC2012T4R7MD Taiyo Yuden | 4.7 µH | 600 mA | 344.5mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 BRC2016T101K Taiyo Yuden | 100 µH | 170 mA | 4.42Ohm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 BRC2016T100K Taiyo Yuden | 10 µH | 520 mA | 520mOhm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |

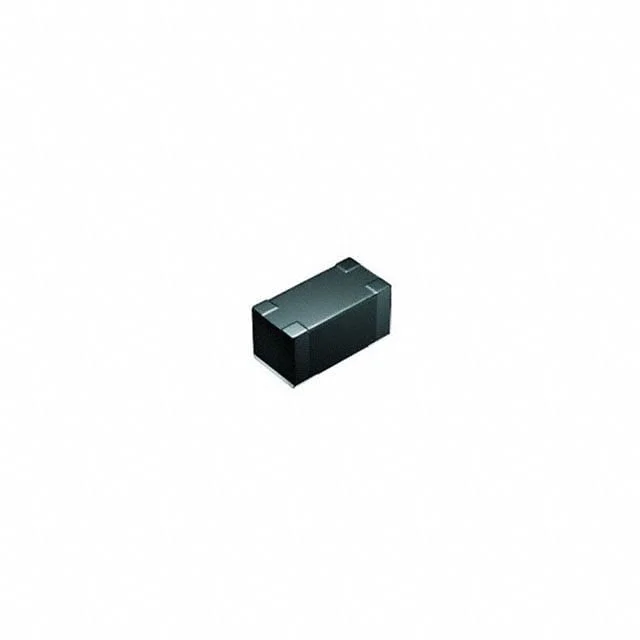

 BRC2012T3R3MD Taiyo Yuden | 3.3 µH | 870 mA | 221mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 BRC2518T220K Taiyo Yuden | 22 µH | 490 mA | 560mOhm | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 1007 (2518 Metric) | |

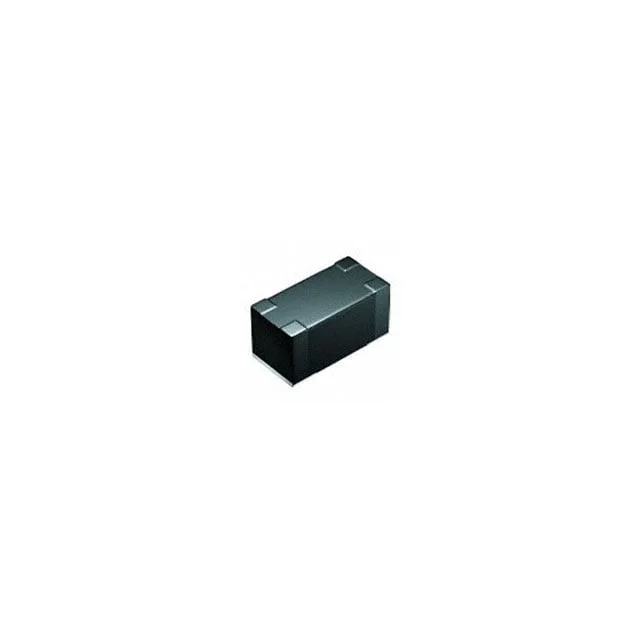

 BRC2518T100K Taiyo Yuden | 10 µH | 610 mA | 455mOhm Max | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 1007 (2518 Metric) | |
 BRC1608T1R0M Taiyo Yuden | 1 µH | 520 mA | 234mOhm Max | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |

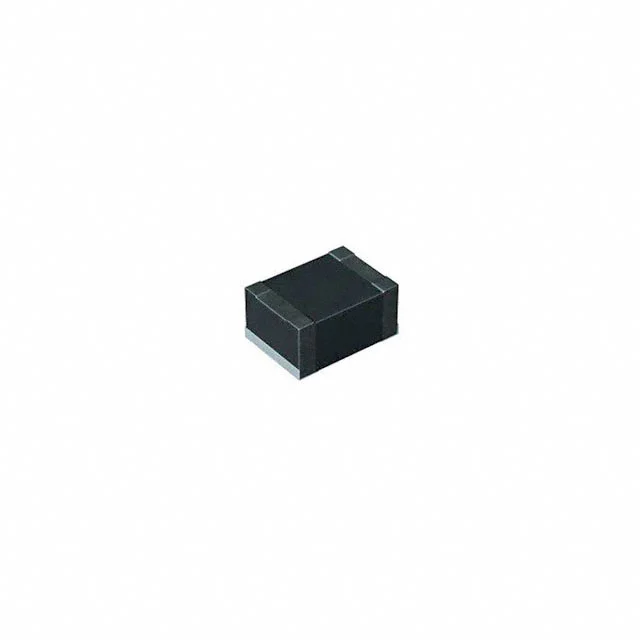

 BRC1608TR50M6 Taiyo Yuden | 500 nH | 1.05 A | 90mOhm | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |

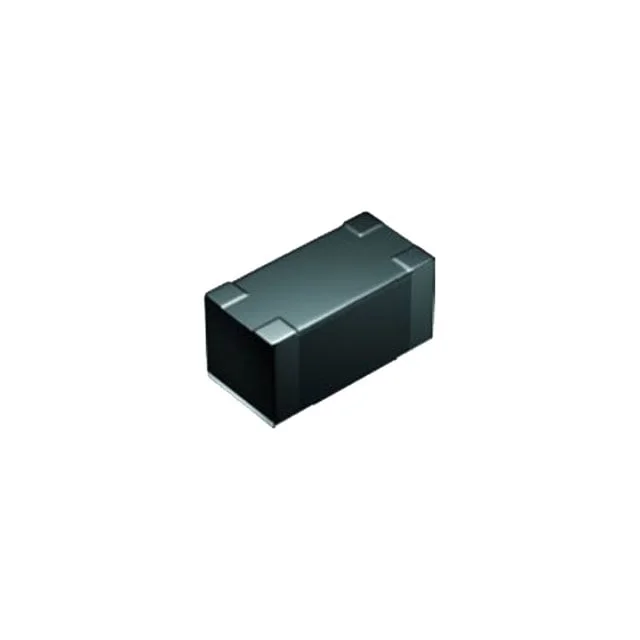

 BRC2016T330K Taiyo Yuden | 33 µH | 240 mA | 2.21Ohm Max | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0806 (2016 Metric) | |
 BRC2012T1R5MD Taiyo Yuden | 1.5 µH | 1.1 A | 117mOhm Max | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0805 (2012 Metric) | |
 BRC2518T3R3M Taiyo Yuden | 3.3 µH | 860 mA | 228mOhm Max | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 1007 (2518 Metric) | |
 BRC1608TR43M6 Taiyo Yuden | 430 nH | 1.1 A | 82mOhm | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) | |
 BRC1608TR45M Taiyo Yuden | 450 nH | 800 mA | 90mOhm | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0603 (1608 Metric) |
