인덕터 데이터시트

주요 제조업체의 인덕터 PDF 데이터시트를 찾아보고 다운로드하세요.

제품 속성

전체 Delevan (24873)Pulse Electronics (17770)Bourns Inc. (10998)Gowanda (8081)Taiyo Yuden (8063)TDK (7746)Abracon (6926)Coilcraft (5980)

PF0560.154NLT

Pulse Electronics

150 µH• 850 mANonstandard

PF0560.382NLT

Pulse Electronics

3.8 µH• 5.5 ANonstandard

PF0560.252NLT

Pulse Electronics

2.5 µH• 6.1 ANonstandard

PF0560.224NLT

Pulse Electronics

220 µH• 700 mANonstandard

PF0560.152NLT

Pulse Electronics

1.5 µH• 6.5 ANonstandard

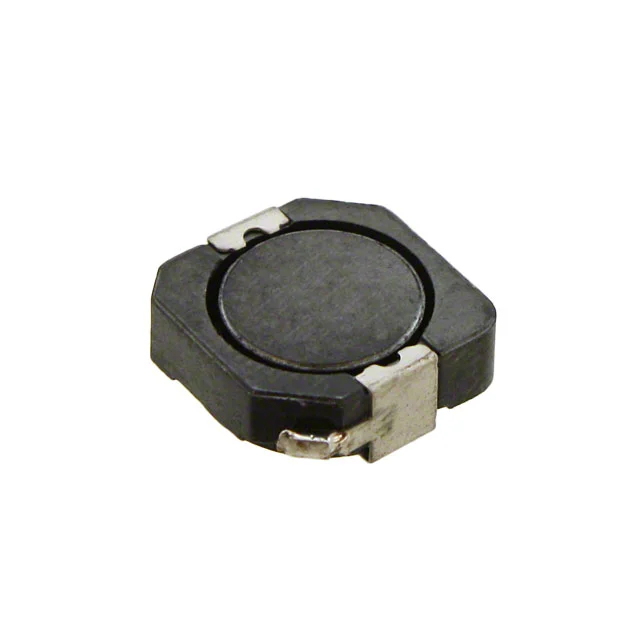

PF0560.223NLT

Pulse Electronics

22 µH• 2.5 ANonstandard

PF0560.702NLT

Pulse Electronics

7 µH• 4.5 ANonstandard

PF0560.334NLT

Pulse Electronics

330 µH• 520 mANonstandard

PF0560.473NLT

Pulse Electronics

47 µH• 1.9 ANonstandard

PF0560.223NL

Pulse Electronics

22 µH• 2.5 ANonstandard

PF0560.683NLT

Pulse Electronics

68 µH• 1.42 ANonstandard

PF0560.153NLT

Pulse Electronics

15 µH• 3.1 ANonstandard

PF0560.104NLT

Pulse Electronics

100 µH• 1.25 ANonstandard

PF0560.522NLT

Pulse Electronics

5.2 µH• 5.4 ANonstandard

PF0560.153NL

Pulse Electronics

15 µH• 3.1 ANonstandard

PF0560.382NL

Pulse Electronics

3.8 µH• 5.5 ANonstandard

PF0560.473NL

Pulse Electronics

47 µH• 1.9 ANonstandard

PF0560.104NL

Pulse Electronics

100 µH• 1.25 ANonstandard

PF0560.683NL

Pulse Electronics

68 µH• 1.42 ANonstandard

PF0560.702NL

Pulse Electronics

7 µH• 4.5 ANonstandard

PF0560.152NL

Pulse Electronics

1.5 µH• 6.5 ANonstandard

PF0560.252NL

Pulse Electronics

2.5 µH• 6.1 ANonstandard

PF0560.333NL

Pulse Electronics

33 µH• 2.2 ANonstandard

PF0560.333NLT

Pulse Electronics

33 µH• 2.2 ANonstandard

PF0560.103NLT

Pulse Electronics

10 µH• 3.8 ANonstandard

제품	인덕턴스	전류	DCR	크기	패키지	작업
PF0560.154NLT Pulse Electronics	150 µH	850 mA	506mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.382NLT Pulse Electronics	3.8 µH	5.5 A	13mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.252NLT Pulse Electronics	2.5 µH	6.1 A	10.5mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.224NLT Pulse Electronics	220 µH	700 mA	756mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.152NLT Pulse Electronics	1.5 µH	6.5 A	8.1mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.223NLT Pulse Electronics	22 µH	2.5 A	73mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.702NLT Pulse Electronics	7 µH	4.5 A	27mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.334NLT Pulse Electronics	330 µH	520 mA	1.09Ohm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.473NLT Pulse Electronics	47 µH	1.9 A	128mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.223NL Pulse Electronics	22 µH	2.5 A	73mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.683NLT Pulse Electronics	68 µH	1.42 A	213mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.153NLT Pulse Electronics	15 µH	3.1 A	50mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.104NLT Pulse Electronics	100 µH	1.25 A	304mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.522NLT Pulse Electronics	5.2 µH	5.4 A	22mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.153NL Pulse Electronics	15 µH	3.1 A	50mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.382NL Pulse Electronics	3.8 µH	5.5 A	13mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.473NL Pulse Electronics	47 µH	1.9 A	128mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.104NL Pulse Electronics	100 µH	1.25 A	304mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.683NL Pulse Electronics	68 µH	1.42 A	213mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.702NL Pulse Electronics	7 µH	4.5 A	27mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.152NL Pulse Electronics	1.5 µH	6.5 A	8.1mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.252NL Pulse Electronics	2.5 µH	6.1 A	10.5mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.333NL Pulse Electronics	33 µH	2.2 A	93mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.333NLT Pulse Electronics	33 µH	2.2 A	93mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
PF0560.103NLT Pulse Electronics	10 µH	3.8 A	35mOhm Max	0.409" L x 0.406" W (10.40mm x 10.30mm)	Nonstandard	보기 PDF
